Vacon 100 flow User Manual

Ethernet installation vacon • 8
24-hour support +358 (0)201 212 575 • Email: vacon@vacon.com
3
3. ETHERNET INSTALLATION
3.1 Installation in VACON® 100 INDUSTRIAL and FLOW

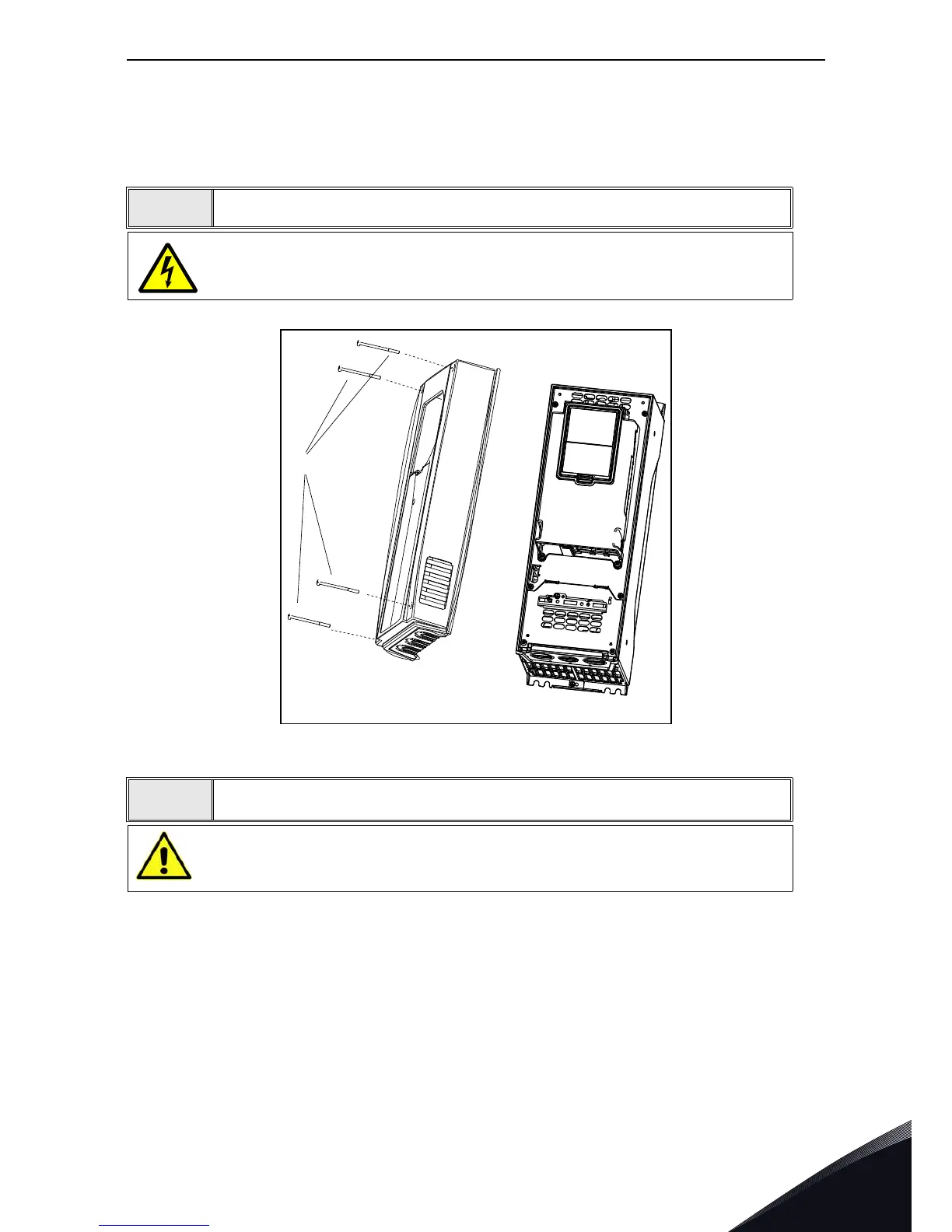

Figure 1.
1
Open the cover of the AC drive.
The relay outputs and other I/O-terminals may have a dangerous control voltage
present even when the AC drive is disconnected from mains.
2
Locate the components that you will need on the AC drive to connect and run the
Ethernet cables.
Be sure not to plug the Ethernet cable to the terminal under the keypad! This
might harm your personal computer.
M4x55
9174.emf
13006.emf

Vacon 100 flow Specifications

General

Protection class	IP20
Communication interface	RS-485
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +70°C
Ambient temperature	-10°C to +40°C
Control method	Sensorless vector control
Communication protocols	CANopen
Approvals	CE, UL
I/O	2 analog inputs
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Frequency range	0 Hz to 400 Hz
Humidity	5% to 95%, non-condensing
Voltage range	208-240 V
