Vacon 100 flow User Manual

3
vacon • 9 Ethernet installation
Tel. +358 (0) 201 2121 • Fax +358 (0)201 212 205
3.2 Prepare for use through Ethernet

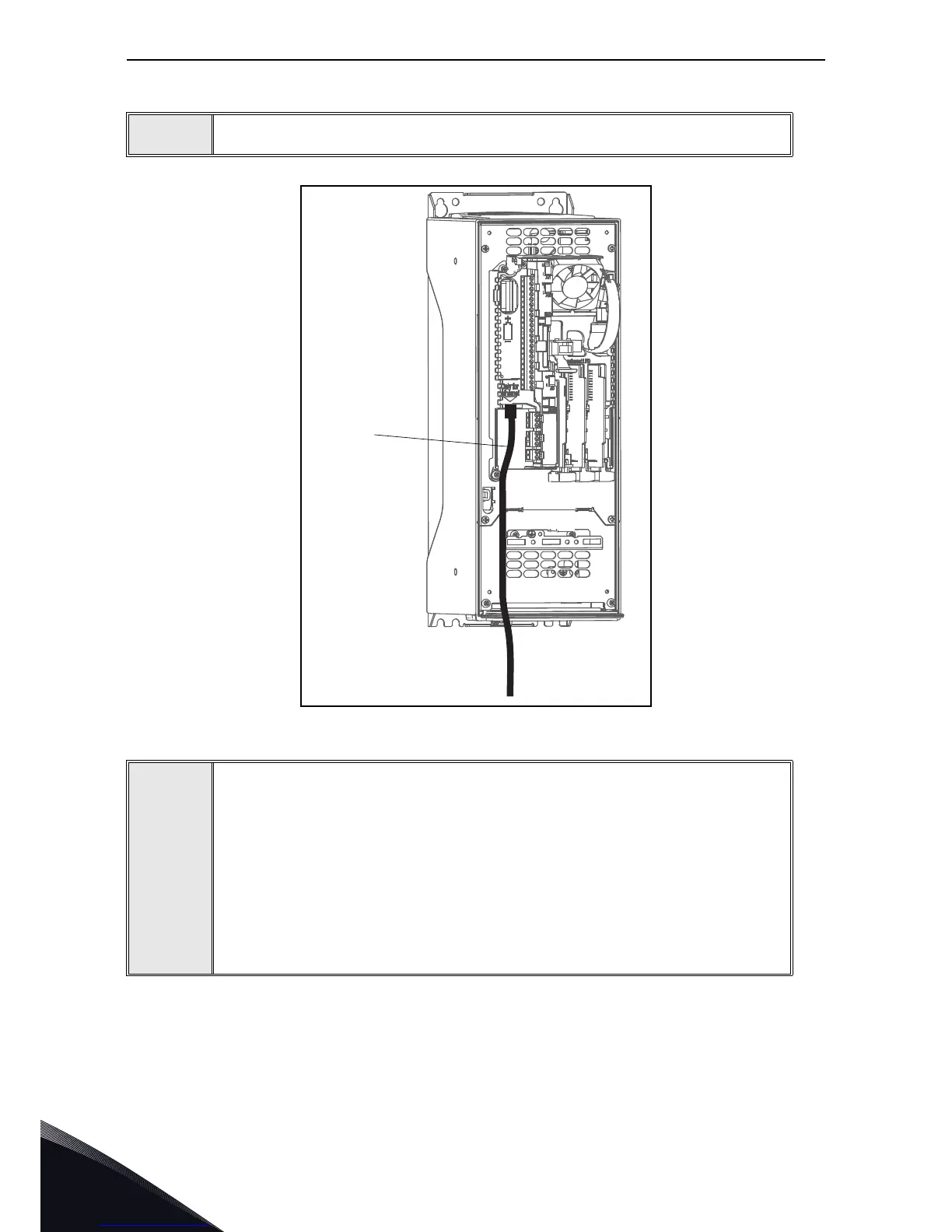

Figure 2.
3
Connect the Ethernet cable to its terminal and run the cable through the conduit
as shown in Figure 2.
4
Protection class IP21: Cut free the opening on the AC drive cover for the Ether-
net cable.
Protection class IP54: Cut the rubber grommets open to slide the cables
through. Should the grommets fold in while inserting the cable, just draw the
cable back a bit to straighten the grommets up. Do not cut the grommet open-
ings wider than what is necessary for the cables you are using.
IMPORTANT: To meet the requirements of the enclosure class IP54, the connec-
tion between the grommet and the cable must be tight. Therefore, lead the first
bit of the cable out of the grommet straight before letting it bend. If this is not
possible,
the tightness of the connection must be ensured with insulation tape or a
cable
tie .
Ethernet
cable
9316.emf

Vacon 100 flow Specifications

General

Protection class	IP20
Communication interface	RS-485
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +70°C
Ambient temperature	-10°C to +40°C
Control method	Sensorless vector control
Communication protocols	CANopen
Approvals	CE, UL
I/O	2 analog inputs
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Frequency range	0 Hz to 400 Hz
Humidity	5% to 95%, non-condensing
Voltage range	208-240 V
