Connecting a Sony or Panasonic HDMI Camera
999-9530-000/001/009

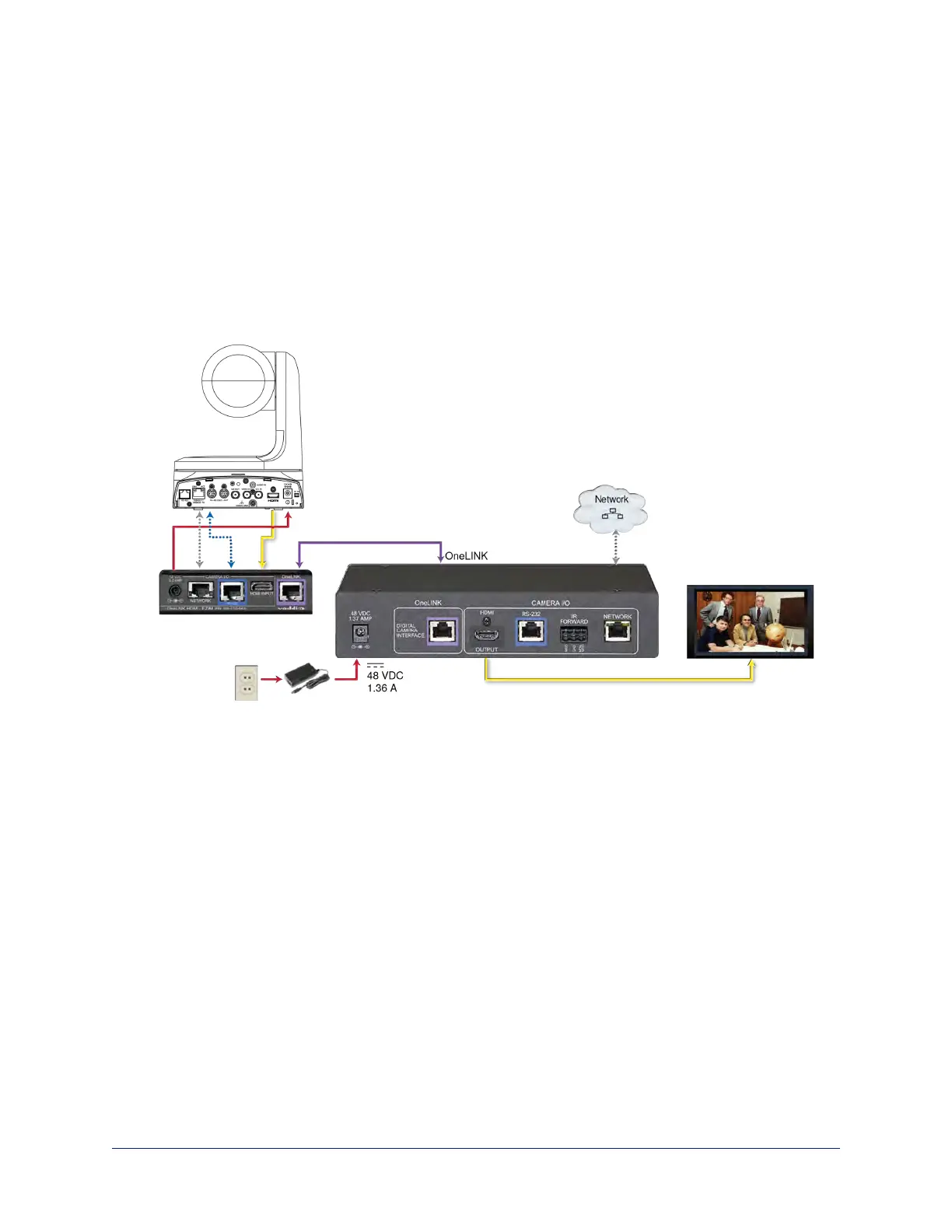

In these diagrams, the OneLINK device extends power and control to a Sony or Panasonic HDMI camera.
The OneLINK device provides HDMI video to the connected display.
Items in this diagram:
n OneLINK HDMI receiver and OneLINK EZIM
n Power supply and AC cord set
n Camera with cables (not included)
n HDMI display and cable (not included)
Panasonic AW-HE130 Camera
27
Integrator's Complete Guide to the OneLINK HDMI Camera Extension
