VADDIO OneLINK HDMI - Connecting a Roboshot HDMI Camera and Polycom Codec

Connecting a RoboSHOT HDMI Camera and Polycom Codec
999-9540-000/001/009

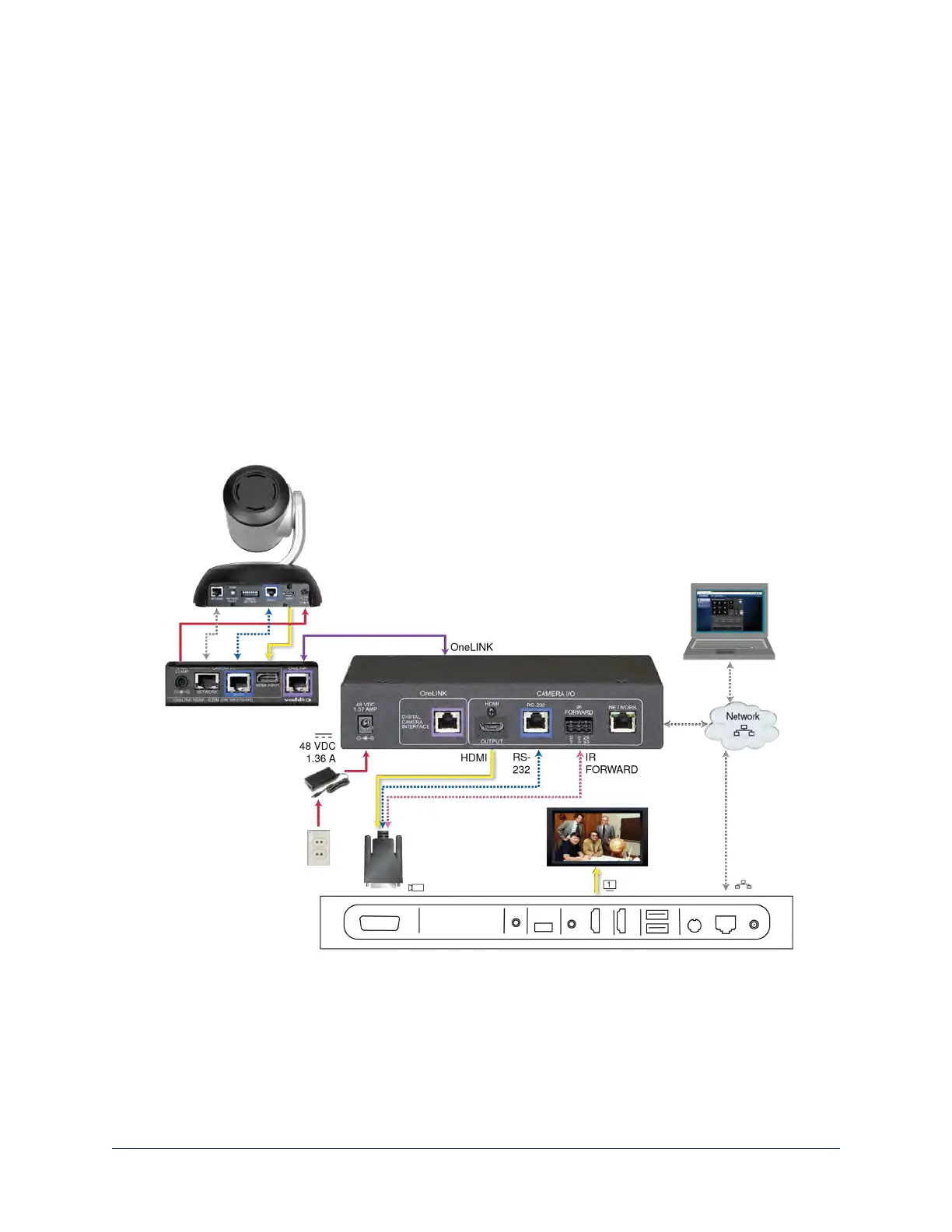

In these diagrams, the OneLINK device extends network connectivity, power, and control to a RoboSHOT
HDMI camera, and connects it to a Polycom RealPresence Group Series codec. The codec provides
HDMI video to the connected display.
Items in these diagrams:
n OneLINK HDMI receiver and OneLINK EZIM
n Power supply with ACcord set
n RoboSHOT 12 HDMI camera (not included)
n Polycom RealPresence Group Series codec (not included)
n Codec-side fan-out cable, bare wires terminated with 3-position, 5mm Euro-style connector
n HDMI display and HDMI cable (not included)
n Laptop providing access to the camera's web interface (not included)
n Cat-5e cables for OneLINK and network connections (not included)
RoboSHOT HDMI Camera and Polycom RealPresence Group 310 Codec
The Group 500 codec looks very similar and connects in the same way.
