VADDIO OneLINK HDMI - Connections for HDMI Cameras Used with Codecs; Kits for HDMI Cameras Used with Codecs

Connections for HDMI Cameras Used with Codecs
In this configuration, the OneLINK HDMI extends network connectivity, power, and control to an HDMI
camera, and brings HDMI video from the camera to the codec. The codec may be connected to the
OneLINK device directly via RS-232, or they may communicate over the IPnetwork, depending on the
codec.
If an IP stream is available from the camera, the OneLINK device passes it to the network. IP streaming
resolutions up to 2160p/30 are supported. HDMI output resolution and streaming parameters (including
resolution) are configured on the camera, not the OneLINK device.
Kits for HDMI Cameras Used with Codecs

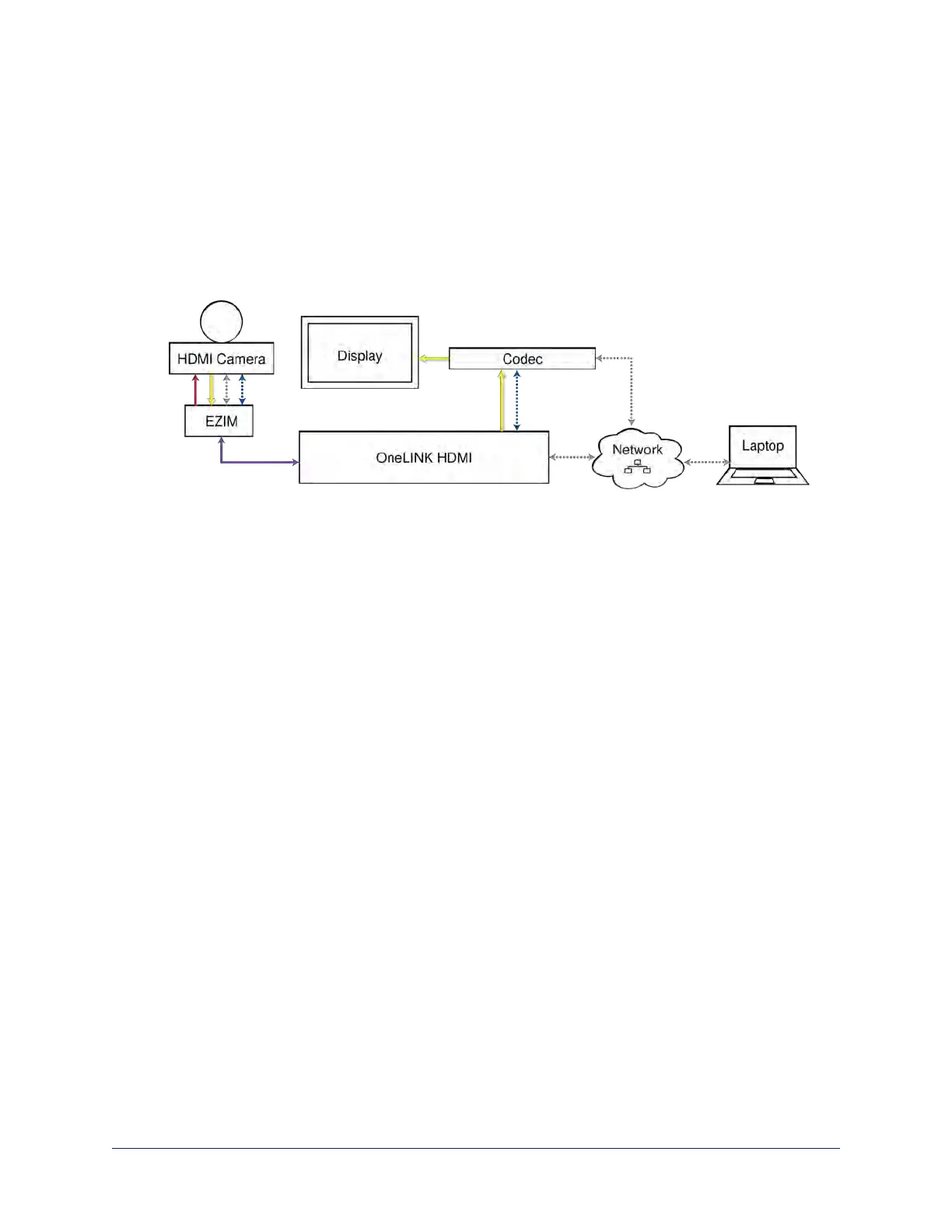

This block diagram applies to:
n OneLINK HDMI for Polycom Cameras with Polycom Codecs, 999-9520-000/001/009 – compatible with
Polycom EagleEye IV camera and Polycom RealPresence Group Series codecs.
n OneLINK HDMI for RoboSHOT HDMI Cameras with Polycom Codecs, 999-9540-000/001/009 –
compatible with RoboSHOT HDMI cameras and Polycom RealPresence Group Series codecs.
n OneLINK HDMI for Cisco Cameras with Cisco Codecs, 999-9660-000/001/009 – compatible with
Cisco Precision series cameras and Cisco C20, C40, C60, SX20, and SX80 codecs.
n OneLINK HDMI for RoboSHOT HDMI Cameras with Cisco Codecs, 999-9570-000/001/009 –
Compatible with RoboSHOT HDMI cameras and Cisco C20, C40, C60, SX20, and SX80 codecs.
