Connections for HDMI Cameras
In this configuration, the OneLINK HDMI extends network connectivity, power, and control to an HDMI
camera, and brings HDMI video from the camera to a display. The camera can optionally be controlled by a
camera controller on an RS-232 serial connection to the OneLINK HDMI or over the network, depending on
the controller.
If an IP stream is available from the camera, the OneLINK device passes it to the network. IP streaming
resolutions up to 2160p/30 are supported. HDMI output resolution and streaming parameters (including
resolution) are configured on the camera, not the OneLINK device.
Kits for HDMI Cameras

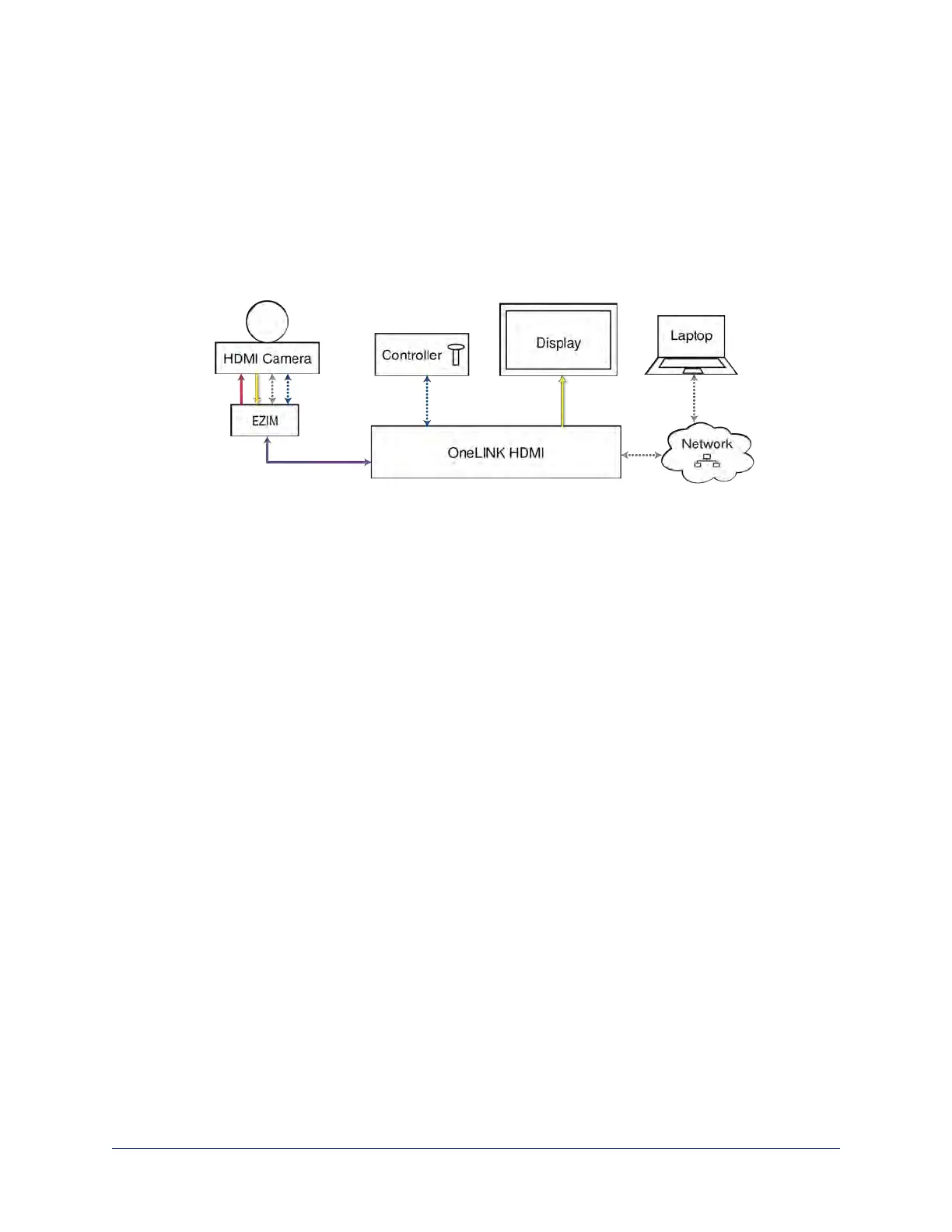

This block diagram applies to:
n OneLINK HDMI camera extension for Polycom cameras with Polycom Codecs, 999-9520-
000/001/009, when used without a codec – compatible with Polycom EagleEye IV camera.
n OneLINK HDMI camera extension for Sony and Panasonic Cameras, 999-9530-000/001/009 –
compatible with Panasonic HE-series, Sony EVI-D series, and Sony BRC-H series cameras.
n OneLINK HDMI camera extension for Cisco Cameras with Cisco Codecs, 999-9660-000/001/009,
when used without a codec – compatible with Cisco Precision series cameras.
n OneLINK HDMI camera extension for RoboSHOT HDMICameras, 999-9590-000/001/009
