4. Open transmitter/receiver head and remove end plug, use wrench
size 13 mm.

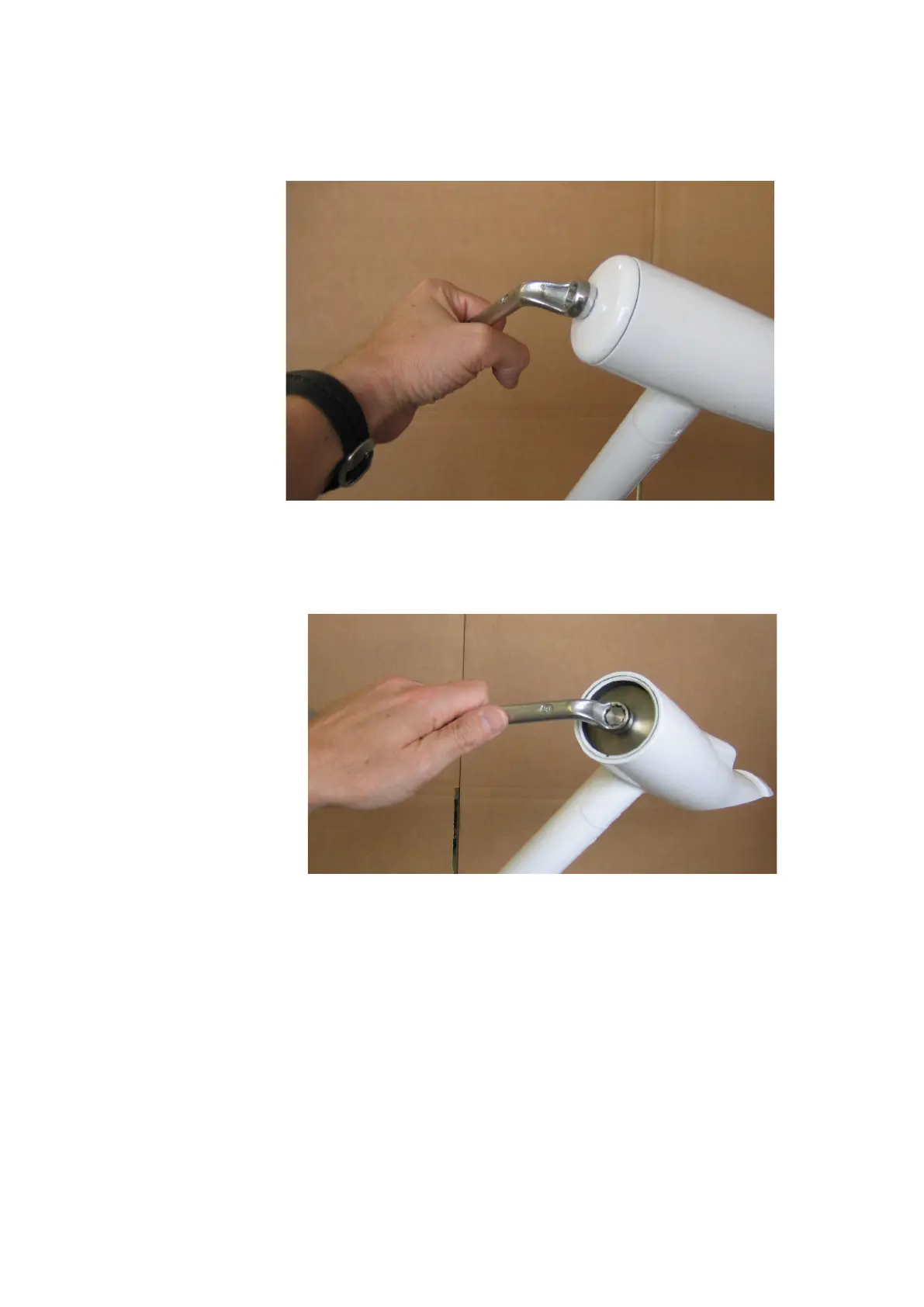

Figure 51 End Plug Removal (Shown for Transmitter)
5. Unlock transmitter/receiver module.
- Remove corresponding module retainer.
Figure 52 Module Retainer Removal (Shown for
Transmitter)
6. Screw the opening tool (Vaisala item DRW011133) into the rear
plate of the transmitter/receiver module.
7. Pull the receiver/transmitter module carefully out of the head.
- Push the control cable from the center compartment side and
pull the module further out until access to the control cable
connector is possible. (Pull the receiver/transmitter module from
the optics head while simultaneously feeding in the control
cable).
- Receiver/Transmitter module is approximately 50% pulled out.
