Letter E and marking
groove at front end

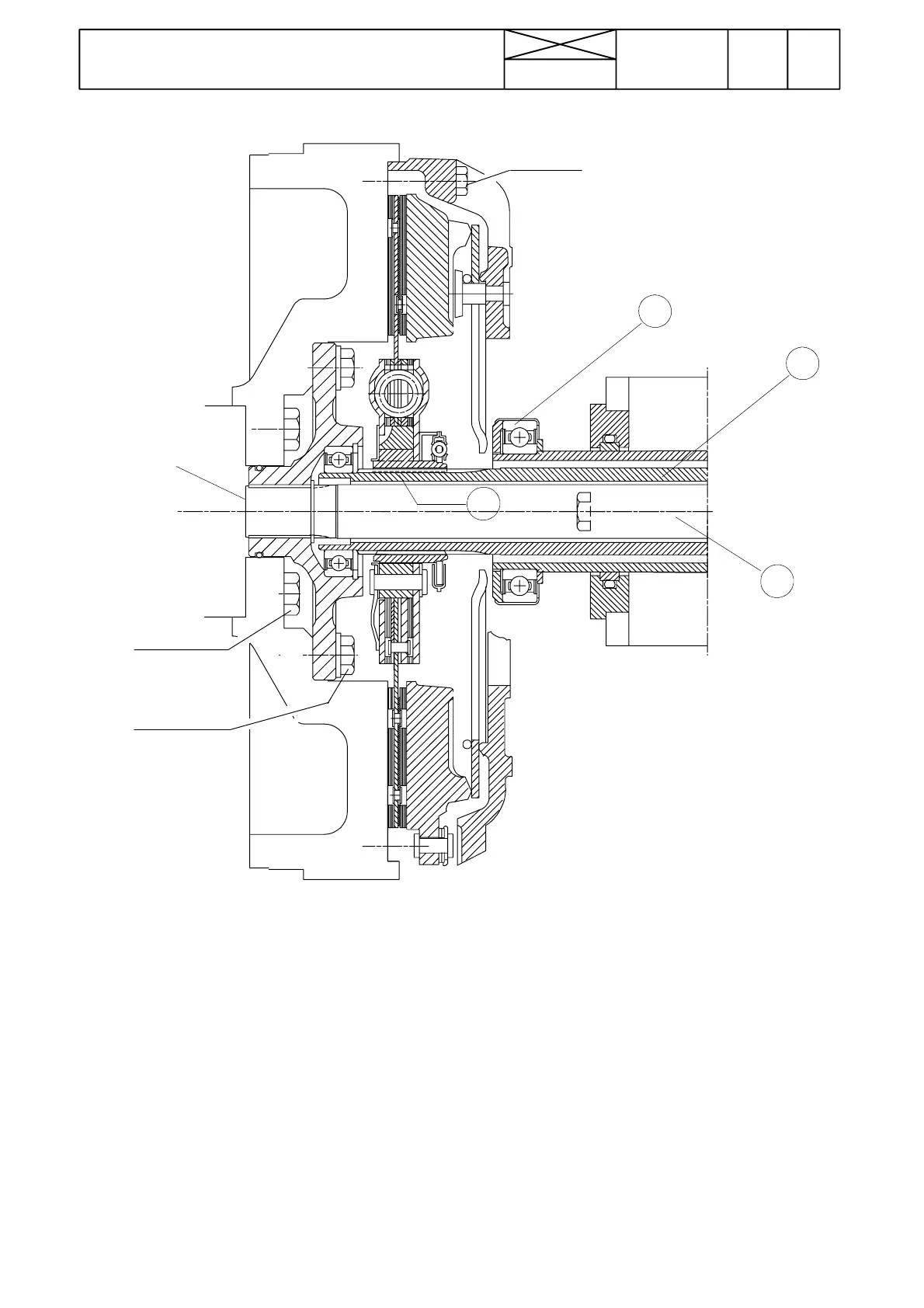

Figure 2. Clutch assembly
1. Clutch release bearing
2. Clutch shaft
3. Pump drive shaft
4. Pressure---resistant grease on splines
Note! The circlip at the pump drive shaft front end has been removed. The new drive shaft is fitted so that the end which
has a groove must be turned to the engine side. Pump drive shafts for tractors 8200 ---8400 have also letter E at the front
end of the shaft. Spare part shafts have both the groove and the letter. If you fit a new pump drive shaft onto the earlier
tractors, check if th ere i s a cavity (reliever) at the rear end of the crankshaft. If it i s there, use a meta l pla te to prevent the
pump drive sh a ft from moving too much forwards.
Note! On transmission 650 the pump drive shaft diameter is 30 mm. On other transmissions (300, 460) 28 mm. On trans-
mission 650 the hollow clutch shaft is shorter on machines, which have a reinforced DPS---gear.
636
Model Code Page
41. Clutch
15. 5. 1996
6000--8750 410 4
1. 1. 1994
21---25 Nm
40---50 Nm
120 Nm
1
2
3
4
