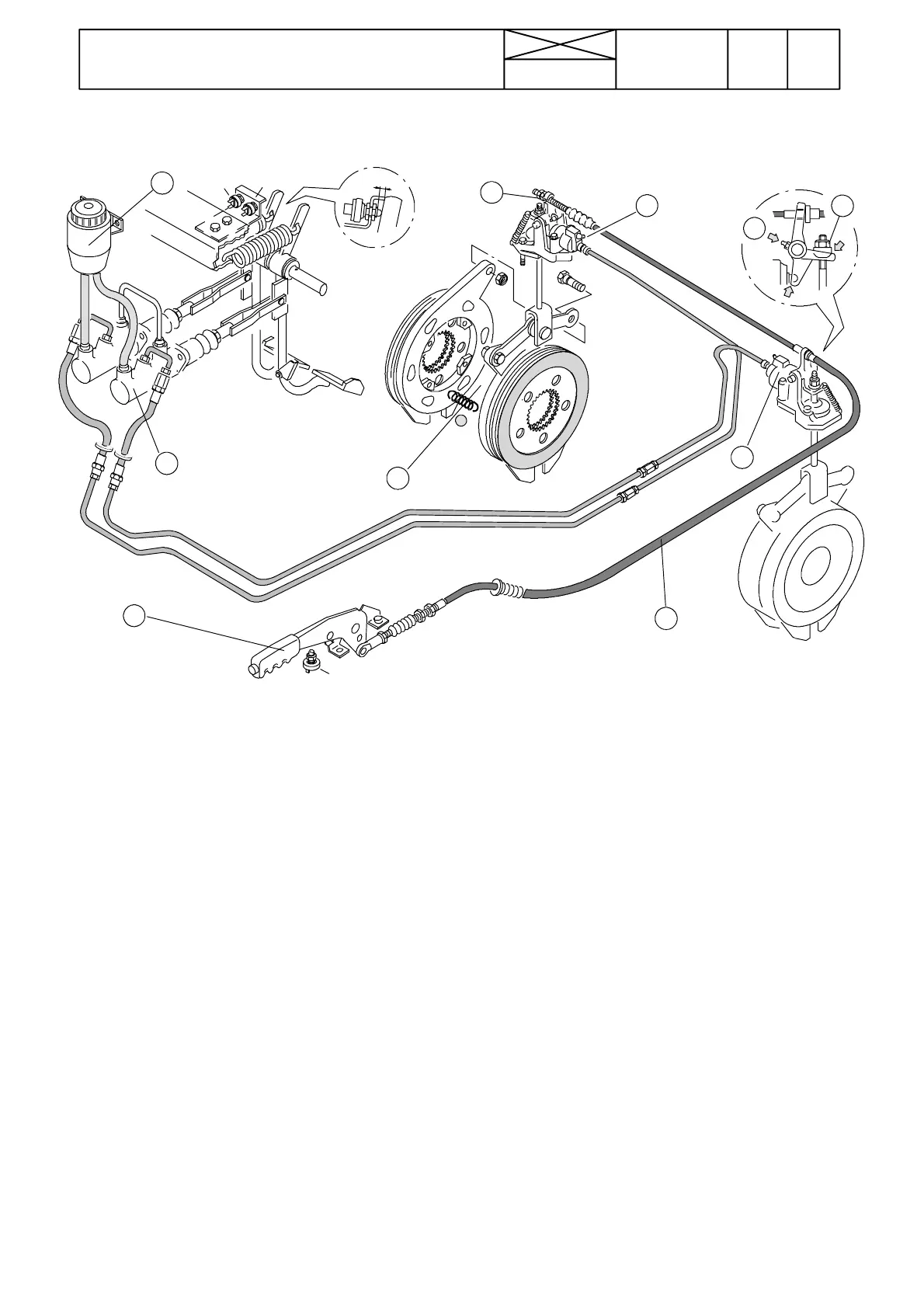

Figure 1. Brake mechanism.
1. Service brakes adjusting nut.
2. Parking brake adjusting nut.
3. Grease nipple.
4. Bleeding nipple.
5. Brake fluid reservoir.
6. Master cylinders ( 2 pcs).
7. Brake cylinder (2 pcs).
8. Parking brake cable.
9. Brake mechanism (in rear axle housing). In 8350 ---8950Hi from chassis no. L32106 --- th e mechanism i s
different.
10. Parking brake lever. In HiTech ---models the parking brake mechanism is different, see pages 521/2 ---3.
S10 = switch for RH side brake light.
S20 = switch for LH side brake light.
S15 = switch for parking brake warning light (different in HiTech --- models).
228
Model Code Page
51. Brake system
1. 9. 2002
6000--8950
510 2
8. 11. 1990
Brakes, des cription
S20S10
S15
1
8mm
3
2
4
7
8
9
6
5
10
Service brakes are wet multi---disc brakes fitted in the rear
axle housing. Service brakes are controlled hydraulically by
means of the brake pedals. When the brake pedals are
pressed, the 4WD engages causing brake action also on the
front wheels.
Brake pedals can be used separately as steering brakes or
they can be latched together.
Parking brake hand lever acts mechanically on the foot
brakes (not HiTech---models). The brakes can be adjusted
by means of the adjusting nuts. In HiTech---models the
parking brake is controlled electro---hydraulically (see
pages 521/2---3).
As an optional equipment, the brake valve for a trailer is
available. Also pressure---air brakes for trailer is available
as an option.
