13-3. Typical Transformer Connection to ATRT-03/03A/03B

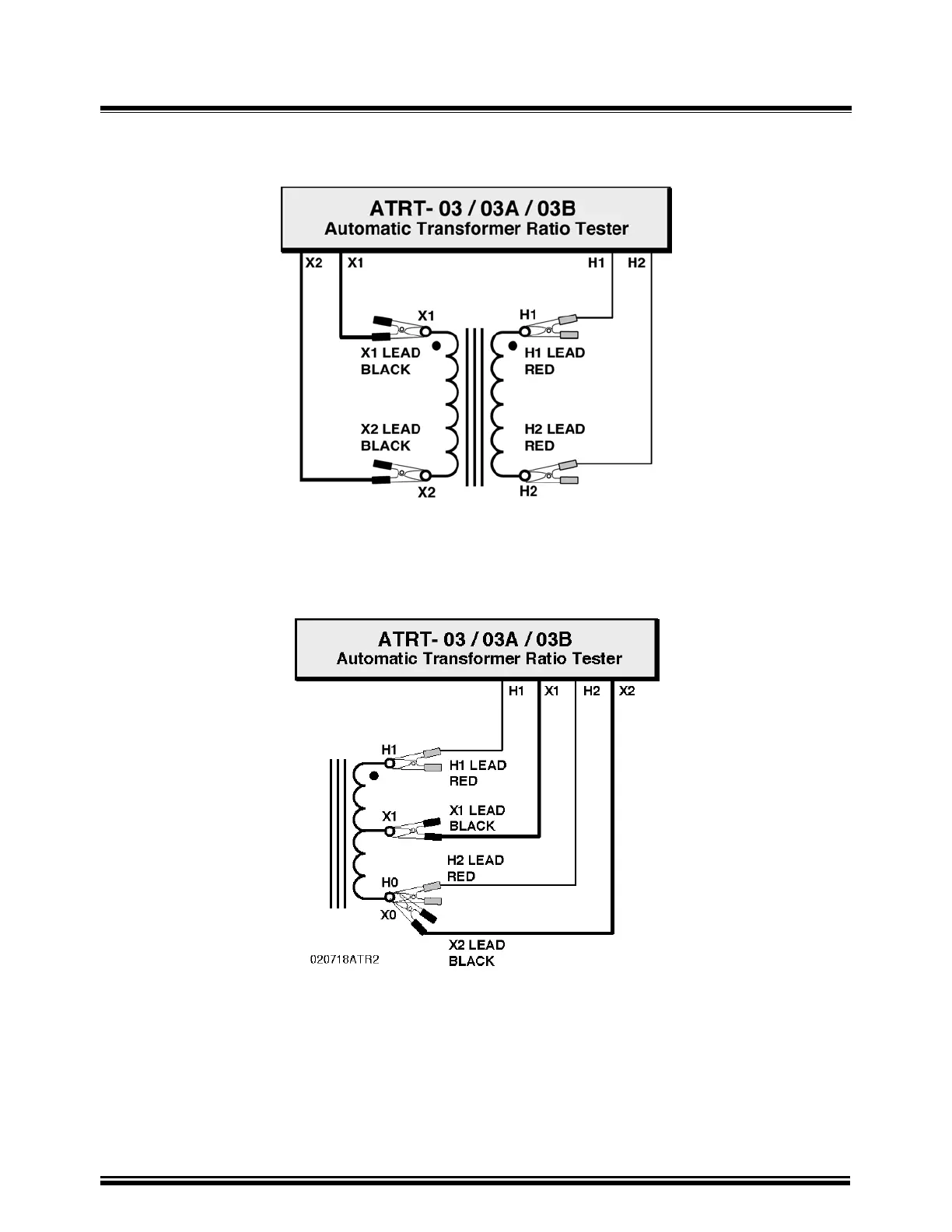

Figure 13A. Typical Connection for Single-Phase Transformer
Figure 13B. Typical Connection for Single-Phase Auto Transformer
