Model ATRT-03 (v) Operating Instruction
75
22-4. Test Result Print Out Using Test Plan

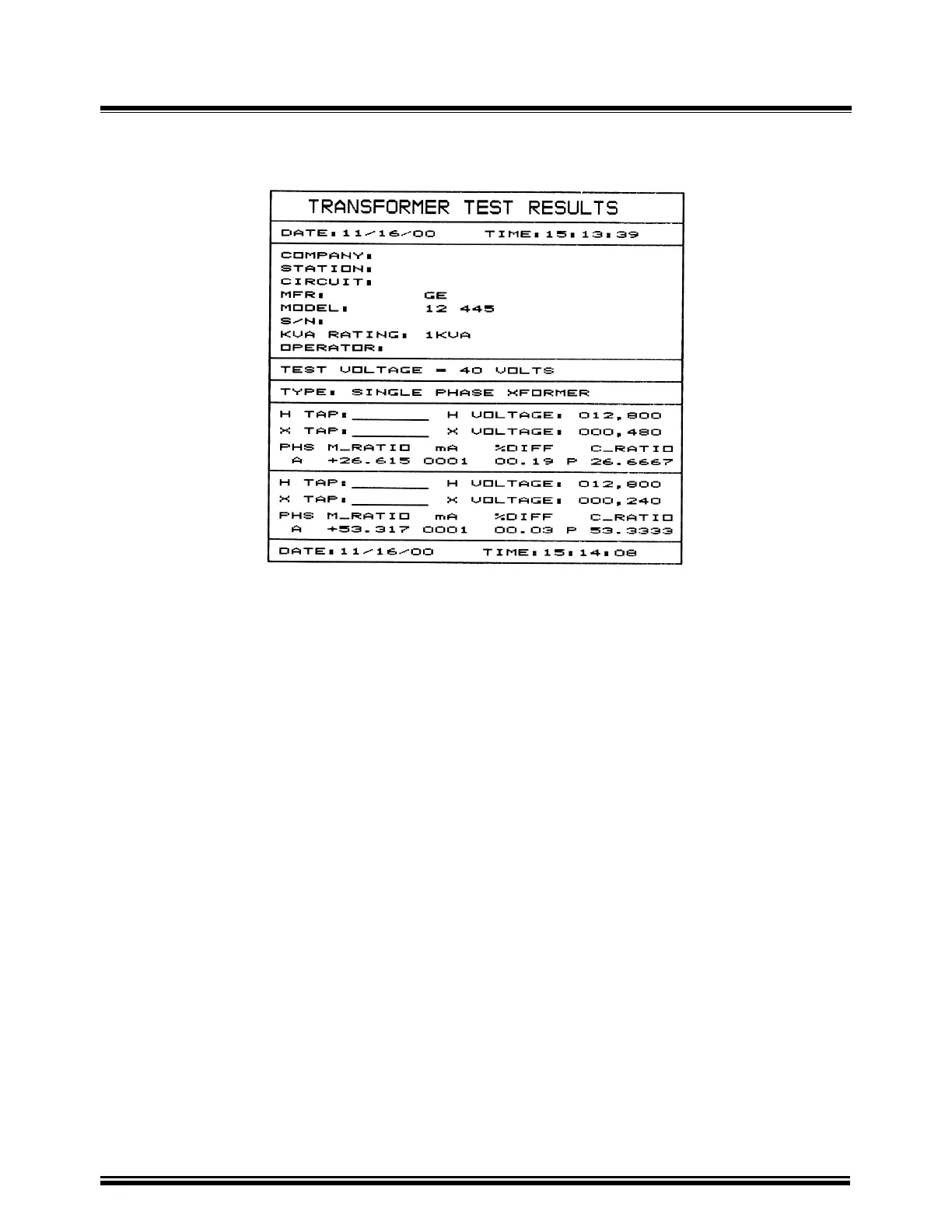

Figure 22-4. Test Result Print Out of a Single Phase Transformer Test Using Test
Plan
Note:
“PASS” and “FAIL” status is shown as “P” or “F” next to the “%DIFF” printout.
