Veeder-Root TLS-300 System Setup Manual

Appendix A: Calculating Tank Tilt - International
A-2
.

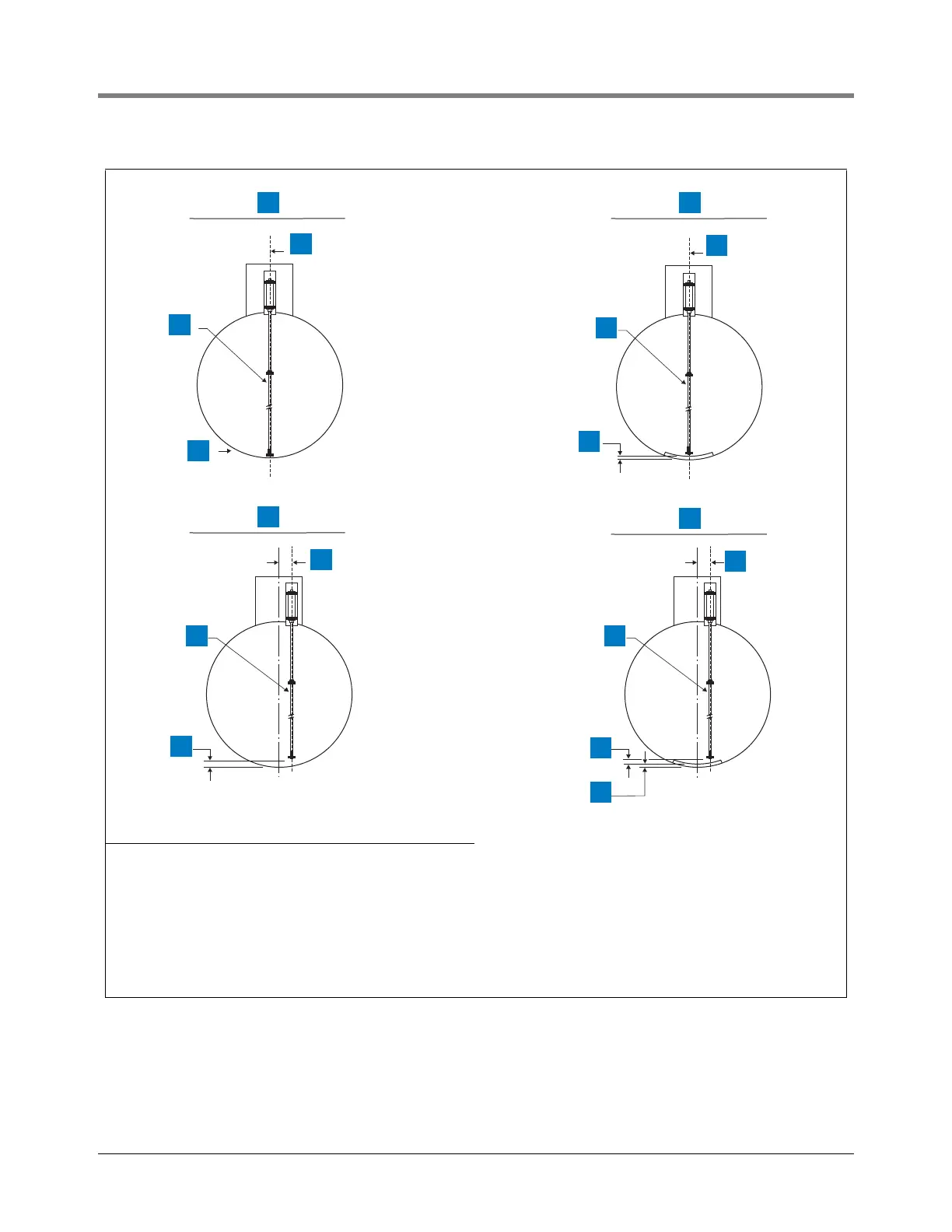

Figure A-1. Methods for Determining the Tank Tilt Entry
Legend for numbered boxes:
1. Tank Tilt = +000.00 9. Tank Tilt = Striker Plate Thickness
2. No offset 10. No offset
3. Probe 11. Probe
4. No striker plate 12. Thickness of striker plate
5. Tank Tilt = Offset Value (No Striker Plate) 13. Tank Tilt = Offset Value + Striker Plate Thickness
6. No offset 14. No offset
7. Probe 15. Probe
8. Tank Tilt (mm) (read from table) 16. Offset value (read from table)
1 9
10
13
14
15
16
17
5
7
8
6
2
3
4
11
12
