4 Prior to Applying AC Power to the Console Security Code Enable/Disable
4-4

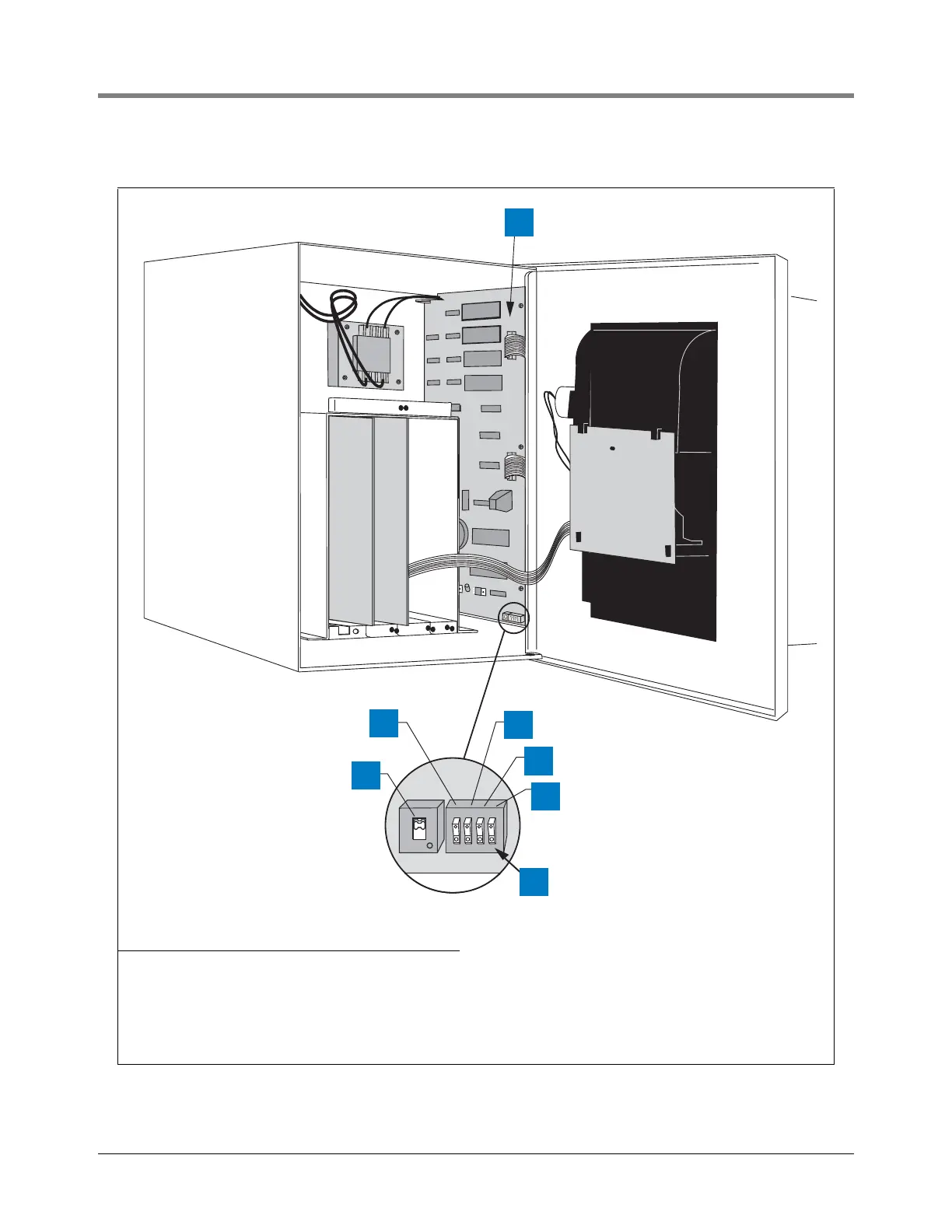

Figure 4-2. Battery Backup Switch and DIP Switch Location TLS-350 Consoles with CPU Board
Legend for numbered boxes:
1. CPU Board 5. DIP Switch 4 (not used)
2. Front Panel Security Code (DIP Switch 1) 6. Front Panel Display (DIP Switch 3)
3. Battery Backup Switch (S1) - Shown in ON position
(up)
7. RS-232 Security Code (DIP Switch 2)
4. DIP switches: 1 - 4 shown in the OPEN position
(open end down, number end up)
consoles\cpubbsw1.eps
BATT
1234
S1
S2
OPEN
OPEN
1
2
3
7
6
5
4
