Veeder-Root TLS-300 System Setup Manual

4-3
4 Prior to Applying AC Power to the Console Security Code Enable/Disable

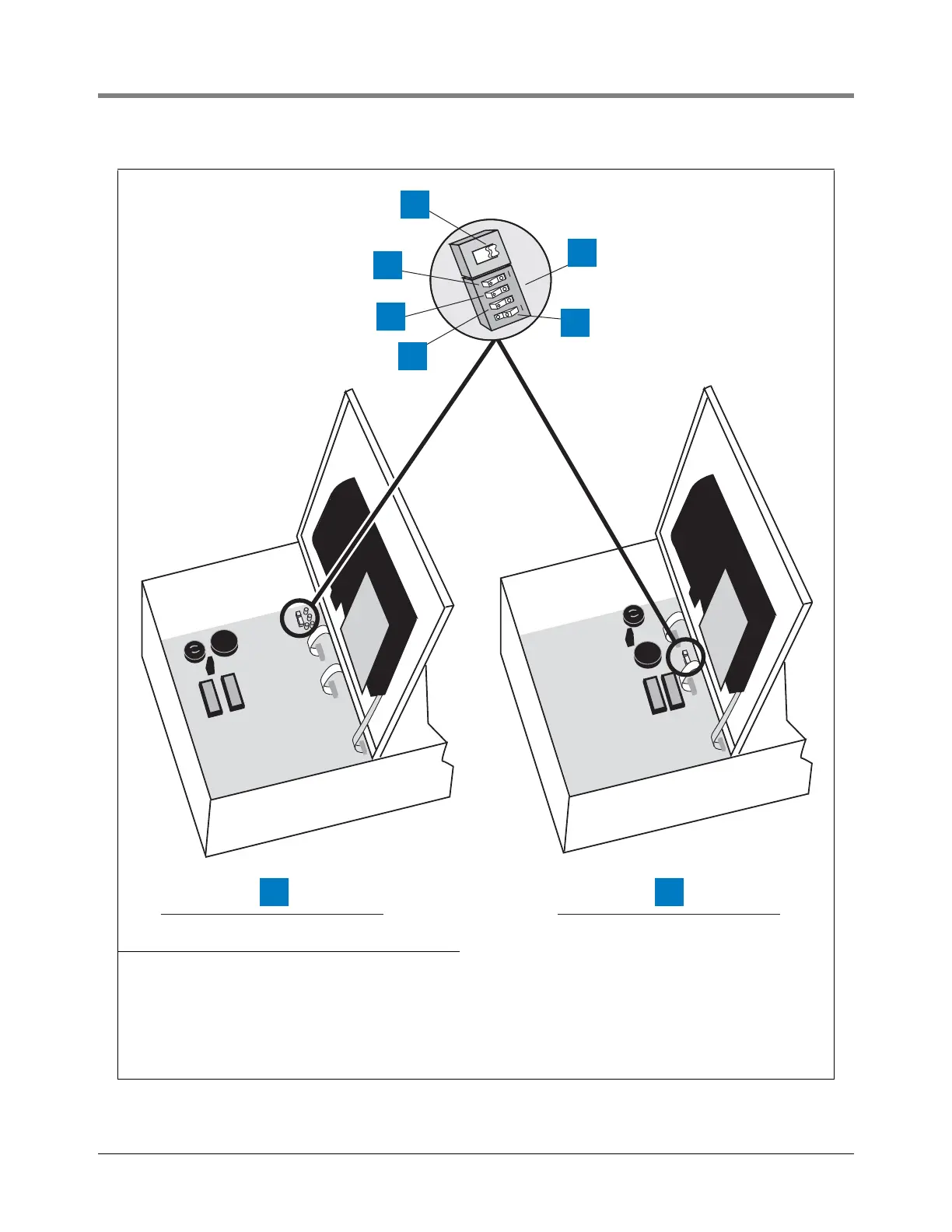

Figure 4-1. Battery Backup Switch and DIP Switch Location - TLS-300 Console
Legend for numbered boxes:
1. Battery Backup Switch (S1) shown in OFF position 5. DIP switch 1 can be in either position - It is shown in closed
position (open side up, number side down)
2. Front Panel Security Code (DIP Switch 4) 6. Switch (S2)
3. RS-232 Security Code (DIP Switch 3) 7. S1 and S2 Locations in Consoles with Through-Hole Mount
CPU Board
4. Front Panel Display (DIP Switch 2) 8. S1 and S2 Locations in Consoles with Surface Mount CPU
Board
S2
S1
1234
OPEN
1
consoles\300dp1.eps
1
2
3
4
5
6
8 7
