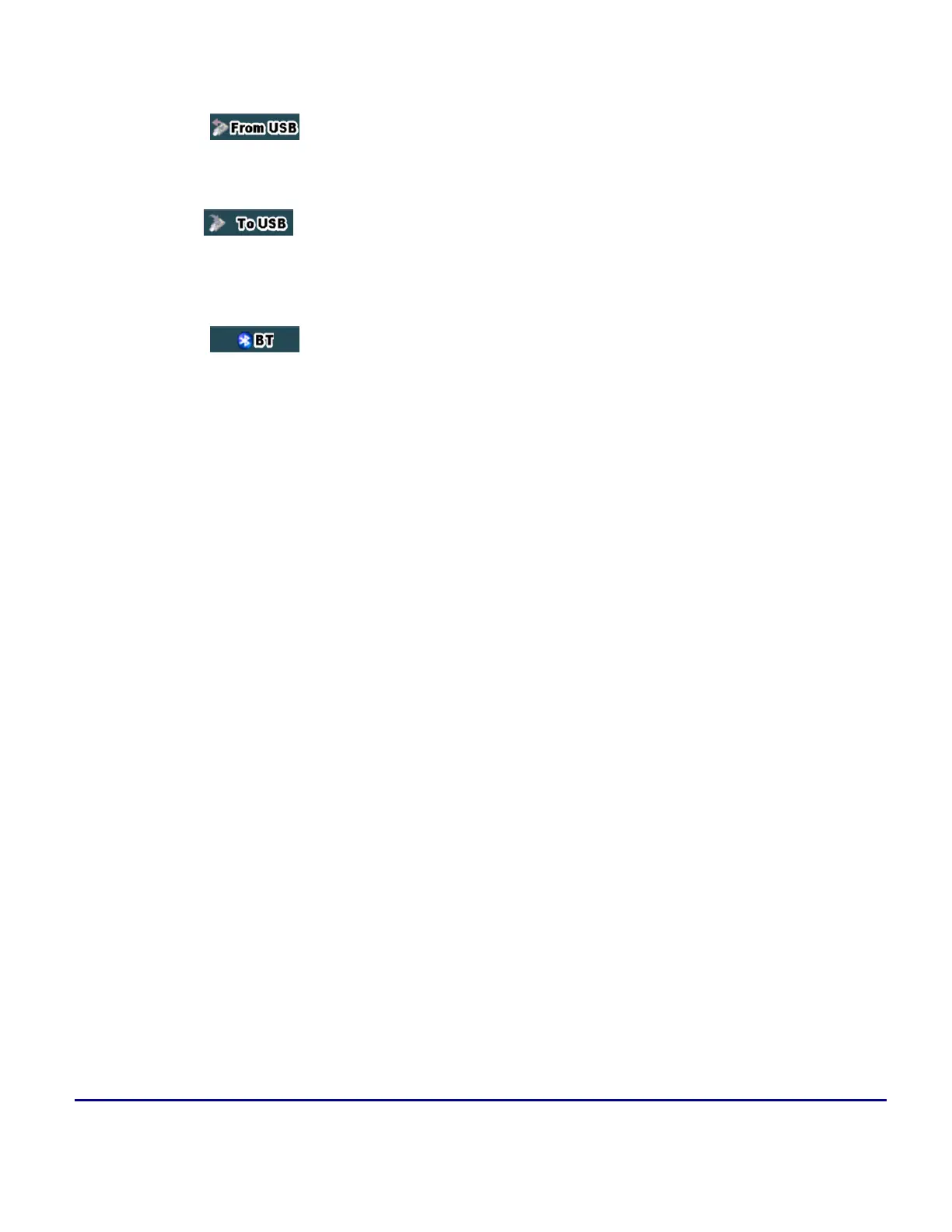

Imports (restores) all test results, test profiles and screenshots stored in an
attached USB Memory Stick. The included On-The-Go (OTG) micro-B
USB to USB-A adapter cable is required for the USB memory stick.
`
Exports (backup) all selected test results, test profiles and screenshots
stored to an attached USB Memory Stick. The included On-The-Go (OTG)
micro-B USB to USB-A adapter cable is required for the USB memory
stick.
Transfers selected test results, test profiles and screenshot files to a
paired Bluetooth® smartphone, tablet or PC.
Other Test Features
PoE Check:
Verifies the presence of Power over Ethernet on the Link or Device Under Test (DUT).
IP PCAP:
Traffic Packet Capture & Decode (function). Enable this advanced troubleshooting feature to capture Layer 3
packets while running tests. Tap on the red IP PCAP button to stop the capture and a standard PCAP file will
be saved in the File Manager, where they can be opened (View) and decoded with the built-in Wireshark pro-
tocol analyzer or exported to USB for further analysis on a PC.
Tra. PCAP:
Traffic Packet Capture & Decode (test application). Launches a separate test application for advanced Eth-
ernet packet capture. PCAP files are stored in the File Manager, where they can be opened (View) and
decoded with the built-in Wireshark protocol analyzer or exported to USB for further analysis on a PC.
Cable:
The Cable Check function provides basic diagnostics for the UTP cable pairs' pin-out (straight, crossed, low
impedance mismatch, short, high impedance mismatch, open) and as well as their length.
