MDIX (100/1000Base-T only): Off, On, or Auto. When MDIX is set to Auto, the test set detects the
required cable connection type and configures the port connection properly for interfacing the part-
ner device, eliminating the need for crossover cables.
l
Transmit clock offset (100/1000Base-T only): Disabled or Enabled. Due to hardware limitation,
transmit clock offset is only valid when PHY is working on Master mode. Clock offset measurement
is only valid when PHY is working on Slave mode.
l
PHY working mode: Master or Slave.
l
Transmit Ignore Link Status: On/Off
l
Synchronous Ethernet (SyncE): Disabled or Enabled. When Enabled, makes the signal traceable
to an internal or external reference clock.
For information on configuring SyncE operation, see Port Page 2 - Mode Selection in the
SyncE section.
Status

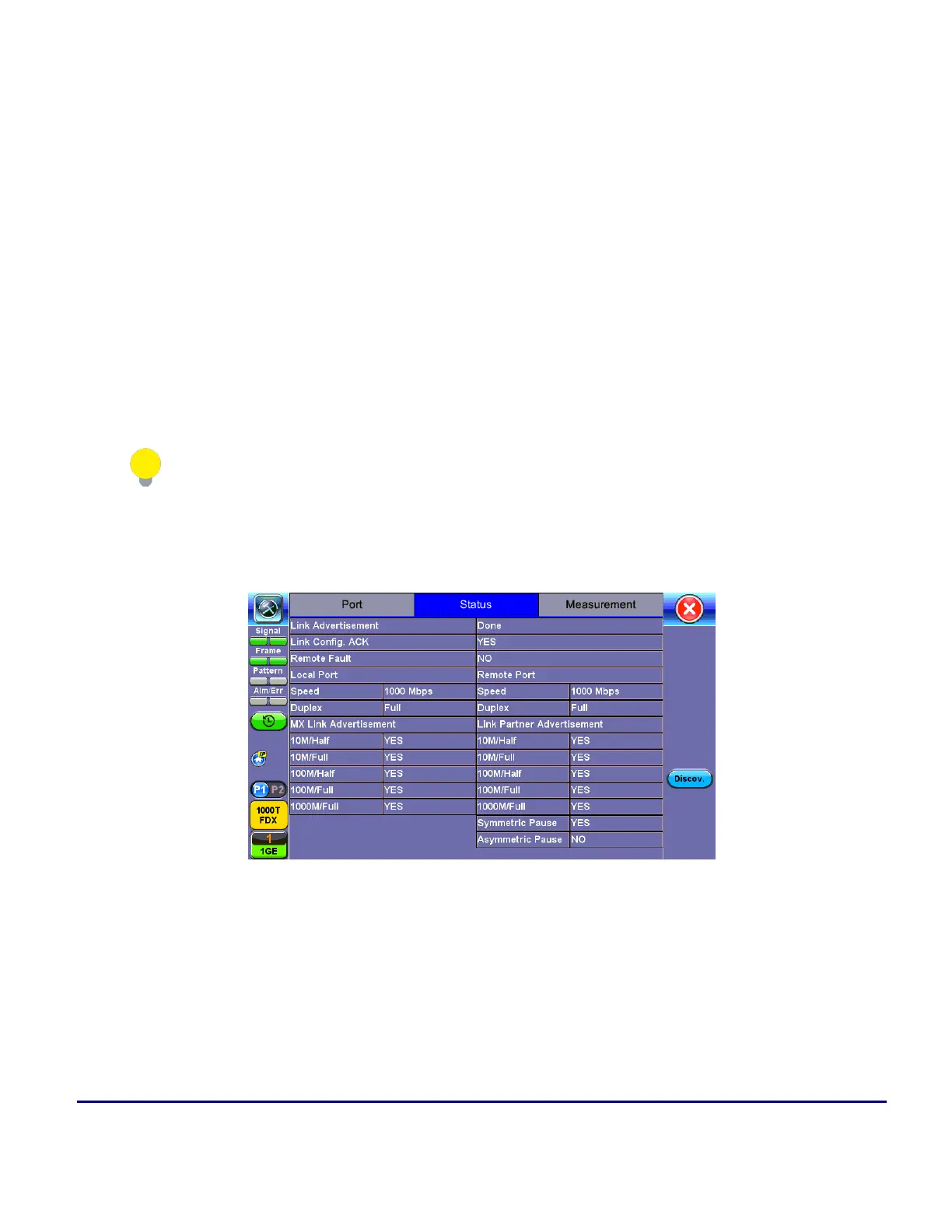

Status tab for 10/100/1000Base-T
The Status tab lists current port settings. Please note that the Status tab is only available if a fiber port option is
selected from the Test Port Selection menu.
