3. Connect a second field-supplied, straight-through Ethernet cable to P64 and the network
switch.

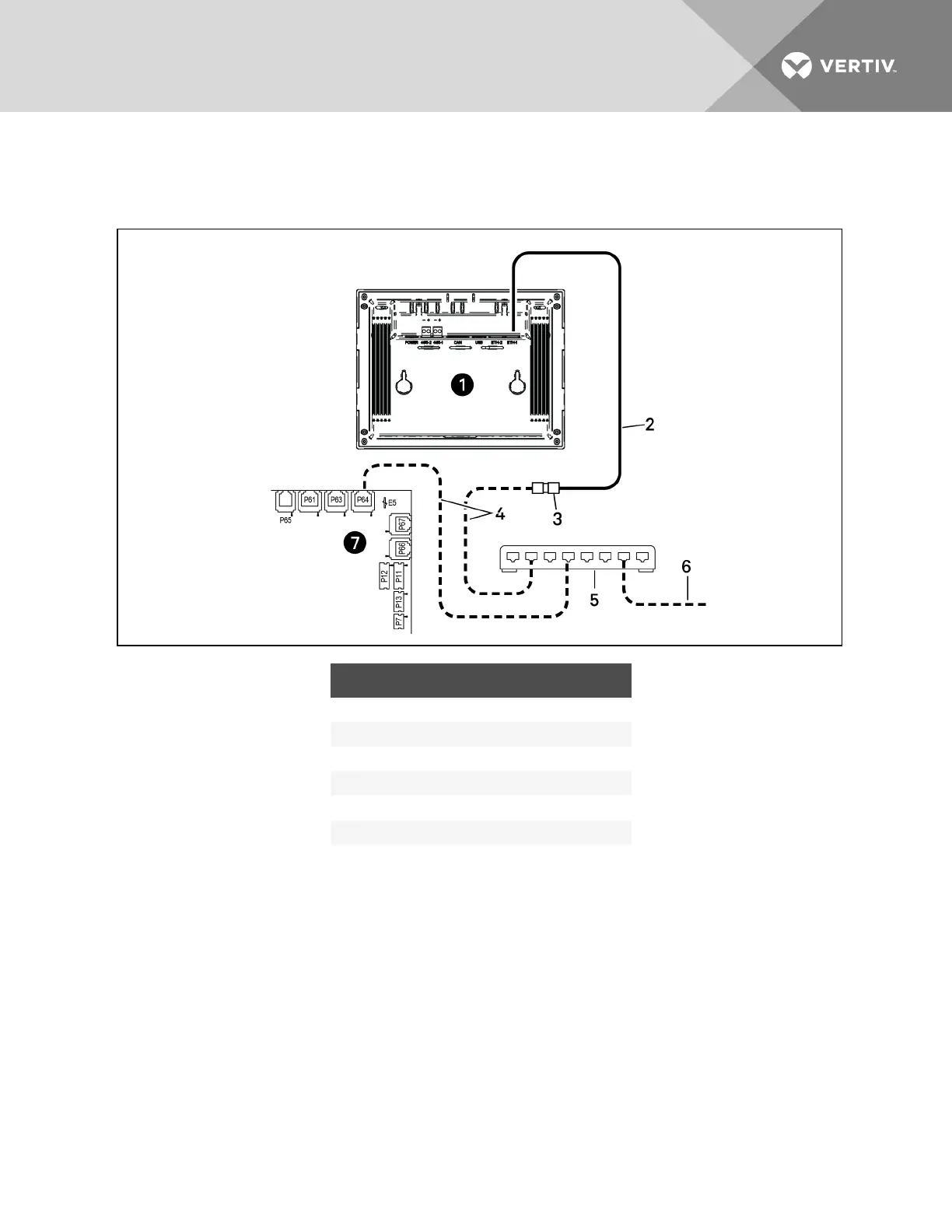

Figure 9.13 Connecting 300mm (12in.) units
ITEM DESCRIPTION
1 Touchscreen (rear view)
2 Ethernet cable
3 Coupler (factory-supplied)
4 Straight-through Ethernet cables
5 Network switch (field-supplied)
6 to ETH-2 on rear of other cooling-unit touchscreens
7 iCOM I/O board
