7. Using the stabilizer feet, lower the unit to the skid. Make sure that the stabilizer feet are all the
way in the "up" position.
8. Move the unit to its installation location.
IMPORTANT! Two or more properly trained and qualified personnel are required to move the unit to its
installation location.

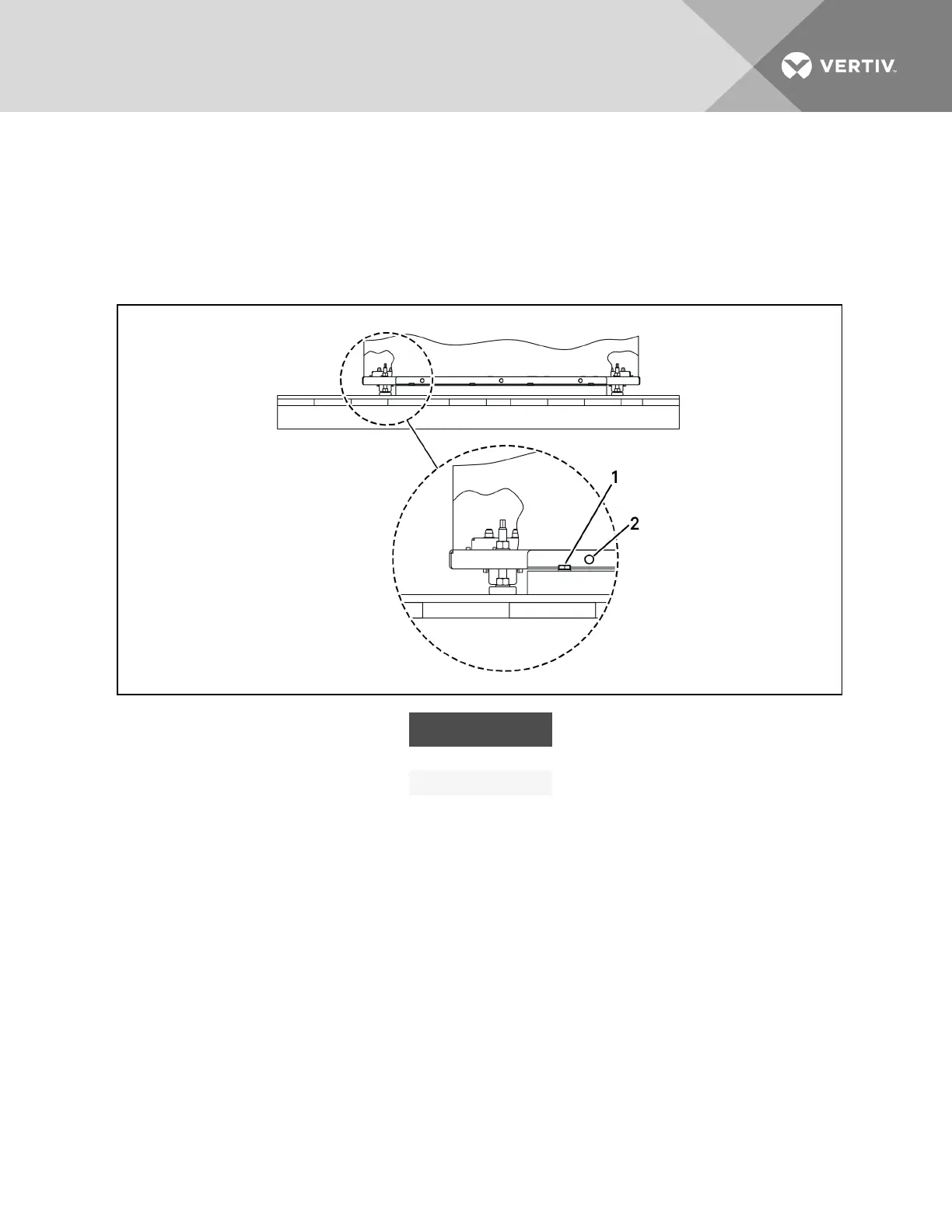

Figure 4.5 Stabilizer feet, 13-mm bolt and 17-mm bolt locations
ITEM DESCRIPTION
1 M17 socket
2 M13 socket
4.4.1 Reattaching Baffle Panel—600mm (24 in.)
Once the unit is moved to where it will be installed, the baffle panel can be reattached.
1. Open top panel door (with iCOMdisplay), see Figure 4.4 on the previous page.
2. Reattach the bottom baffle panel assembly with screws, using a T30 Torx drive.
3. Close and latch top panel door.
