2. Install the ramp on the skid:
• Place the ramp against the skid as shown in Figure 4.4 below.
• Remove the orange clips from the plastic bag, and insert the clips into holes on the skid
and ramp.
3. Using a 17-mm socket wrench, open-end wrench, or pliers, remove the 8bolts (4on each side)
that secure side tie-down brackets to skid, shown in Figure 4.4 below.

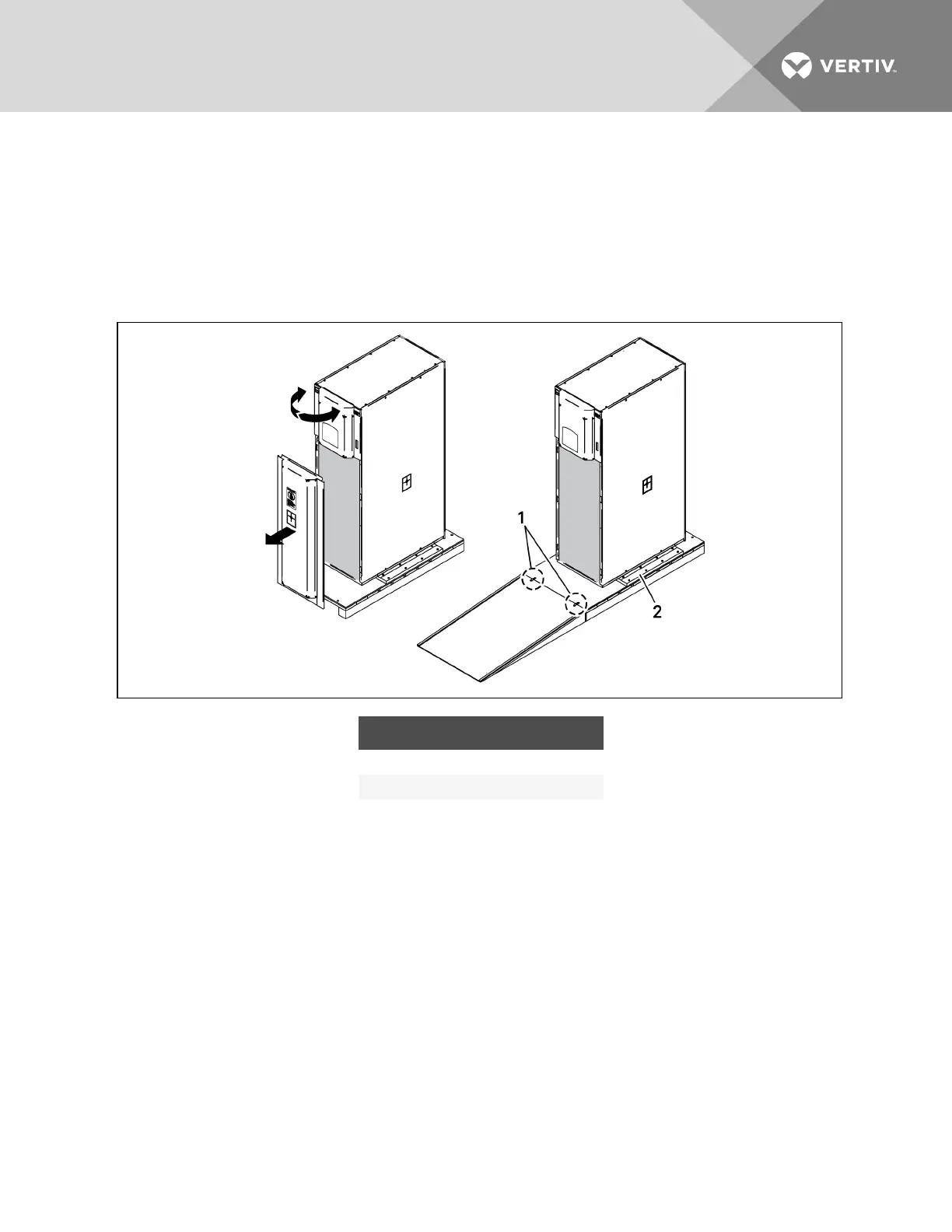

Figure 4.4 Removing the unit from the skid
ITEM DESCRIPTION
1 Orange clips inserted into holes.
2 Bolts in tie-down brackets (4 each side)
4. Lower the four stabilizer feet until the side tie-down brackets no longer contact the skid.
5. Using a 13-mm socket wrench, see Figure 4.5 on the next page, open-end wrench, or pliers,
remove the 6bolts (3on each side) that secure the side tie-down brackets to the unit base,
and remove the side tie-down brackets.
6. Using a 17-mm socket wrench, see Figure 4.5 on the next page, open-end wrench, or pliers,
remove the 8bolts (4on each side) that secure the lift block to the skid, and remove the lift
blocks from the skid.
