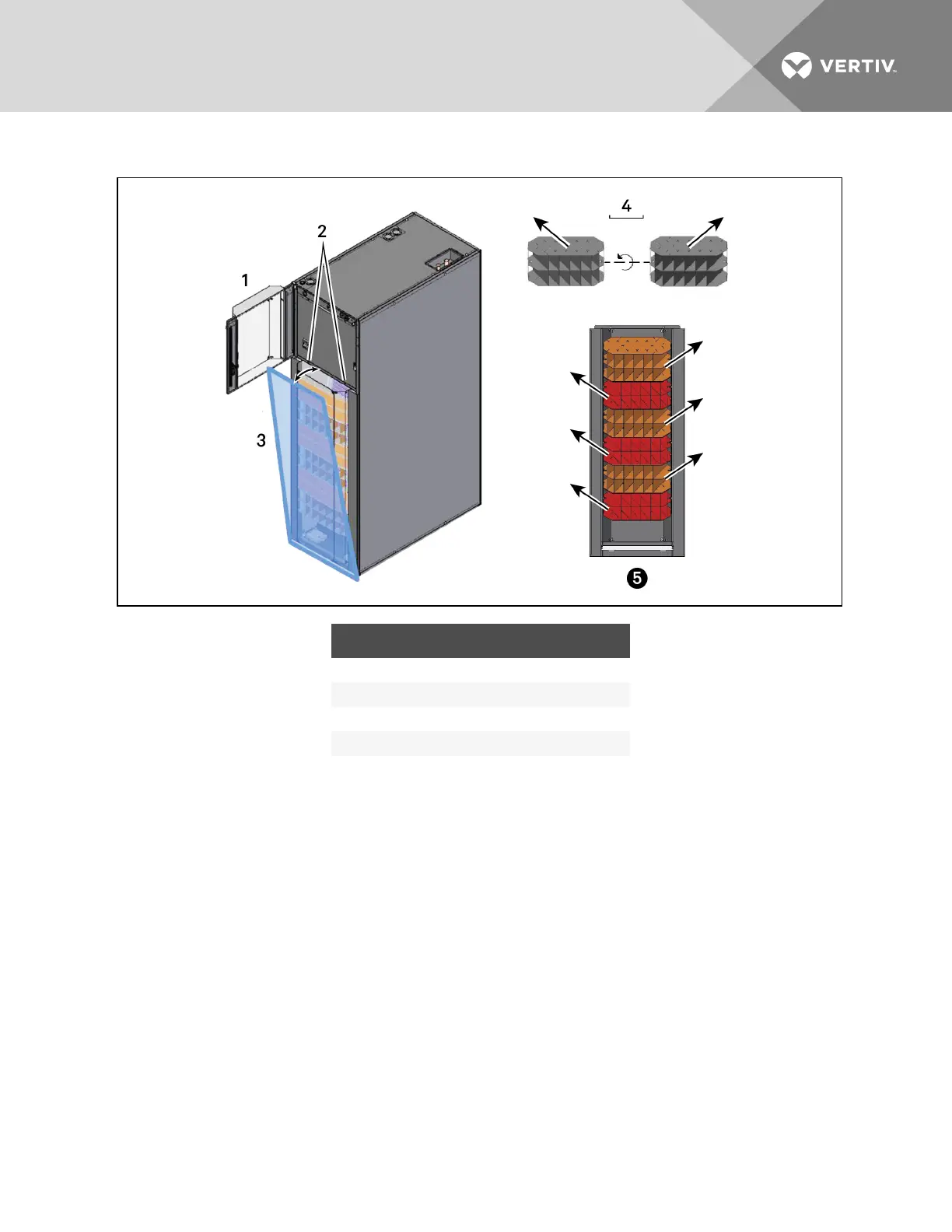

Figure 10.4 Baffle adjustment for correct airflow direction—600-mm (24-in.)
ITEM DESCRIPTION
1 Display door (open)
2 Bolts to remove
3 Tilt and lift-out baffle panel.
4 Changing baffle-panel direction
5 Baffles installed so that discharge air flows upward
10.4.2 Adjusting Blocker Plate—600-mm (12-in.)
A blocker plate inside the display door should also be adjusted to direct air toward the racks that the
cooling unit is intended to condition. The blocker plate can be installed on the left or right side of the
display door, or it can be removed to discharge air left and right.
To adjust the blocker plate:
1. Remove the three screws that attach the blocker plate to the display door.
2. Reattach the blocker plate to the other side of the display door or to remove it.
Vertiv | Liebert CRV Installer/User Guide | 117
