4.6 Removing 300-mm (12-in.) Models from the Pallet
WARNING! Risk of unsecured unit rolling off skid. Can cause equipment damage, injury or
death. The 300-mm (12-in.) DX unit is on casters. Ensure that the unit/skid is located on a flat
surface before loosening the hardware securing the to its shipping pallet.
1. Install the ramp:
• Remove the (2) 1/4-in. hex-head bolts that secure each ramp the skid.
• Refer to Figure 4.7 below, and fit the tab on each ramp into a hole on the shipping pallet.
2. Remove the (3) 9/16-in. hex-head bolts that secure the shipping brackets, one bracket on each
side of the unit.
3. Roll the unit down the ramp and off the pallet onto a flat surface.
IMPORTANT! Two or more properly trained and qualified personnel are required to move the unit to its
installation location.

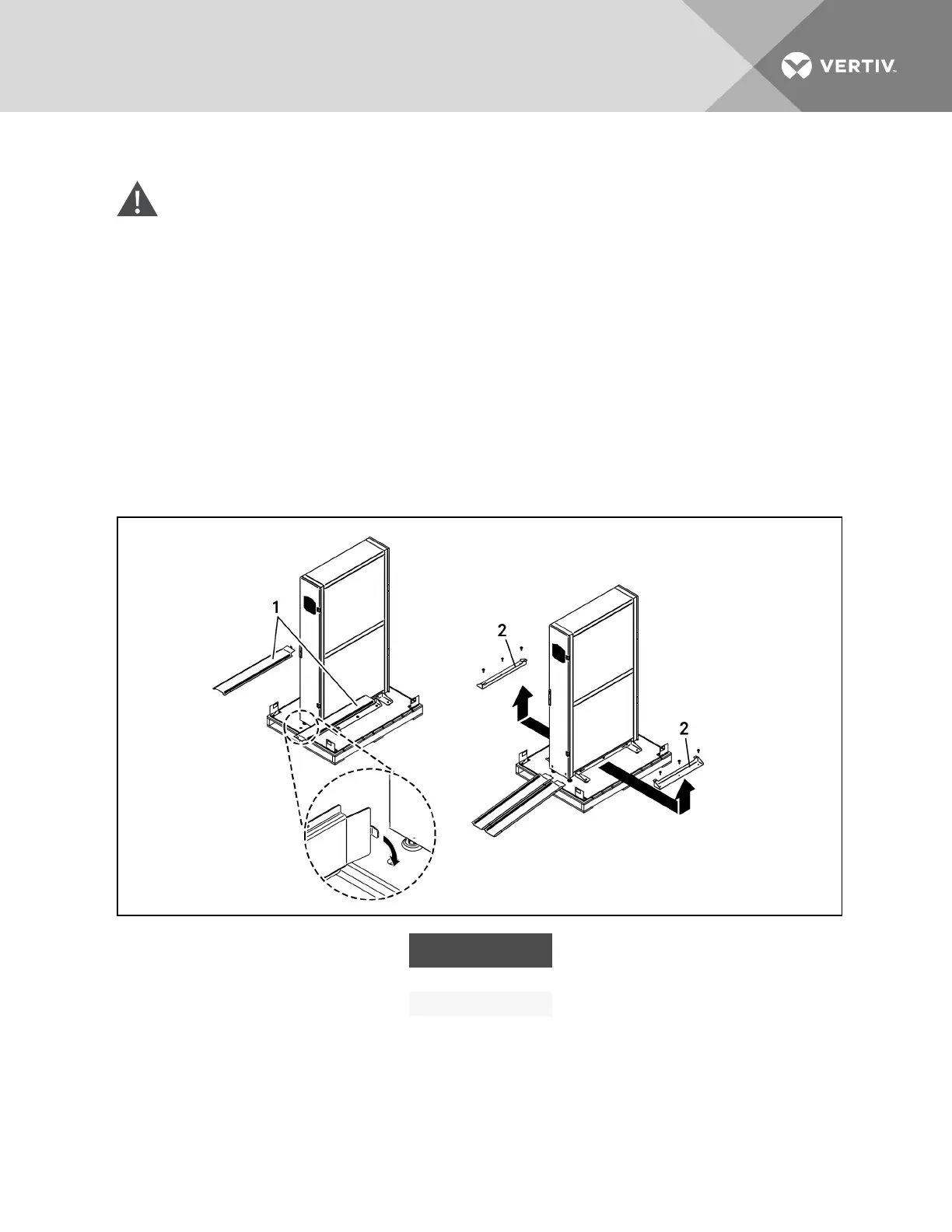

Figure 4.7 Installing ramps and removing shipping brackets
ITEM DESCRIPTION
1 Ramp
2 Shipping bracket
Vertiv | Liebert CRV Installer/User Guide | 26
