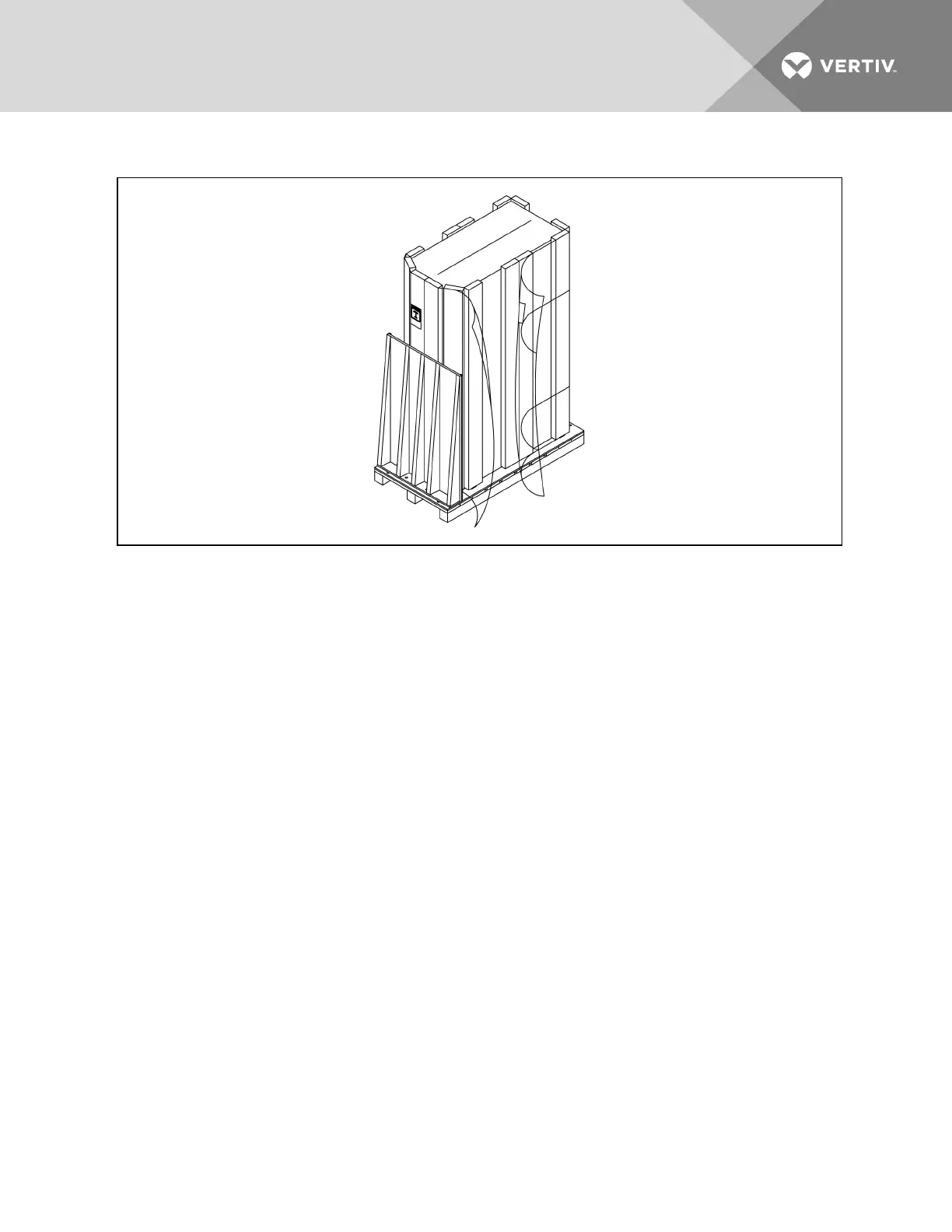

Figure 4.3 Unpacking the 600-mm(24-in.) Unit
4.4 Removing 600-mm (24-in.) Models from the Skid
1. Remove, baffle panel from the front of the unit:
• Open the top-panel door (with iCOM display) as shown Figure 4.4 on the facing page.
• Using a T30 Torx screwdriver, remove the bottom baffle panel assembly, and set aside
until needed for reattachment.
• Close and latch the top panel door.
Vertiv | Liebert CRV Installer/User Guide | 22
