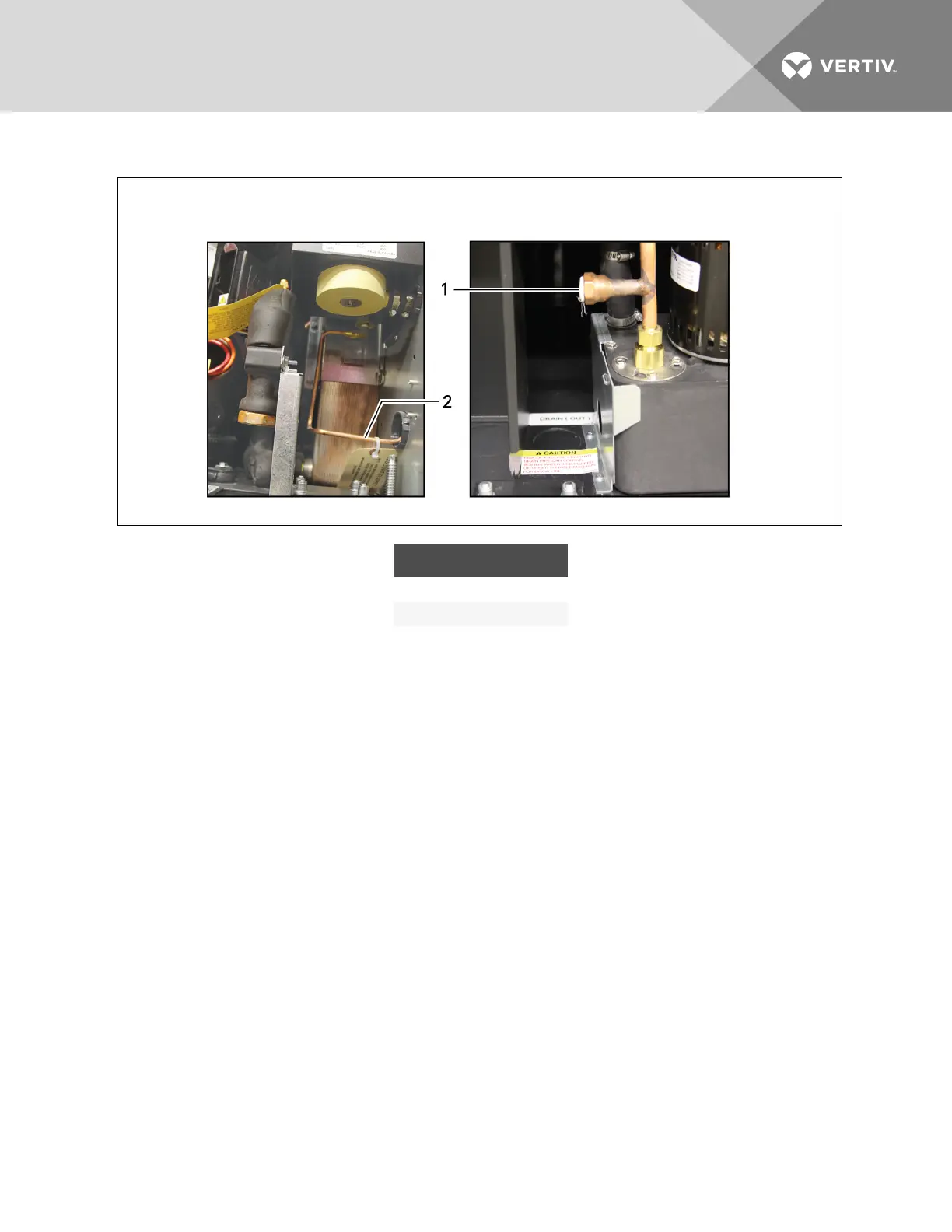

Figure 6.9 Water connection points, bottom entry, 600 mm (24 in.) models
ITEM DESCRIPTION
1 Condensate-pump drain
2 Humidifier water supply
6.3.6 Condensate-pump Drain Piping for300-mm(12-in.) Models
• Condensate pump is rated for approximately 4.6GPH at 17feet (0.28l/m at 5.18m) total head.
Maximum coil condensate design flow rate is 4.6 GPH.
• Size piping based on available condensate head.
Before connecting the drain line, refer to the appropriate instructions to the discharge hose to the drain-
line opening based on the cooling type of the unit:
• Connecting Discharge Hose onAir-cooled,300-mm(12-in.)Models on the next page
• Connecting Discharge Hose onWater/Glycol-cooled,300-mm(12-in.)Models on page63
• Connecting Discharge Hose onChilled-water,300-mm(12-in.)models on page65
