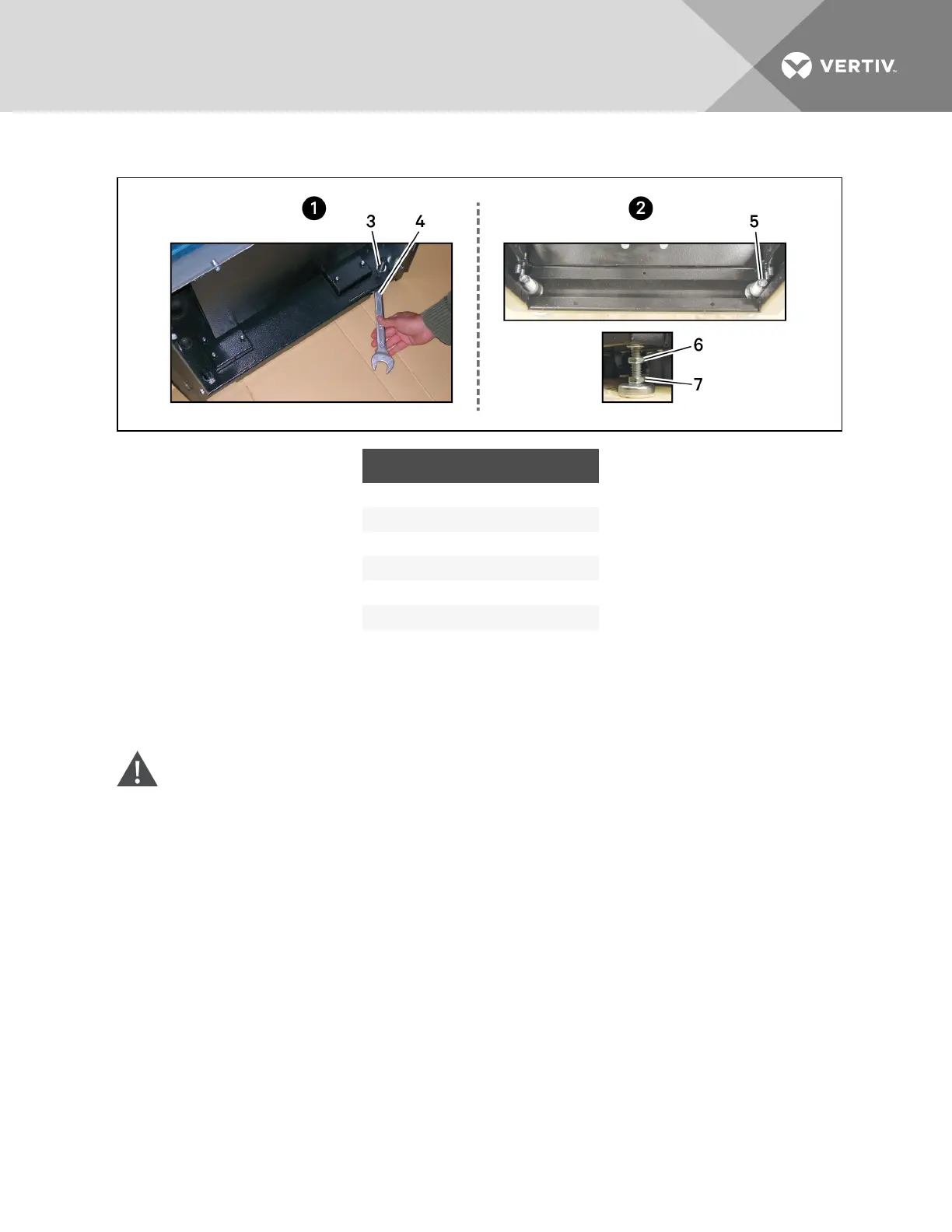

Figure 5.2 Adjust leveling feet
ITEM DESCRIPTION
1 600-mm (24-in.) unit
2 300-mm (12-in.) unit
3 Nut on top of foot.
4 Adjust foot with wrench
5 Adjust foot with wrench
6 Jam nut, secures foot and final height
7 Nut to raise/lower foot.
5.2 Optional Tie-down Brackets for 300-mm (12-in.) Units
An optional tie-down bracket may be installed on the unit to secure it in the row. The bracket keeps the
space between the cooling unit and adjacent equipment constant, preventing noise from vibration.
WARNING! Risk of electric shock and/or improper drilling. Can cause equipment damage, injury
or death. Open all local and remote electric power disconnect switches, verify that power is off
with a voltmeter and verify that no servers or other equipment is located in the intended area
for drilling or use of mounting screws. Verify that there are no electric wires or equipment that
may be damaged by the drill or by the resulting shavings and debris.
5.2.1 What’s Included
• Brackets: 4 (2-piece, L-shaped components; for cabinets of different heights)
• Bracket tie-downs: 2 (flat brackets; for cabinets of same height)
• M6 bolts: 2
• M6 nuts: 2
• Washers: 2
• Self-tapping screws: 16
