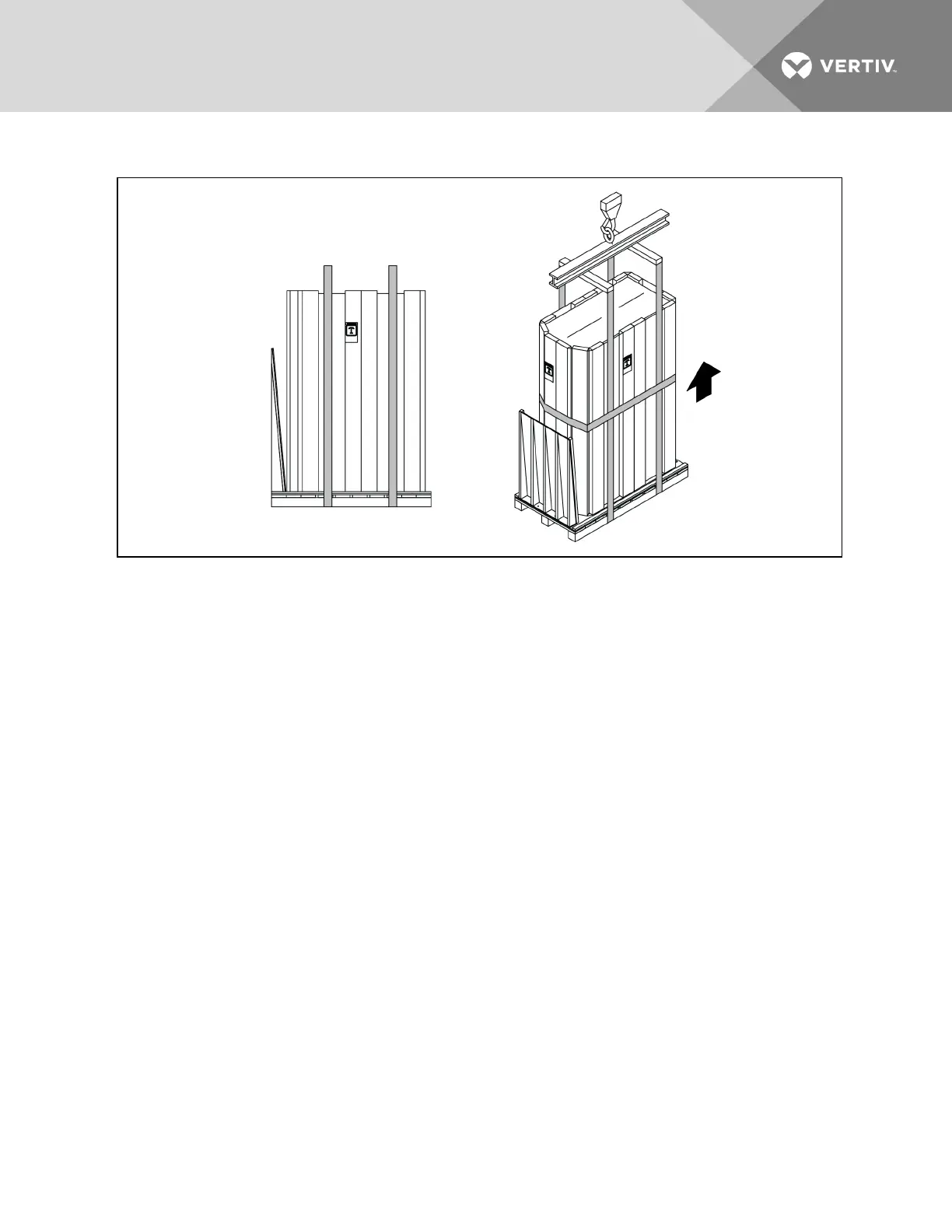

Figure 4.2 Moving using rigging—600 mm (24 in.)
4.3 Removing Packaging from 600-mm(24-in.) Unit
1. Remove the lag bolts securing the ramp to the skid.
2. Remove the exterior stretch wrap packaging from around the unit and any planks tightened
with the stretch wrap, exposing the protective corner and side packaging planks, as shown in
Figure 4.3 on the next page.
3. Remove the corner and side packaging planks from the unit, exposing the bag over the unit.
NOTE: The bag may remain in place to protect from dust and to protect the unit panels, or it may be
removed for immediate installation.
4. Remove the bag from the unit when ready to remove the skid and install the unit.
