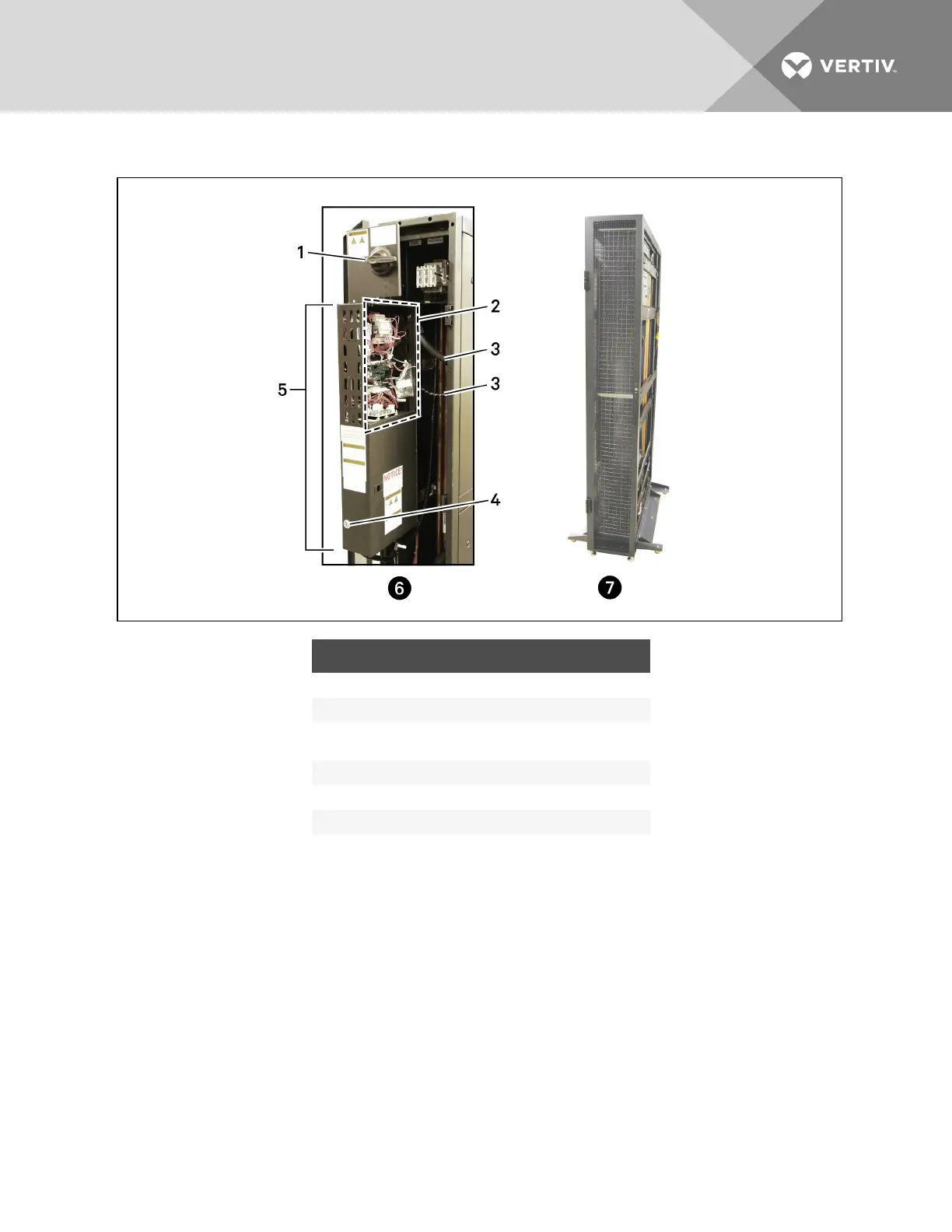

Figure 7.5 Pulling out the electric panel—300 mm (12 in.)
ITEM DESCRIPTION
1 Main disconnect switch
2 Low-voltage electrical panel
3
Low-voltage electrical-wiring conduit
(the lower conduit carries factory wiring)
4 Quarter-turn latch
5 Electrical panel, slides out
6 Rear of unit, filters removed and electrical panel accessible
7 Rear of unit, filters installed
7.3.5 Releasing the Electric-panel Lock
When the electrical panel is pulled-out, the slides on the panel lock.
To release the lock and push the electric panel in:
1. Press the tab in the center of the bottom slide, shown in Figure 7.6 on the facing page.
2. Then press the tab on the top slide while pushing the panel into the unit.
3. Lock the panel in place with the quarter-turn latch.
NOTE: The main-disconnect switch will not switch to On until the panel is fully inside the unit.
Vertiv | Liebert CRV Installer/User Guide | 78
