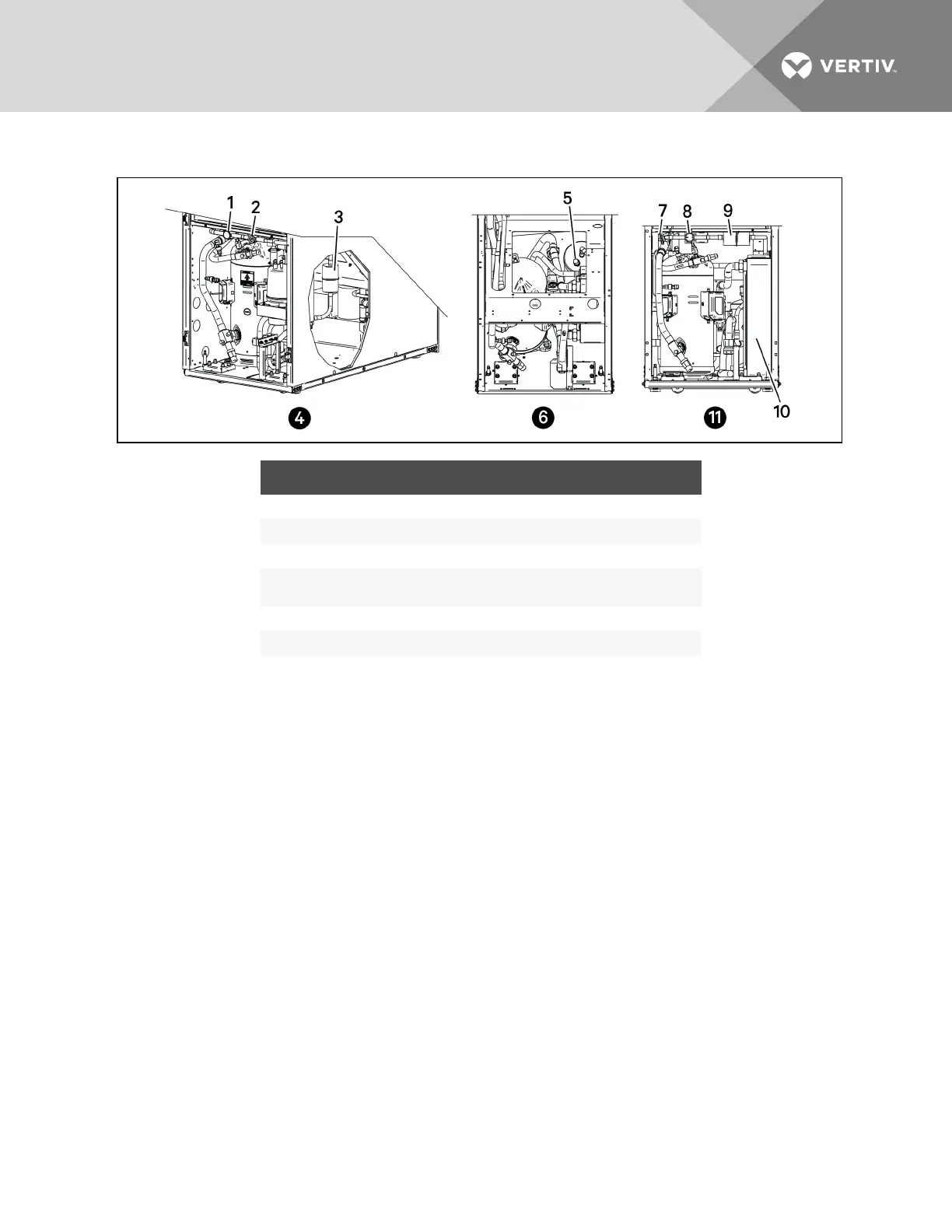

Figure 10.1 Refrigerant line components—All models, 600mm (24 in.)
ITEM DESCRIPTION ITEM DESCRIPTION
1 Solenoid valve 7 Thermostatic expansion valve
2 Sight glass 8 Solenoid valve
3 Filter dryer 9 Filter dryer
4 Air-cooled unit, rear view 10
Brazed-plate heat exchanger
(Behind humidifier, humidifier not shown)
5 Liquid-receiver relief valve 11 Water-cooled unit, rear view
6 Water-cooled unit, top view
Vertiv | Liebert CRV Installer/User Guide | 113
