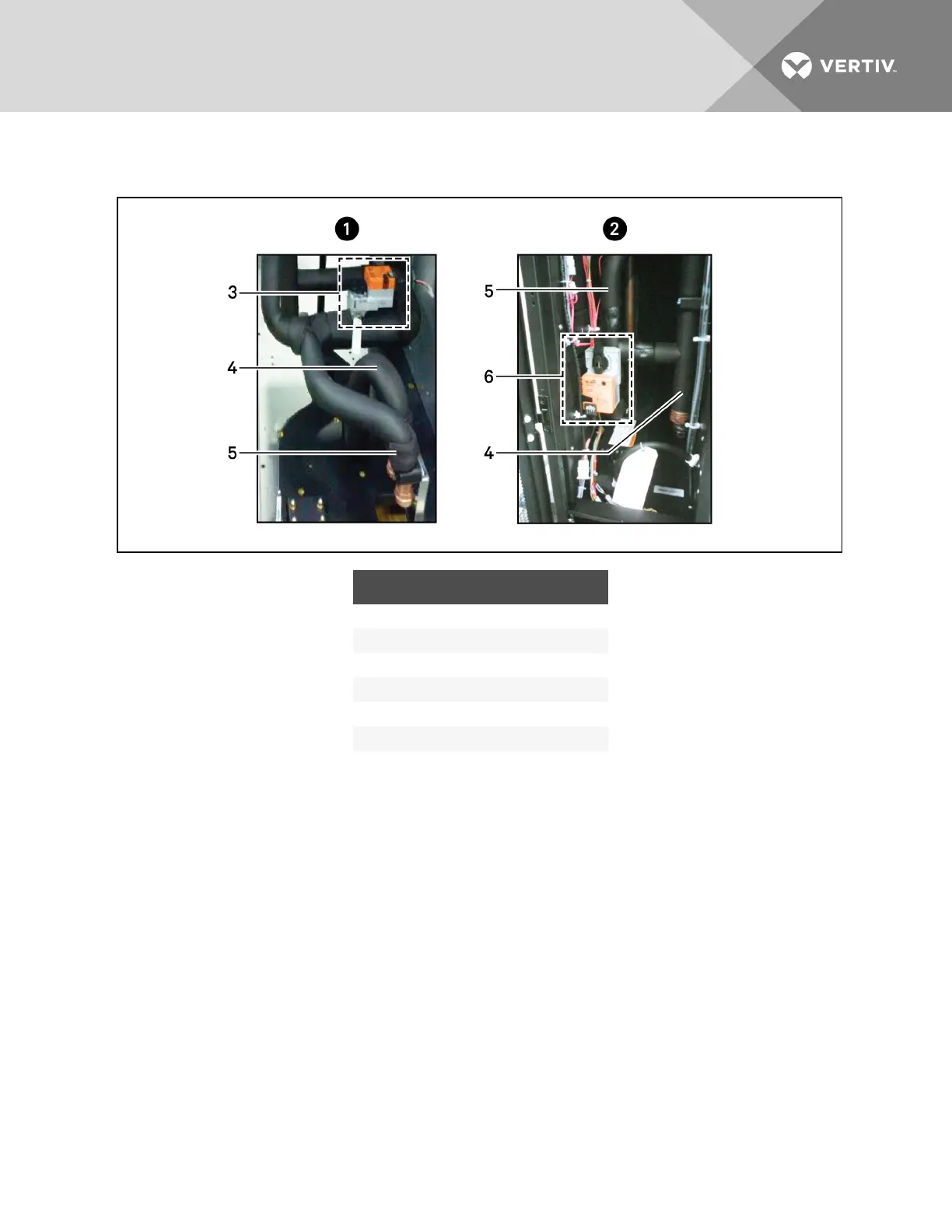

Figure 10.3 Position of the chilled-water valve actuator
(for 2- or 3-way valve)—600 mm (24 in.) and300 mm(12 in.) units
ITEM DESCRIPTION
1 600-mm (24-in.) unit
2 300-mm (12-in.) unit
3 Chilled-water valve actuator, 2-way valve
4 Water return piping
5 Water supply piping
6 Chilled-water valve actuator, 3-way valve
