300mm (12in.) AIR COOLED MODELS
Form No.: DPN001040_REV4

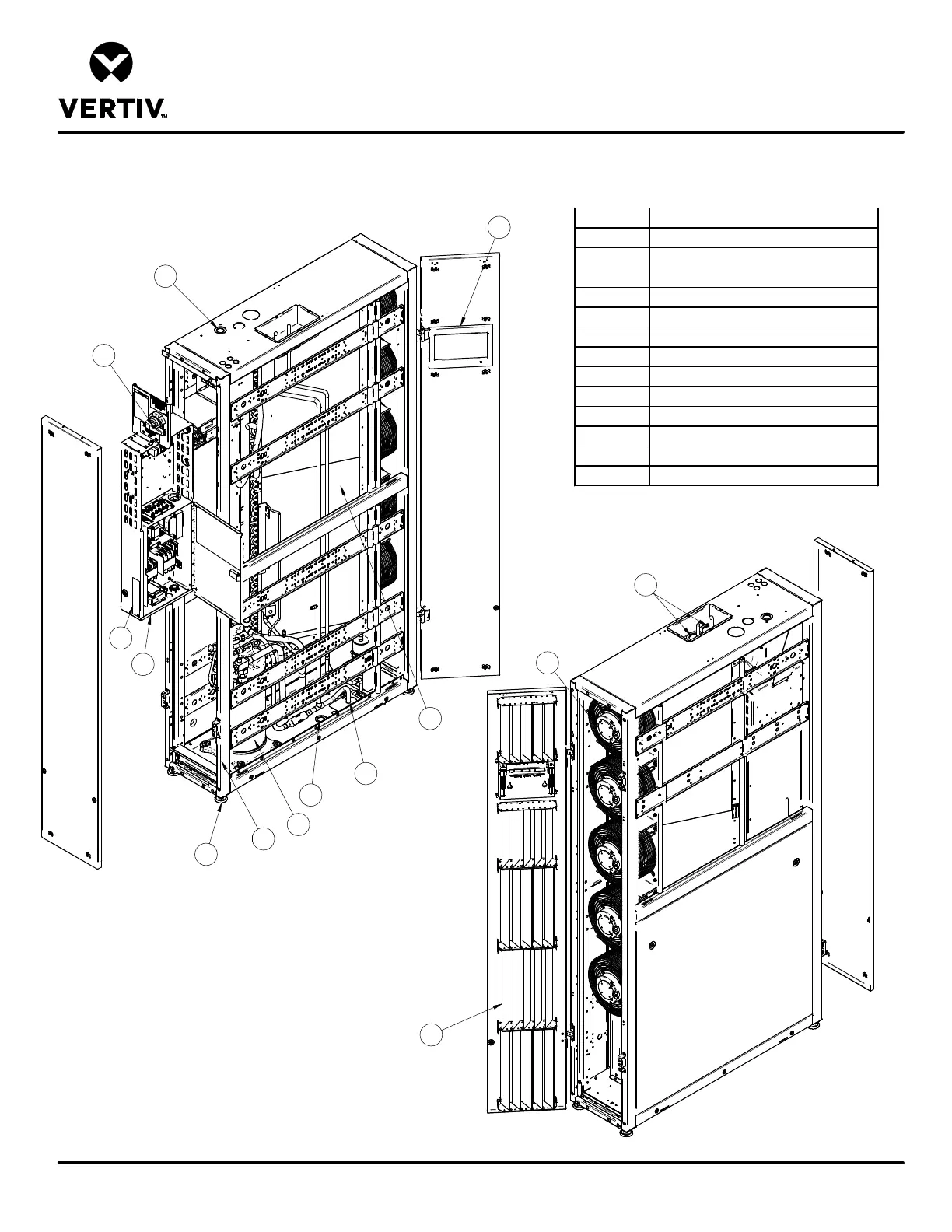

COMPONENT LOCATION
LIEBERT CRV
1 Liebert HMI Display
2 Evaporator Coil
4 Electrical connection (Bottom)
5 Compressor
6 Caster & Leveling Foot (each corner)
7 Electric Box
8 Serial Tag
9 Main Disconnect Switch
10 Top Electrical Entrance
11 Baffles (5 assemblies)
12 EC Plug Fans
13 Top Refrigerant Connections
3
Refrigerant piping connections &
Condensate Pump Drain (Bottom)
10
7
8
10
4
3
2
12
13
5
6
9
Front
Rear
Rear
Front
1
11
