Vertiv Liebert CRV - Page 185

REV : 2
REV DATE : 1/17
DPN003585
Page :1 /1
300mm (12in.) WATER GLYCOL COOLED MODELS
Form No.: DPN001040_REV4

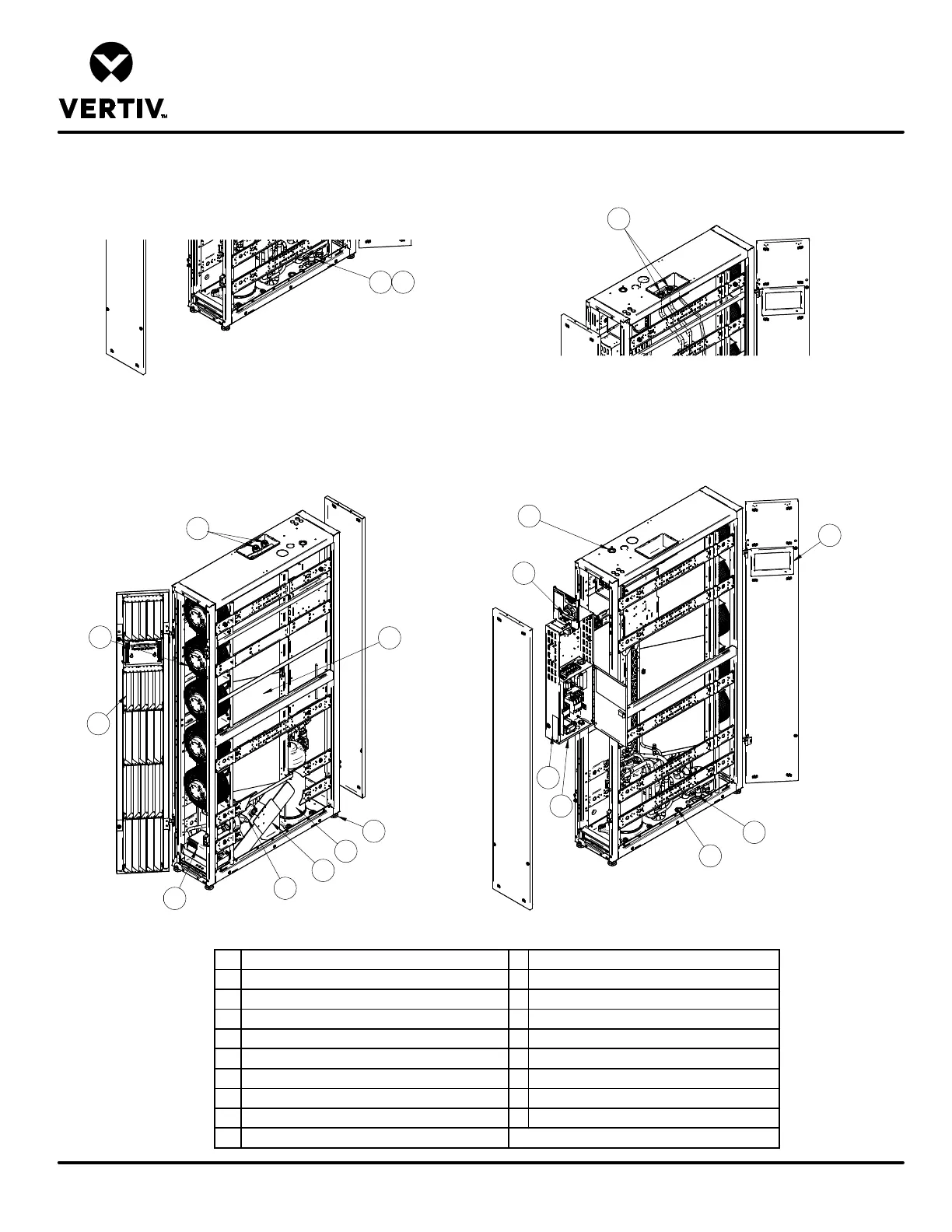

COMPONENT LOCATION
LIEBERT CRV
1
Liebert iCOM Display
11
Top Electrical Entrance
2
Ev aporator Coil
12
Baffles (5 assemblies)
3
Supply/Return Connections (Bottom Piping Option)
13
EC Plug Fans (5 typ.)
4
Knockouts for Supply/Return (Bottom Piping Option)
14
Condensate Pump Drain Top Connection
5
Bottom Electrical Entrance
15
Control Valve
6
Compressor
16
Heat Exchanger (Plate)
7
Caster & Lev eling Foot (Each Corner)
17
Condensate Pump
8
Electric Box
18
Supply/Return Connections (Top Piping Option)
9
Serial Tag
19
Condensate Pump Drain Bottom Connection
10
Main Disconnect Switch
3
Supply/Return
Bottom Piping Option
FRONT
REAR
Supply/Return
Top Piping Option
18
11
8
9
5
FRONT
REAR
10
1
13
14
FRONT
REAR
15
16
17
12
4
Components common to
Top and Bottom Piping Options
6
7
2
19
