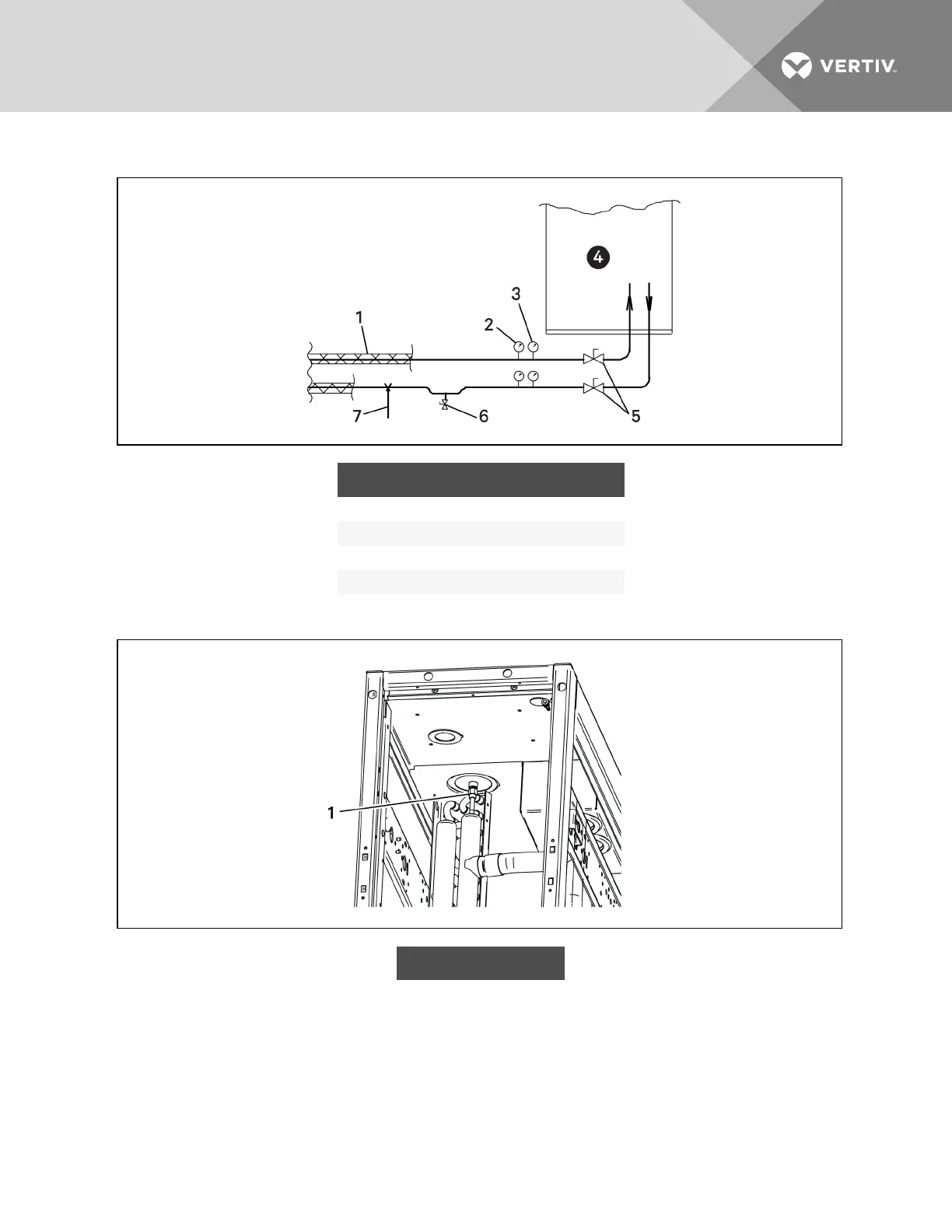

Figure 6.7 Chilled-water circuit
ITEM DESCRIPTION ITEM DESCRIPTION
1 Insulation 5 Ball valve
2 Thermostat 6 Water drain trap
3 Pressure gauge 7 Tubing support
4 Liebert CRV
Figure 6.8 Venting air trapped in a chilled-water unit
ITEM DESCRIPTION
1 Schrader valve on core
Vertiv | Liebert CRV Installer/User Guide | 57
