6. Connect field-installed drain line to the connection under the unit.
7. Using field-supplied clamps, clamp all connections as needed.

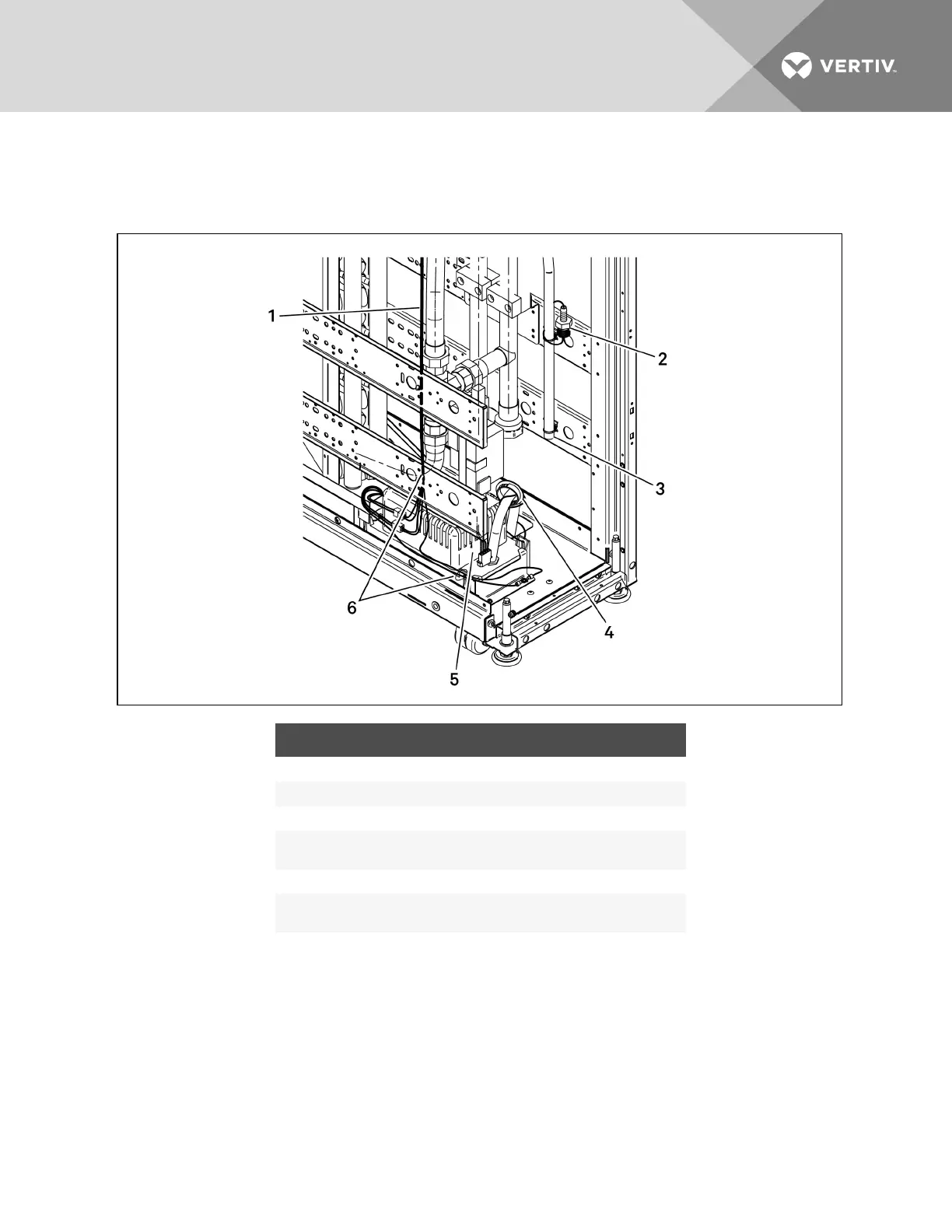

Figure 6.13 Condensate-pump drain piping, Chilled-water, 300-mm (12-in.)
ITEM DESCRIPTION
1 Wiring harness from electrical panel to condensate pump
2 Adapter (field-installed)
3 Condensate-drain tubing, top exit
4
Bushing for bottom condensate exit
(field-installed in drain-line knockout hole)
5 Condensate pump
6
Service loop of high- and low-voltage wiring for condensate-pump removal.
Make sure the service loop remains, and coil as necessary.
Vertiv | Liebert CRV Installer/User Guide | 66
