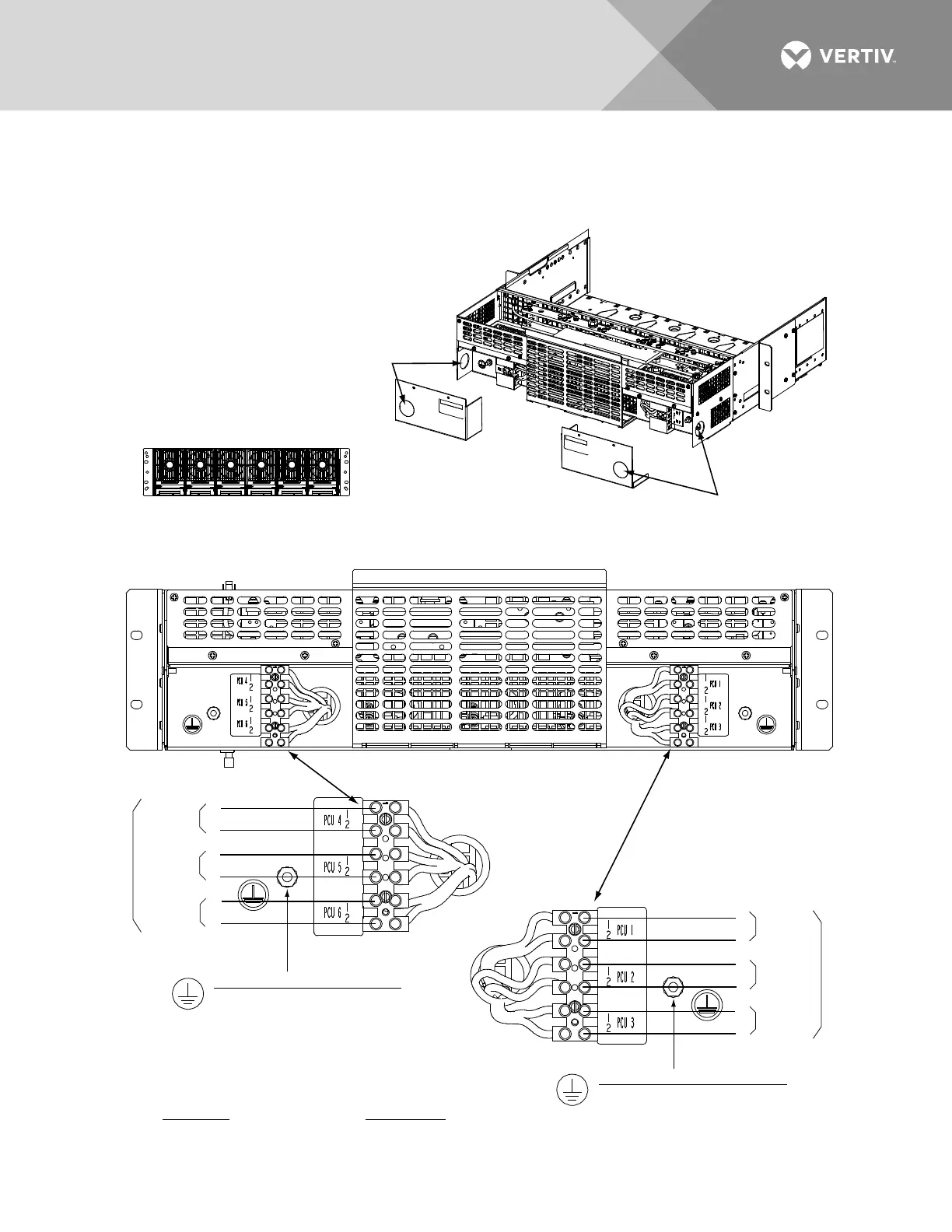

Figure 46: Nominal 208 VAC, 240 VAC, 277 VAC Input Connections (Single-Phase) to a 588705000 List 31
and 588705500 List 03 Module Mounting Assembly
Holes for 3/4"
Conduit Fitting
(AC Input)
Holes for 3/4"
Conduit Fitting
(AC Input)
Rear View
Rear View
FRAME GROUND CONNECTION
ONE 10-32 X 3/4" STUD
AND HARDWARE.
Recommended torque: 23 in-lbs.
FRAME GROUND CONNECTION
ONE 10-32 X 3/4" STUD
AND HARDWARE.
Recommended torque: 23 in-lbs.
Rectifier Module (PCU) Mounting Slots
(front view)
Rect.
(PCU)
1
Rect.
(PCU)
2
Rect.
(PCU)
3
Rect.
(PCU)
4
Rect.
(PCU)
5
Rect.
(PCU)
6
1
2
1
2
AC
IN
Rectifier
Module 4
1
2
Rectifier
Module 5
Rectifier
Module 6
AC
IN
Rectifier
Module 1
Rectifier
Module 2
Rectifier
Module 3
1
2
1
2
1
2
RECTIFIER (PCU) AC INPUT FEEDS
INDIVIDUAL RECTIFIER (PCU) FEED
208 VAC, 240 VAC, 277 VAC, 50 Hz / 60 Hz, SINGLE PHASE
Wire Size Capacity: 10-24 AWG.
Recommended Torque: 10 in-lbs.
Wire Size Capacity: 10-24 AWG.
Recommended Torque: 10 in-lbs.
Line to Line:
Connect Line 1 to Terminal 1.
Connect Line 2 to Terminal 2.
Line to Neutral
Connect Line to Terminal 1.
Connect Neutral to Terminal 2.
