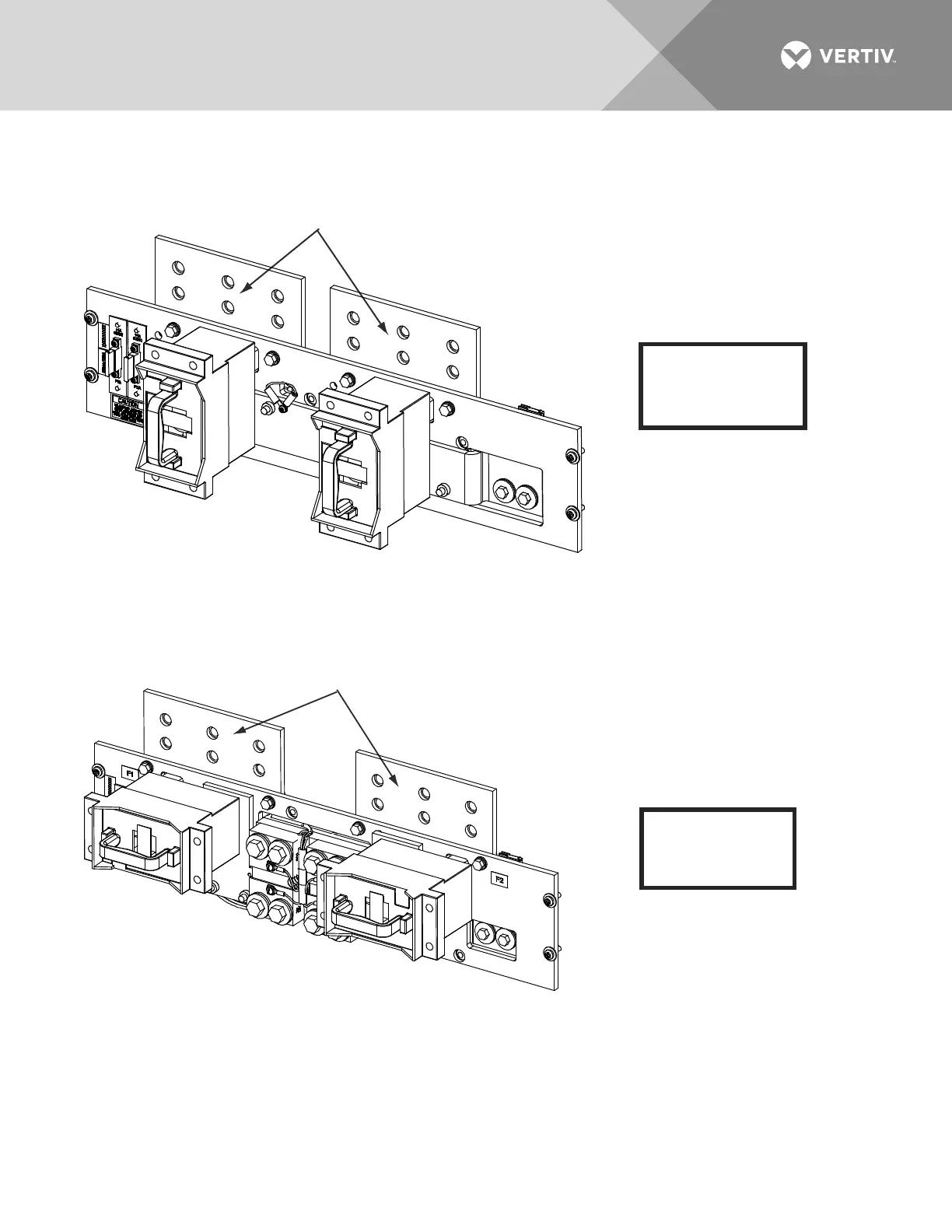

Figure 77: List AE: -48V Distribution Panel, (2) TPH Fuse Positions (without Shunts) (without Return Busbar)
Figure 78: List AF: -48V Distribution Panel, (2) TPH Fuse Positions (with Shunts) (without Return Busbar)
-48VDC Load
Connections
LOAD CONNECTIONS
3/8-16 Captive Nuts on 1” Centers
(Customer must supply or order additional hardware)
Maximum Lug Width: 1.88 inches.
Observe proper
polarity when making
load connections.
WARNING!
-48VDC Load
Connections
LOAD CONNECTIONS
3/8-16 Captive Nuts on 1” Centers
(Customer must supply or order additional hardware)
Maximum Lug Width: 1.88 inches.
Observe proper
polarity when making
load connections.
WARNING!
