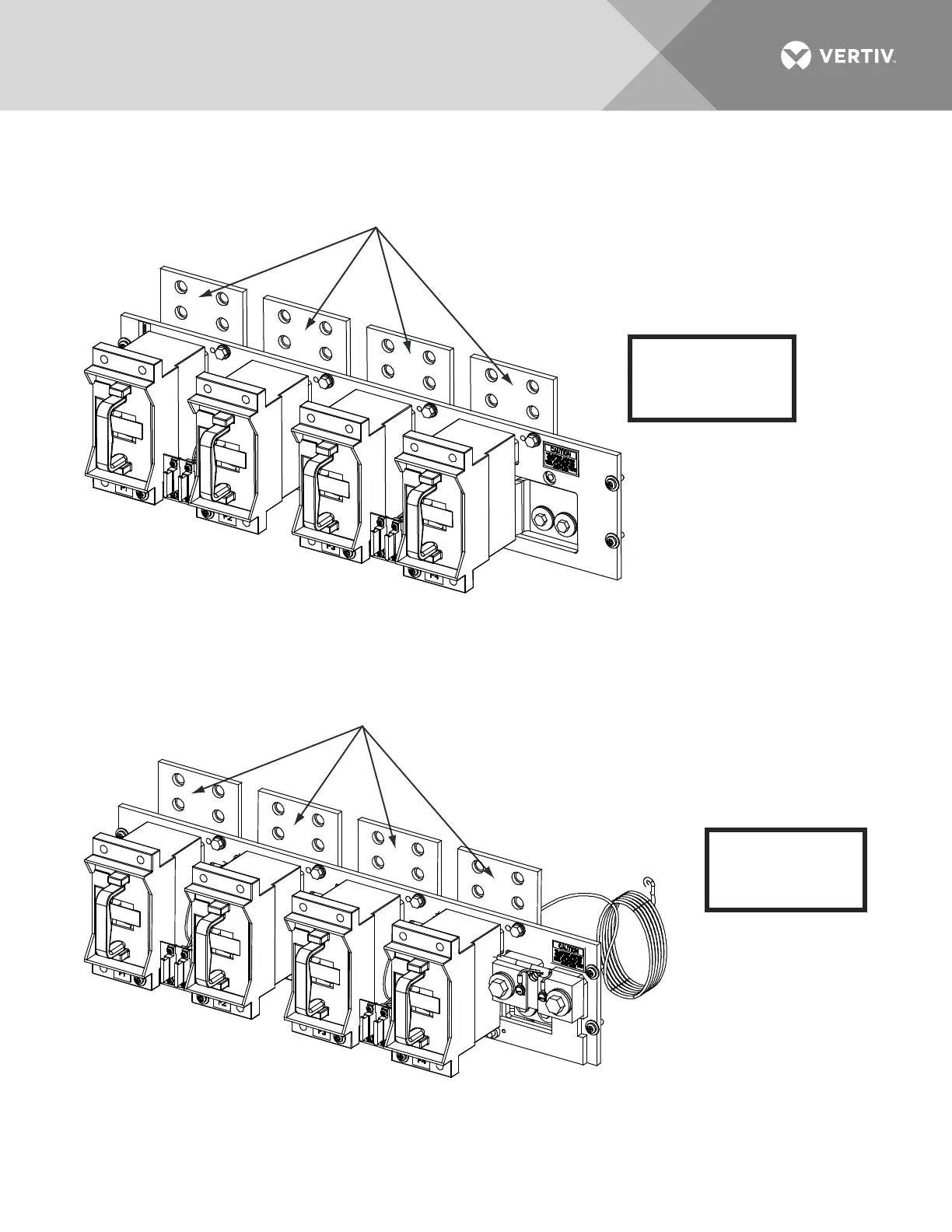

Figure 79: List AG: -48V Distribution Panel, (4) TPH Fuse Positions (without Shunts) (without Return Busbar)
Figure 80: List AH: -48V Distribution Panel, (4) TPH Fuse Positions (with Shunts) (without Return Busbar)
-48VDC Load
Connections
LOAD CONNECTIONS
3/8-16 Captive Nuts on 1” Centers
(Customer must supply or order additional hardware)
Maximum Lug Width: 1.75 inches.
Maximum fuse size is 400A.
Observe proper
polarity when making
load connections.
WARNING!
-48VDC Load
Connections
LOAD CONNECTIONS
3/8-16 Captive Nuts on 1” Centers
(Customer must supply or order additional hardware)
Maximum Lug Width: 1.75 inches.
Maximum fuse size is 400A.
Observe proper
polarity when making
load connections.
WARNING!
