Vertiv NetSure 7100 Series Installation Manual

Vertiv | NetSure 7100 Series -48V DC Power System Installation Manual (IM582127000) | Rev. BB
189

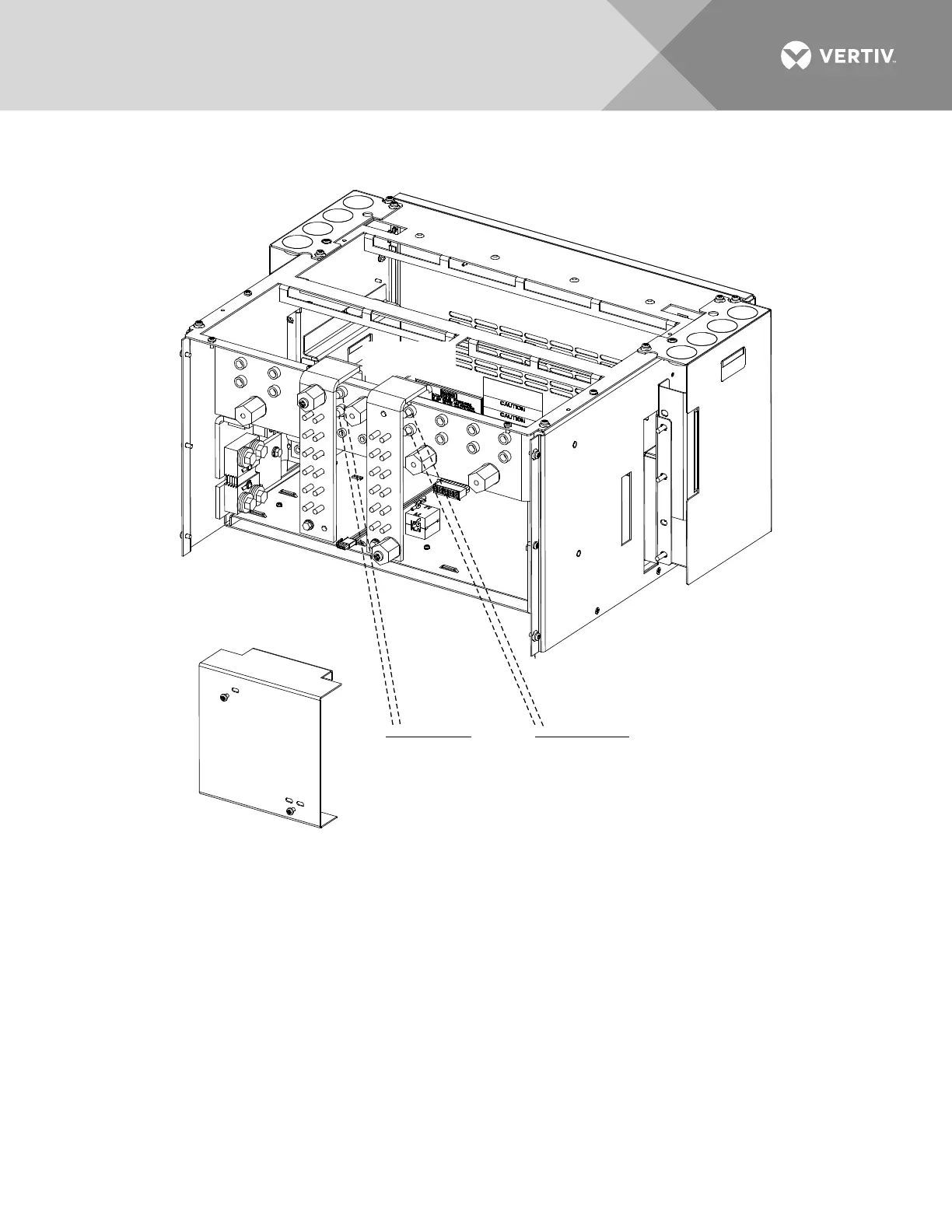

Figure 113: Battery Landing Busbar Kit P/N 553584
Rear View
Plastic Shield
(One Row Cabinet
Shown, Others Similar)
Return Angle Bracket
Secure 2 places
with (in order listed)
3/8-16 x 1-1/4” Bolt,
3/8” Belleville Lockwasher,
and 3/8” Flat Washer.
Torque to 180 in-lbs.
-48V Angle Bracket
Secure 2 places
with (in order listed)
3/8-16 x 1-1/4” Bolt,
3/8” Belleville Lockwasher,
and 3/8” Flat Washer.
Torque to 180 in-lbs.
Apply electrical anti-oxidizing
compound to busbar mating surfaces.
Rear cover removed in
illustration for clarity only.
Hardware attached
from other side.
