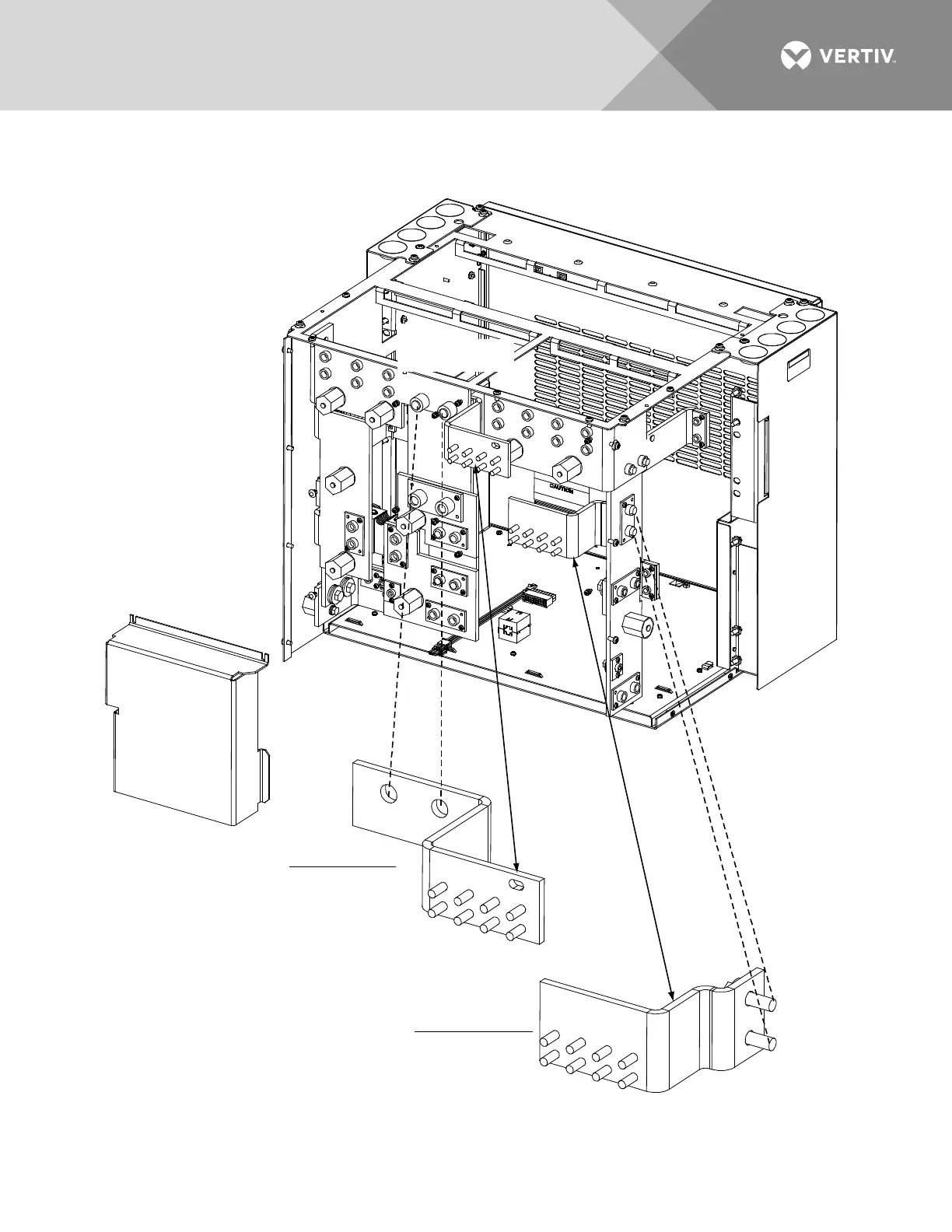

Figure 114: Battery Landing Busbar Kit P/N 555478
1. Remove top Rear Access Cover
from distribution cabinet
(note that the complete
rear cover is removed in the
illustration for clarity only).
2. Attach Return Angle Bracket.
3. Attach -48V Angle Bracket.
4. Secure rear cover shield
to distribution cabinet
after wiring.
Return Angle Bracket
Secure 2 places
with (in order listed)
3/8-16 x 1-1/4” Bolt,
3/8” Belleville Lockwasher,
and 3/8” Flat Washer.
Torque to 180 in-lbs.
-48V Angle Bracket
Secure in 2 places
with existing hardware
(in order listed)
1/2-13 x 1-1/4” Bolt,
1/2” Belleville Lockwasher,
1/2” Flat Washer.
Torque to 200 in-lbs.
(Two Row Cabinet
Shown, Others Similar)
Rear View
Plastic Shield
Apply electrical anti-oxidizing
compound to busbar mating surfaces.
Hardware attached
from other side.
