Vivotek ND8422P User Manual

VIVOTEK - Built with Reliability
User's Manual - 105

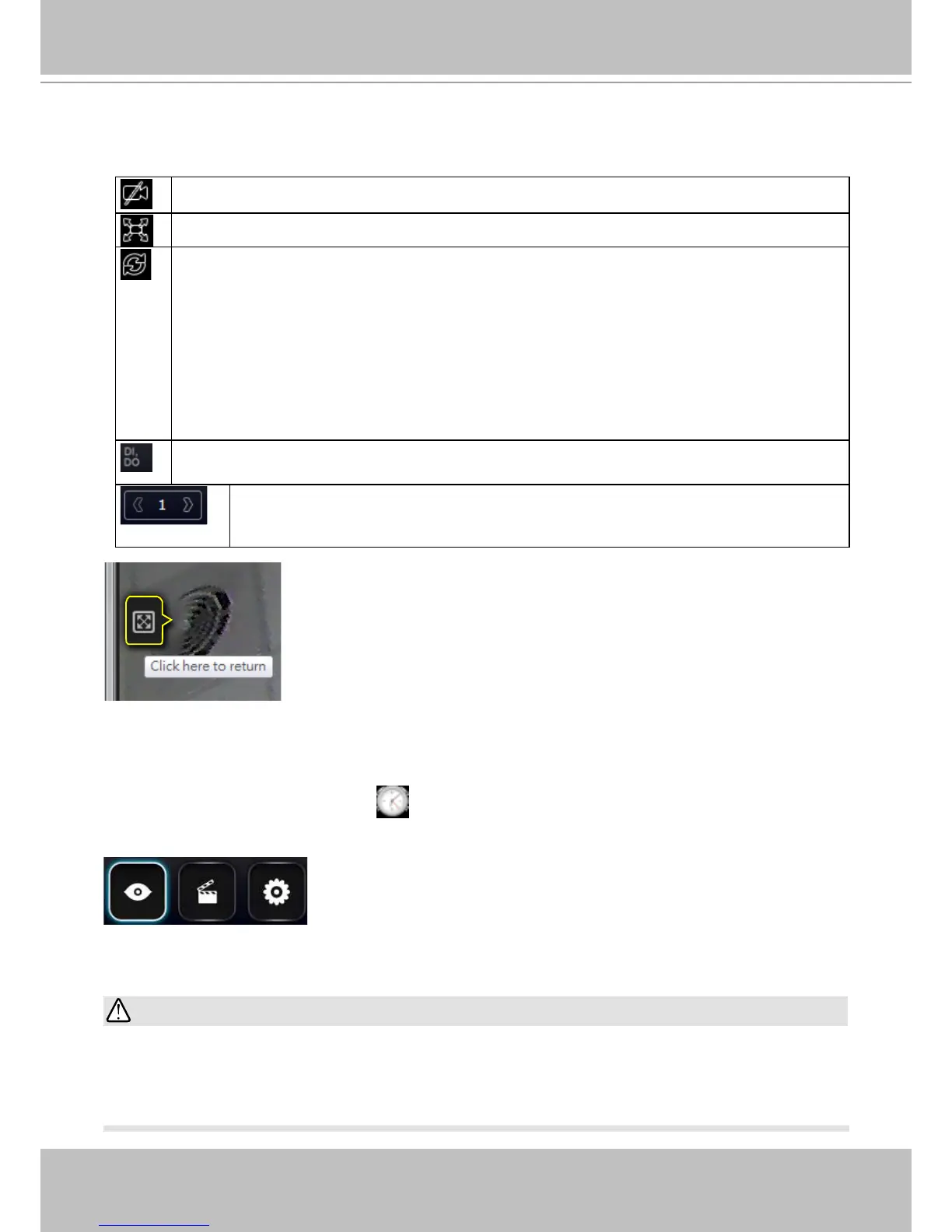

4-2-3. Layout contents
A few functional buttons are available on the Layout contents page.
Clears all view cells on the current layout.
Full view: extends the view cells on the current layout to the full of the screen.
Rotate: the rotate function lets system display successive layout pages by the
intervals of 10 seconds. The layout page that does not contain camera views will be
skipped.
A Rotate action will stop when you
1. move to another page,
2. move to a user layout,
3. click to select a view cell,
4. remove a camera from view cell.
Click to display the NVR's DI/DO statuses.
If your current layout spans across multiple pages, use the arrow buttons to
switch from one page to another. The index number of the current page will be
shown between the arrow buttons.
When your current layout is displayed in a full view, move your cursor
to the left center of the screen to return to the default Liveview screen.
The Return button will appear.
4-2-4. Logo & Menu
A logout button, system time panel , and 3 hot link buttons to access the Liveview, Search
recording clips, and System Settings utilities.
The system date and time refers to the date and time kept on the
NVR system's real time clock.
Due to the limited space for the user name, user name may be
partially displayed until you hover your mouse cursor.
Your conguration changes will be lost if you click one of the hot link buttons to move to another
utility window. For example, you have changed your Live View layout and then click on the
Playback button, you will enter the Playback window without saving your conguration. Save
your changes before you use these buttons.
IMPORTANT:

Vivotek ND8422P Specifications

General

HDD capacity	6144 GB
HDD interface	eSATA
Maximum storage capacity	12 TB
Number of HDDs supported	2
DVI-I ports quantity	0
USB 2.0 ports quantity	3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Power consumption (max)	120 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
LED indicators	HDD, Power, Status, eSATA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Video input channels	16 channels
Alarm output channels	4
Video formats supported	H.264
Resolution at capture speed	1920x1080@120fps
Minimum RAM	2 GB

Weight and Dimensions

Depth	311 mm
Width	360 mm
Height	44 mm
Weight	2700 g
