Vivotek ND8422P User Manual

VIVOTEK - Built with Reliability
User's Manual - 97
Chapter Four Login and Getting Started
4-1. Login

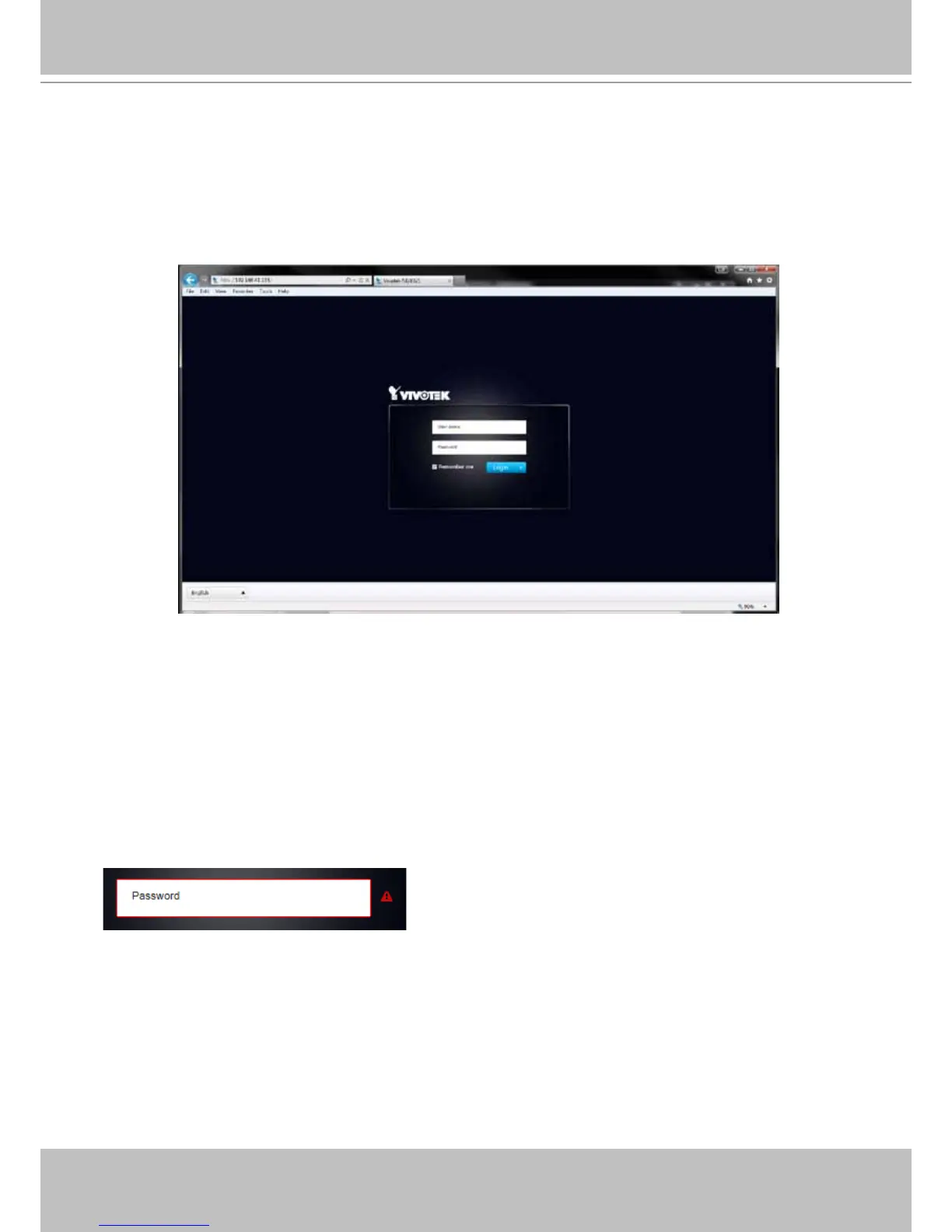

This is the login page on the browser. The minimum for resolution is 1280x960.
If you enable the IE7 compatible mode when using the IE8 browser, please disable the
compatibility function. While you are in the browser, press F12 to check its status.
It is highly recommended that you should change the default password. Please refer to Settings
> Security > User account page to see how to prevent unauthorized access. The system will
prompt you if you entered an incorrect user name or password.
Remember me: Your user name will be preserved in browser cookies for two days if you select
the Remember me checkbox. The user name will be automatically erased if you do not log in to
the system for two days.

Vivotek ND8422P Specifications

General

HDD capacity	6144 GB
HDD interface	eSATA
Maximum storage capacity	12 TB
Number of HDDs supported	2
DVI-I ports quantity	0
USB 2.0 ports quantity	3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Power consumption (max)	120 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
LED indicators	HDD, Power, Status, eSATA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Video input channels	16 channels
Alarm output channels	4
Video formats supported	H.264
Resolution at capture speed	1920x1080@120fps
Minimum RAM	2 GB

Weight and Dimensions

Depth	311 mm
Width	360 mm
Height	44 mm
Weight	2700 g
