142 - User's Manual
5-3. Camera
The camera window provides management tools to recruit or disband cameras from your NVR
conguration.

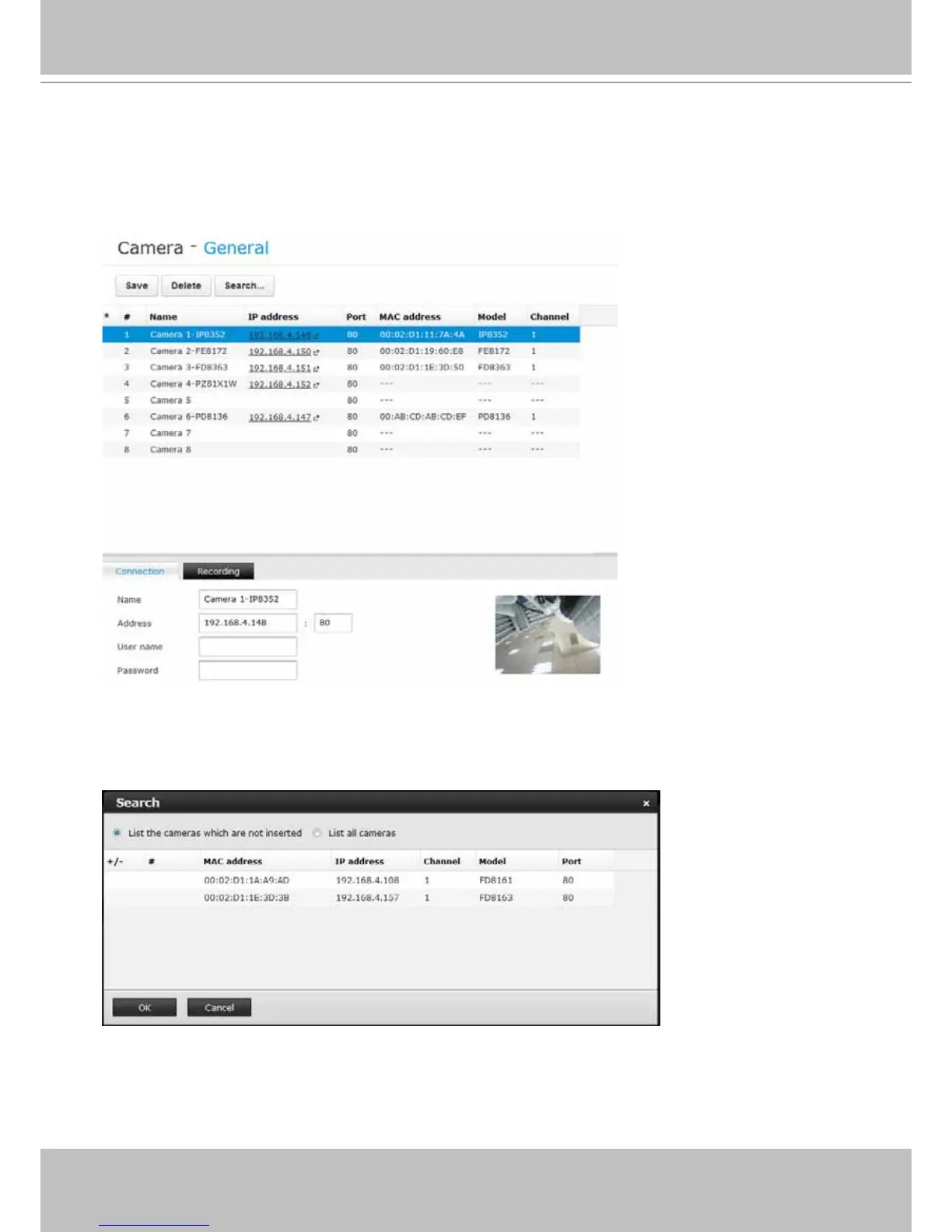

5-3-1. Camera - General
1. Search:
The Search button allows you to locate all VIVOTEK cameras within a local network. Use the
check circles on top to display all cameras or only cameras that have not been recruited.

Vivotek ND8422P Specifications

General

HDD capacity	6144 GB
HDD interface	eSATA
Maximum storage capacity	12 TB
Number of HDDs supported	2
DVI-I ports quantity	0
USB 2.0 ports quantity	3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Power consumption (max)	120 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
LED indicators	HDD, Power, Status, eSATA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Video input channels	16 channels
Alarm output channels	4
Video formats supported	H.264
Resolution at capture speed	1920x1080@120fps
Minimum RAM	2 GB

Weight and Dimensions

Depth	311 mm
Width	360 mm
Height	44 mm
Weight	2700 g
