User's Manual - 9

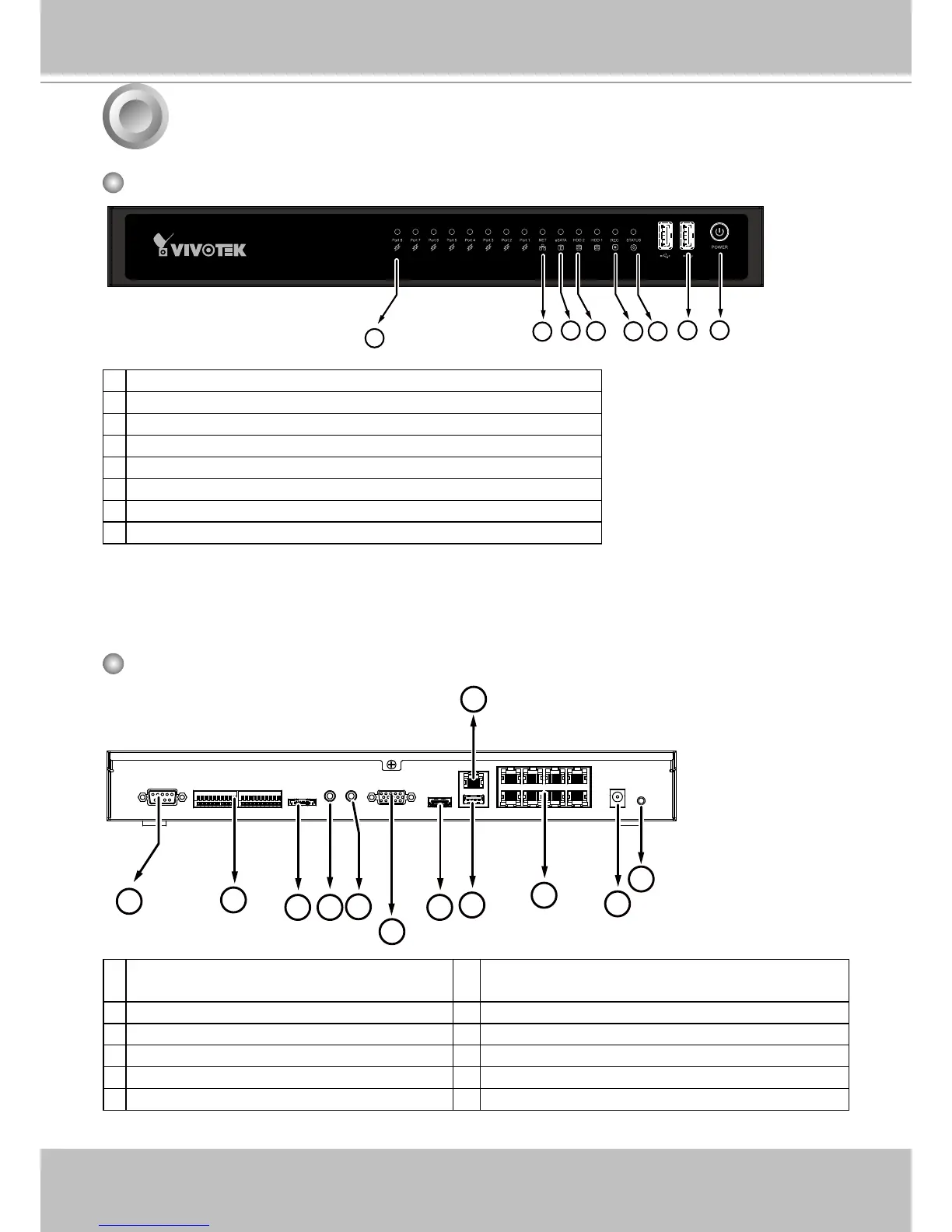

Physical Description
Front View
Rear View
1
2
3
4
5 6
7 8
1
2
3 4
5
6
7
8
9
10
11
12
1 LAN and PoE activity LED
2 Network status LED
3 eSATA activity LED
4 HDD activity LED
5 Recording activity LED
6 System status LED
7 USB ports
8 Power button
1 RS-232 for opening a terminal console
(for debug purposes only)
7 HDMI
2 DI/DO terminal block 8 USB port
3 eSATA port 9 GbE uplink port
4 Audio OUT 10 10/100Mbit 802.3af PoE Ethernet
5 Audio IN 11 Power socket (DC56V, 2.5A)
6 VGA 12 Reset button
