User's Manual - 189

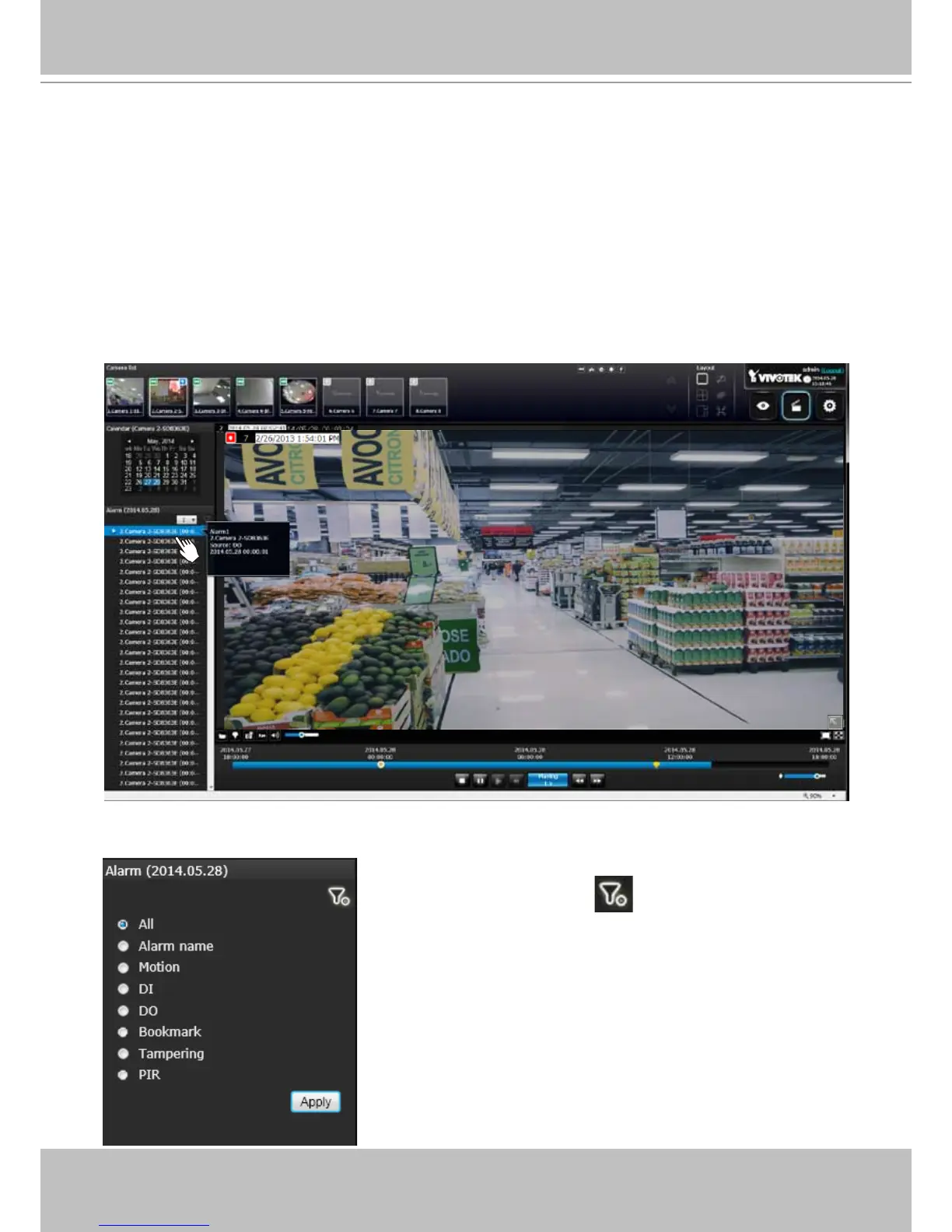

When you selected a day when alarms took place on a camera, the alarms will be listed on
the Alarm panel. Up to 200 entries can be listed on a single page, and a max. of 1,000 entries
across multiple pages.
You may then,
1. Mouse over the alarm thumbnails and click on the play button. The Playback window will then
play back the video recorded by the time of the occurrence.
2. Unlike the Alarm playback function on the Liveview window, which only plays back the
related video for only one minute, the alarm playback will continue throughout the recording
of that day.
6-2-2. Past Alarms and Bookmarks
If you set up multiple triggering sources on a camera,
you can use the Alarm lter button to nd the alarms of
a specic type.
You can select the check circles to narrow down the types of
listed alarms using search criteria by Alarm name, Motion,
DI, DO, Bookmark, Tampering, or PIR.
Note that if searching by the Alarm name, the search does
not apply to the camera model name that is automatically
appended to the description of an alarm. Only the name of an
alarm should apply in the search.

Vivotek ND8422P Specifications

General

HDD capacity	6144 GB
HDD interface	eSATA
Maximum storage capacity	12 TB
Number of HDDs supported	2
DVI-I ports quantity	0
USB 2.0 ports quantity	3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Power consumption (max)	120 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
LED indicators	HDD, Power, Status, eSATA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Video input channels	16 channels
Alarm output channels	4
Video formats supported	H.264
Resolution at capture speed	1920x1080@120fps
Minimum RAM	2 GB

Weight and Dimensions

Depth	311 mm
Width	360 mm
Height	44 mm
Weight	2700 g
