Vivotek ND8422P User Manual

VIVOTEK - Built with Reliability
User's Manual - 195

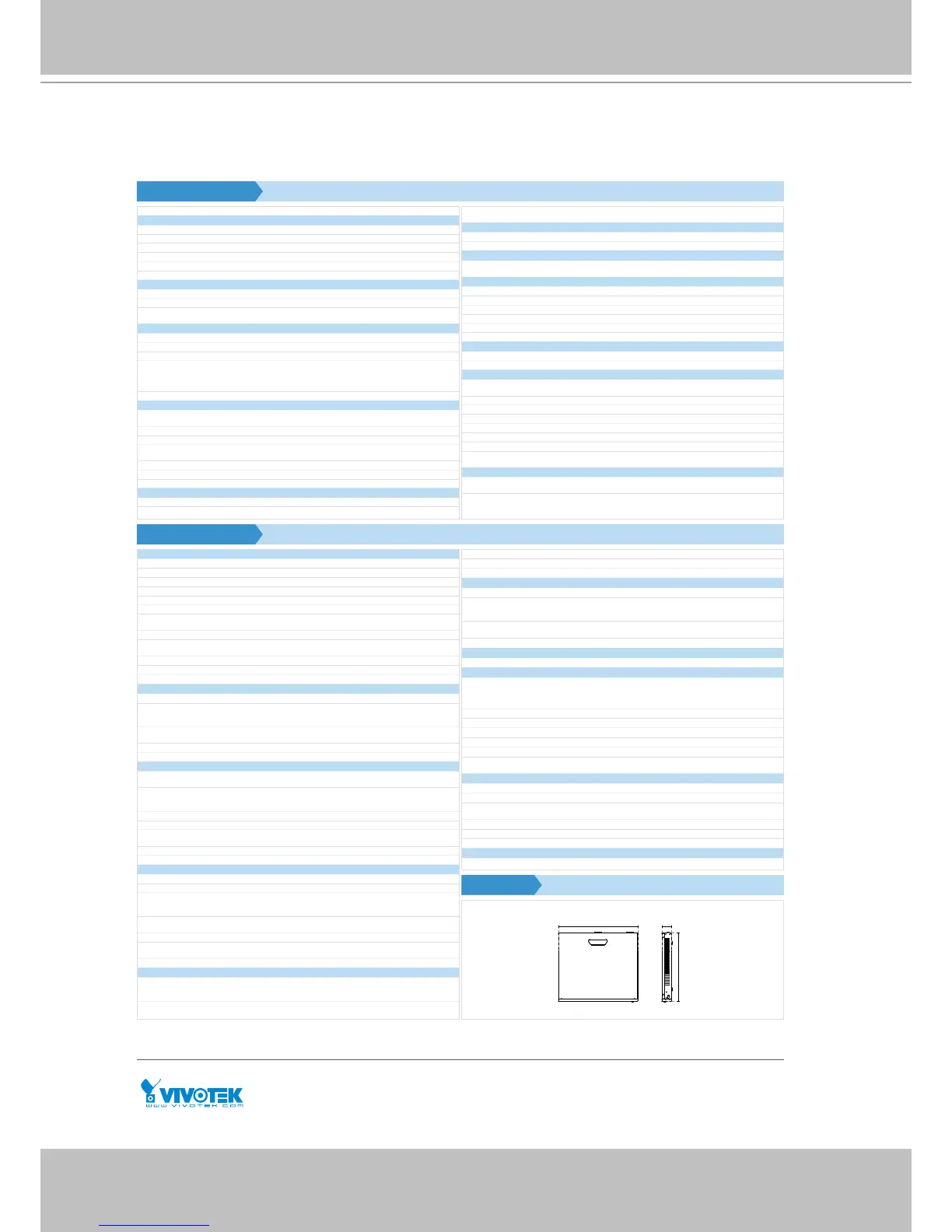

Technical Specifications
6F, No.192, Lien-Cheng Rd., Chung-Ho,
New Taipei City, 235, Taiwan, R.O.C.
T: +886-2-82455282 F: +886-2-82455532
E: sales@vivotek.com
VIVOTEK INC.
2050 Ringwood Avenue,
San Jose, CA 95131
T: 408-773-8686 F: 408-773-8298
E: salesusa@vivotek.com
VIVOTEK USA
Ver. 9
All specifications are subject to change without notice. Copyright © VIVOTEK INC. All rights reserved.
Randstad 22-133, 1316BW Almere,
The Netherlands
T: +31(0)36-5298-434
E: saleseurope@vivotek.com
VIVOTEK Europe
602, Best sky Tower, Plot No. F-5,
Netaji Subhash Place, Pitam Pura, Delhi-110 034
T: +91-11-45137465
E: salesindia@vivotek.com
VIVOTEK India
Model ND8322P
System
OS EmbeddedLinux
CPU ARM Processor
Flash 256MB
RAM 1GB
Watchdog Hardware + Software
Power Restoration System Restart Automatically after PowerRecovery
Storage
HDD Devices Internal x2
HDD Max. Capacity 6TB x2
DiskManagement Create, Format and Remove Disk
HDD S.M.A.R.T
Video
Video Output 1 x HDMI, 1 x VGA
Resolution 1920 x 1080, 1280 x 720
Graphics Decoder Hardware decoding
DecordingCapacity H.264:
2560 x 1920 @ 30 fps(1-CH)
1920 x 1080 @ 120 fps(4-CH)
1280 x 720 @ 240 fps (8-CH)
Cam
era Position Change theviewcell position onthe Live View screens
External Interface
USB Interface Front: 2 (USB 2.0)
Back: 1 (USB2.0)
Alarm In 8
Alarm Out 4
Audio 1 x 3.5 Phone JackAudio Output
1 x 3.5 Phone JackAudio Input (Reserved)
External HDD 1 x eSATA Port
RS232 1 Port (Reserved)
RS485 1 Port (Reserved)
Network
Network Interface 1 x RJ-45 10/100/1000Mbps Ethernet interface
PoE 8x802.3af Compliant PoE Ports (Total Max. 80W)
Record
MaximumChannel 8
RecordThroughput (MB) 64 Mbps
Network Throughput (MB) 48 Mbps
AudioFormat G.711, G.726
Video Format MJPEG, H.264
Video Resolution VGA, 1MP,2MP, 3MP & 5MP Camera
Recording Time (sec.) Pre-Record: 5 (max. 10)
Post-Record:20 (max. 300)
Recording Stream Single
Recording Mode Continuous, Schedule, Manual, Event, Activity Adaptive
Streaming
Recording Setting Recycle (unit: Day)
Recording Path Local Path
RecordVideo Format 3GP
LiveView (Local Display)
Stream Application Auto Adaptive Stream
LiveView Display 8 Channel
MultiLayout display:
1x1,1x3 (CorridorView), 2x2, 3x3, 1+5, 1+3, 1+1+3 (1P), 1+3+3(1P)
MonitorEnhancement OSD Display (NVR), OSD Display (Camera), Camera Information,
Remote I/O Control, Event Notification, Aspect Ratio
PTZ Control Panel Control
PTZ Operation Direction Control, Home, Iris, Preset, Patrol (Group), PiPControl
Playback (Local Display)
Playback Display 1 Channel
MultiLayout Display: 1x1
Playback Control R
egular(Play, Pause, Stop), Rewind, Next / Previous Frame, Speed
Control, Calendar, Event,Timeline, Timeline Scale, Thumbnail
(Storyboard)
Video Search By calendar, by date/time, by alarm
Thumbnail Explorer(Storyboard) Listing thethumbnail of recordedvideo (Max. 2 CH)
MonitorEnhancement OSD Display (Camera), Event Notification, Aspect Ratio, PiP
Control
Snapshot JPEG
Video Clip Export EXE
LiveView (Remote)
Stream Application Stream Selection
AudioCapability One Way
LiveView Display
8 Channel
MultiLayout display:
1x1, 2x2, 3x3, 1+3, 1+5
MonitorEnhancement OSD Display (NVR), Drag & Drop, Image Freeze, Audio Control,
Remote I/O Control, Event Notification, Bookmark
PTZ Control Panel Control
PTZ Operation Direction Control, Home, Zoom, Focus, Iris, Preset, Patrol (Group),
PiP Control
Snapshot JPEG
Playback (Remote)
Playback Display 4 Channel
MultiLayout display:
1x1, 2x2, 1+3
Playback Control Regular (Play, Pause,Stop),Next Frame,Speed Control, Calendar,
Timeline,Ti
meline Scale, Bookmark
Hardware Information
Software Information
Protocols IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP,
DHCP, NTP, DNS,DDNS, IP Filter
Power
Power Input DC56V2.5A
Power Consumption Max. 120W
LED Indicator
LED Indicator Power, Status, Record, HDD1, HDD2, eSATA, Ethernet,
Port1~Port8
Mechanic
Form Factor Desktop
Opateration Buttons Power (Front) / Reset (Back)
Dimensions 360 mm (W) x 311 mm(D) x 44 mm (H)
Weight 2.7kg (without HDD)
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Humidity 0~95%
General
Safety Certifications CE, LVD, FCC, VCCI, C-Tick
Warranty 24 months
Client PC Requirements
Operating System Microsoft Windows OS:
XP/Vista/7/8/2008/2012
CPU IntelCeleron or above
Memory 2 GB or above
Ethenet 10/100Mbps
Display Resolution 1024 x 768 pixels orabove
Web Browser Internet Explorer10 (32 bit) or above
Software AP Installation Wizard 2,ST7501, VAST
MobileAPP, Tablet APP EZconnect, iViewer (iOS)
EZconnect, iViewer (Android)
Accessories
CD User's Manual, Quick Installation Guide(QIG), Installation Wizard
2
Others PowerAdapter,Power Cord, QuickInstallation Guide,
16 x H.D.D. Screws, 4 x H.D.D. Brackets, 1 x USB Mouse, 2 x SATA
Cables
MonitorEnhancement OSD Display (NVR), Drag & Drop, Audio Control, PiPControl
Snapshot JPEG
Video Clip Export EXE
Alarm Management
Schedule Type Continuous,Schedule, Manual
Event Motion Detection, PIR Detection, Tampering Detection, Digital
Input(Camera), DigitalOutput (Camera), Connection Abnormal,
StorageAbnormal, Storage Full,Camera NetworkLoss, DI, DO
Action Record, Email (Text), Email (Snapshot), FTP, Buzzer, PTZ Control
(Go toPreset), NVRDO, CameraDO
RecordingTi
me (sec.) Pre-Record: 5 (max. 10), Post-Record: 20 (max.300)
Backup
Manual USB Dongle(FAT Format)
System
UserManagement User Account: 10
UserAccount Time Limit: 10 mins
UserLevel: Administrator / Regular User
UserFeature Definition: By Camera
Log System, Recording, User, Error
Date&Time Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
Firmware Manual update
Restore Default Supported
Backup/Restore (Configuration) Supported
Language English, French, Germa
n, Italian, Japanese, Portuguese, Russian,
Spanish, Simplified Chinese, Traditional Chinese, Korean, Czech
Camera Intergration
Insert Camera Manual, Search
Video (Media)Setting Compression, Resolution, FPS, Video Quality
Image Setting Image Display
Image Adjustment
PTZ Control Panel Control
PTZ Operation Direction Control, Home, Preset,Patrol (Group)
Motion Detection Supported
Device Intergration
UPS APC Model Compatible
Dimensions
360 mm 44 mm
311 mm

Vivotek ND8422P Specifications

General

HDD capacity	6144 GB
HDD interface	eSATA
Maximum storage capacity	12 TB
Number of HDDs supported	2
DVI-I ports quantity	0
USB 2.0 ports quantity	3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Power consumption (max)	120 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
LED indicators	HDD, Power, Status, eSATA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Video input channels	16 channels
Alarm output channels	4
Video formats supported	H.264
Resolution at capture speed	1920x1080@120fps
Minimum RAM	2 GB

Weight and Dimensions

Depth	311 mm
Width	360 mm
Height	44 mm
Weight	2700 g
