User's Manual - 43
Chapter Three
Configuation Using the Local Console
The Main Control Portal

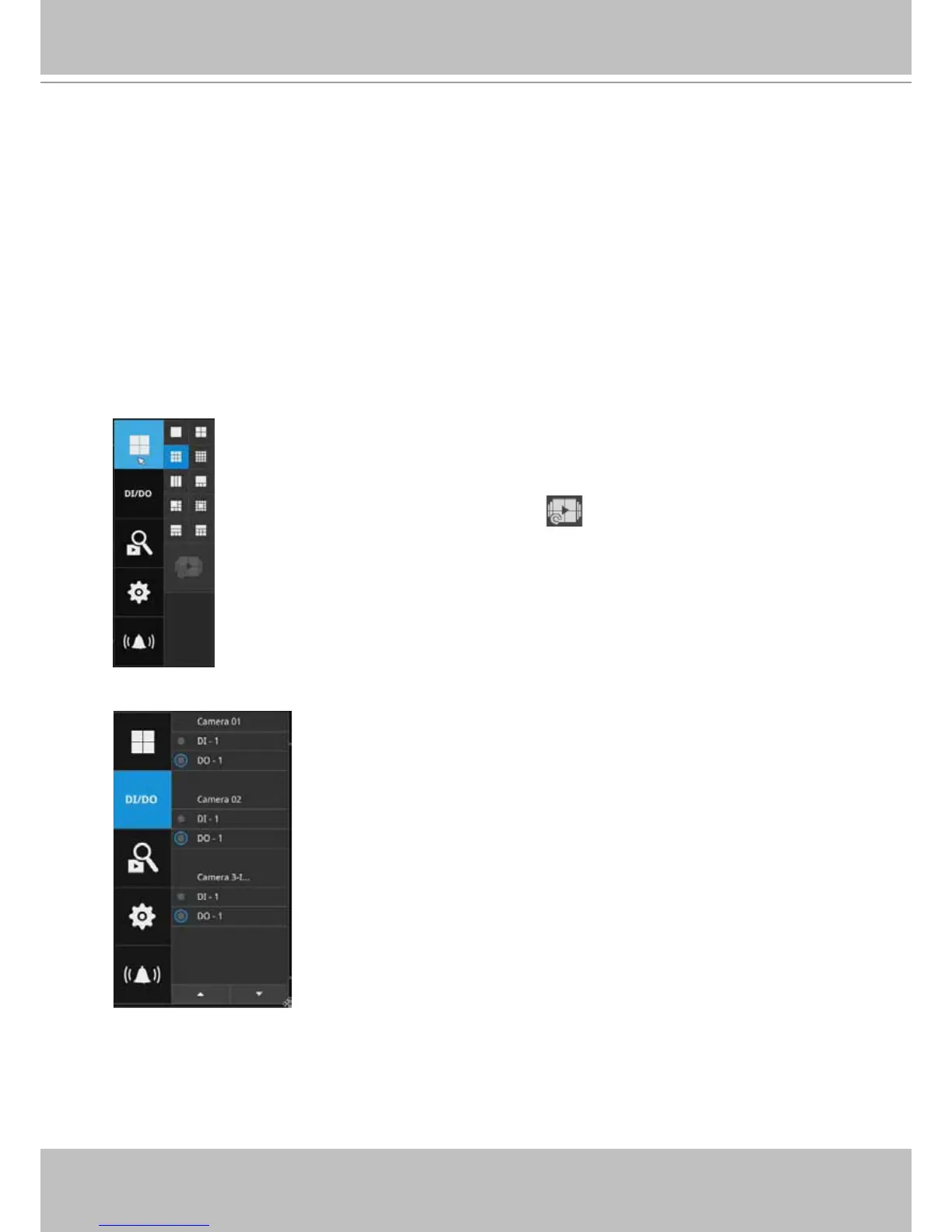

3-1. Layout
The rst functional button is Layout. You can select the 1x1, 1x3, 2x2, 3x3,
4x4, 1+5, 1+12, 1+3, 1+1+3, 1+3+3 layout as the screen display. If you select
the single view layout, the rotation button
will appear. Click the rotation
button below to let the system swap the display of different cameras by every 10
seconds. The rotation speed is congurable via Settings > System > Display.
Note that the 4x4 and the 1+12 layouts are only available for the ND8422P.
Move your mouse cursor across the screen to display the portal.
3-2. DI/DO
Click on the DI/DO button to display the full list of all DI and DO
signals (whether they are connected or not) from all cameras in the
conguration. If a digital input signal is triggered, e.g., the DI-4 on the
left, its indicator will turn solid white.

Vivotek ND8422P Specifications

General

HDD capacity	6144 GB
HDD interface	eSATA
Maximum storage capacity	12 TB
Number of HDDs supported	2
DVI-I ports quantity	0
USB 2.0 ports quantity	3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Power consumption (max)	120 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
LED indicators	HDD, Power, Status, eSATA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Video input channels	16 channels
Alarm output channels	4
Video formats supported	H.264
Resolution at capture speed	1920x1080@120fps
Minimum RAM	2 GB

Weight and Dimensions

Depth	311 mm
Width	360 mm
Height	44 mm
Weight	2700 g
