94 - User's Manual

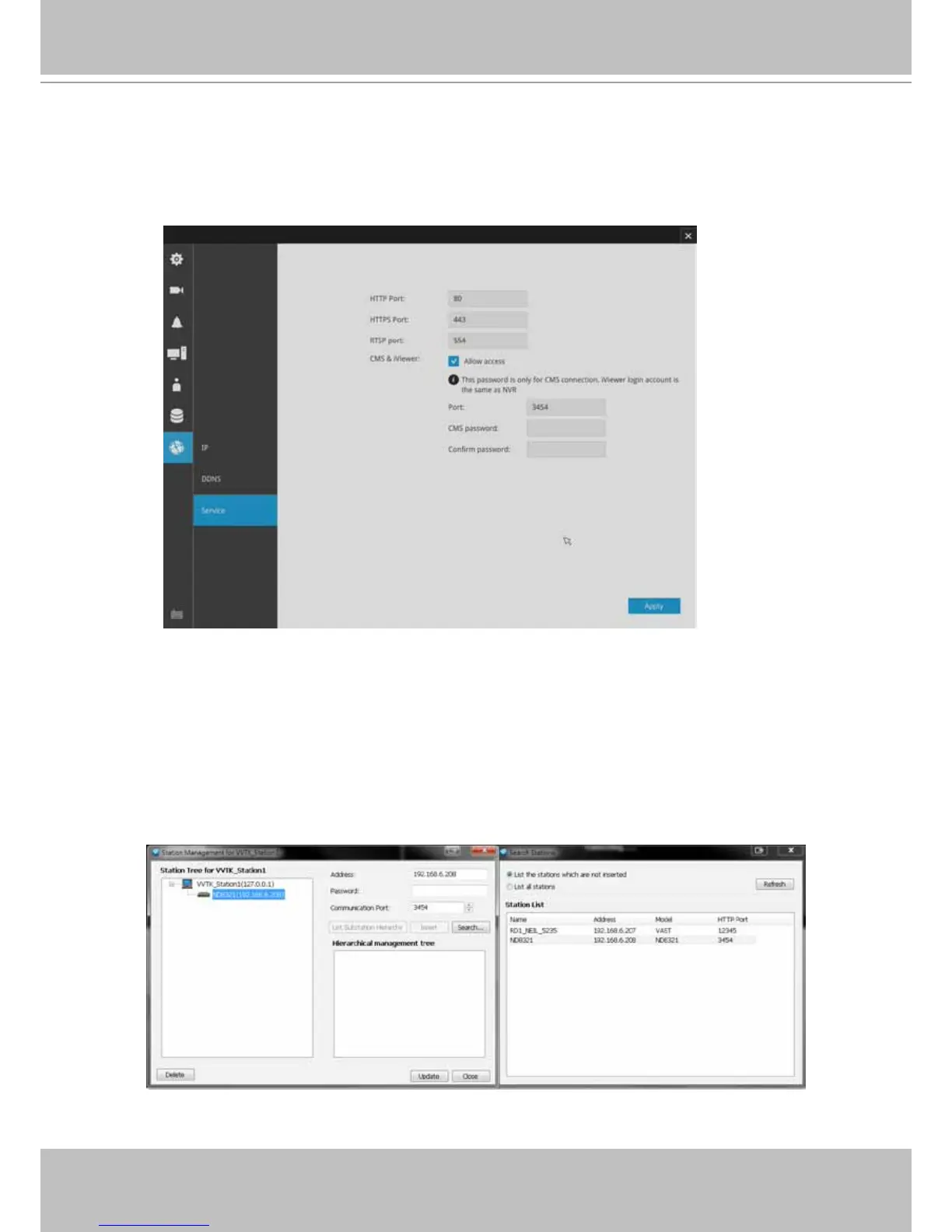

Settings - Service
By default, the NVR service and video streaming are accessed via HTTP port 80 and RTSP port
554. You can designate a different port number if the need arises. Usually it is not necessary to
change these ports. HTTPS encrypted connection is enabled by default.
Instead of a web console, you can also access the NVR and the subordinate cameras using the
iViewer and VIVOTEK's VAST software. The NVR can be managed as one of the sub-stations
in a hierarchical device structure.
Set up a password for access from the VAST server before you can join the NVR to a VAST
conguration. For access from the iViewer, you log in using the same user name and password
for the login to the NVR.
Below is the screen showing the sub-station recruitment process from a VAST server.

Vivotek ND8422P Specifications

General

HDD capacity	6144 GB
HDD interface	eSATA
Maximum storage capacity	12 TB
Number of HDDs supported	2
DVI-I ports quantity	0
USB 2.0 ports quantity	3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Power consumption (max)	120 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
LED indicators	HDD, Power, Status, eSATA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Video input channels	16 channels
Alarm output channels	4
Video formats supported	H.264
Resolution at capture speed	1920x1080@120fps
Minimum RAM	2 GB

Weight and Dimensions

Depth	311 mm
Width	360 mm
Height	44 mm
Weight	2700 g
