4-3-5. Alarm Panel
Page selector
Alarm filter

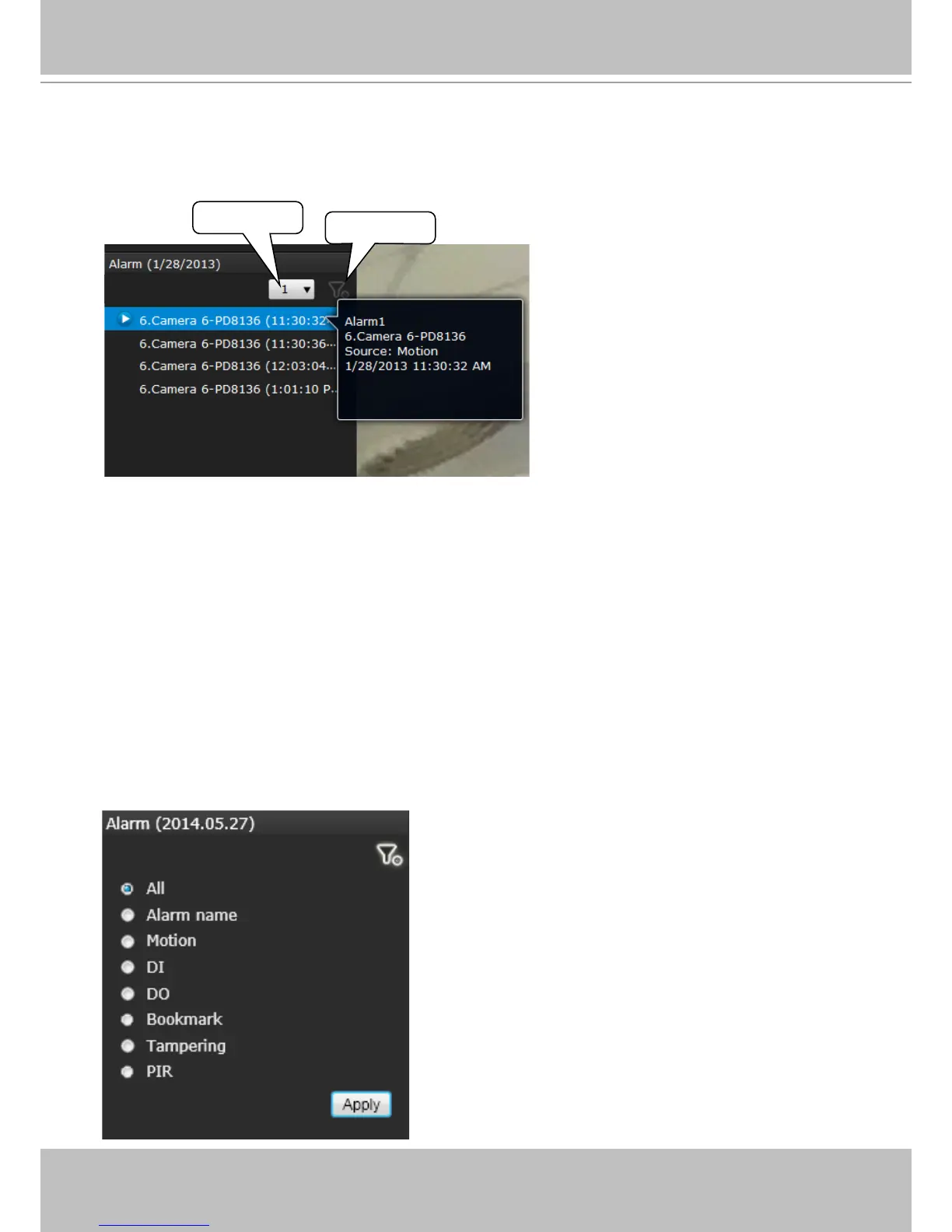

The alarm panel displays the alarms or bookmarks recorded by the day of recording. Two
additional buttons are available: Page selector and Alarm lter.
• A playback button will be available with an alarm-triggered recording. The alarm panel in the
Playback window also supports the List mode and Icon mode that are similar to that in the
Liveview window.
• There can be numerous alarms occurring in a day. Use the page selector to display different
pages of alarm entries. Up to 200 entries can appear on one page. Note that the new alarms
that occurred seconds or minutes ago may not be instantaneously listed on the page.
If bookmarks are listed in the Alarm list, a bookmark entry will look like this:
Camera index. camera name (time) - bookmark
Alarm lter:
Use the alarm lter to nd out specic alarms. Use the check circles below to narrow down your
search criteria by Alarm name or alarm type by Motion detection, DI, DO, Tampering, PIR, or
those manually marked down as Bookmarks.
The alarm name is dened by users in the Settings
> Alarm page.
See page 163 for how to congure
alarms.

Vivotek ND8422P Specifications

General

HDD capacity	6144 GB
HDD interface	eSATA
Maximum storage capacity	12 TB
Number of HDDs supported	2
DVI-I ports quantity	0
USB 2.0 ports quantity	3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Power consumption (max)	120 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
LED indicators	HDD, Power, Status, eSATA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Video input channels	16 channels
Alarm output channels	4
Video formats supported	H.264
Resolution at capture speed	1920x1080@120fps
Minimum RAM	2 GB

Weight and Dimensions

Depth	311 mm
Width	360 mm
Height	44 mm
Weight	2700 g
