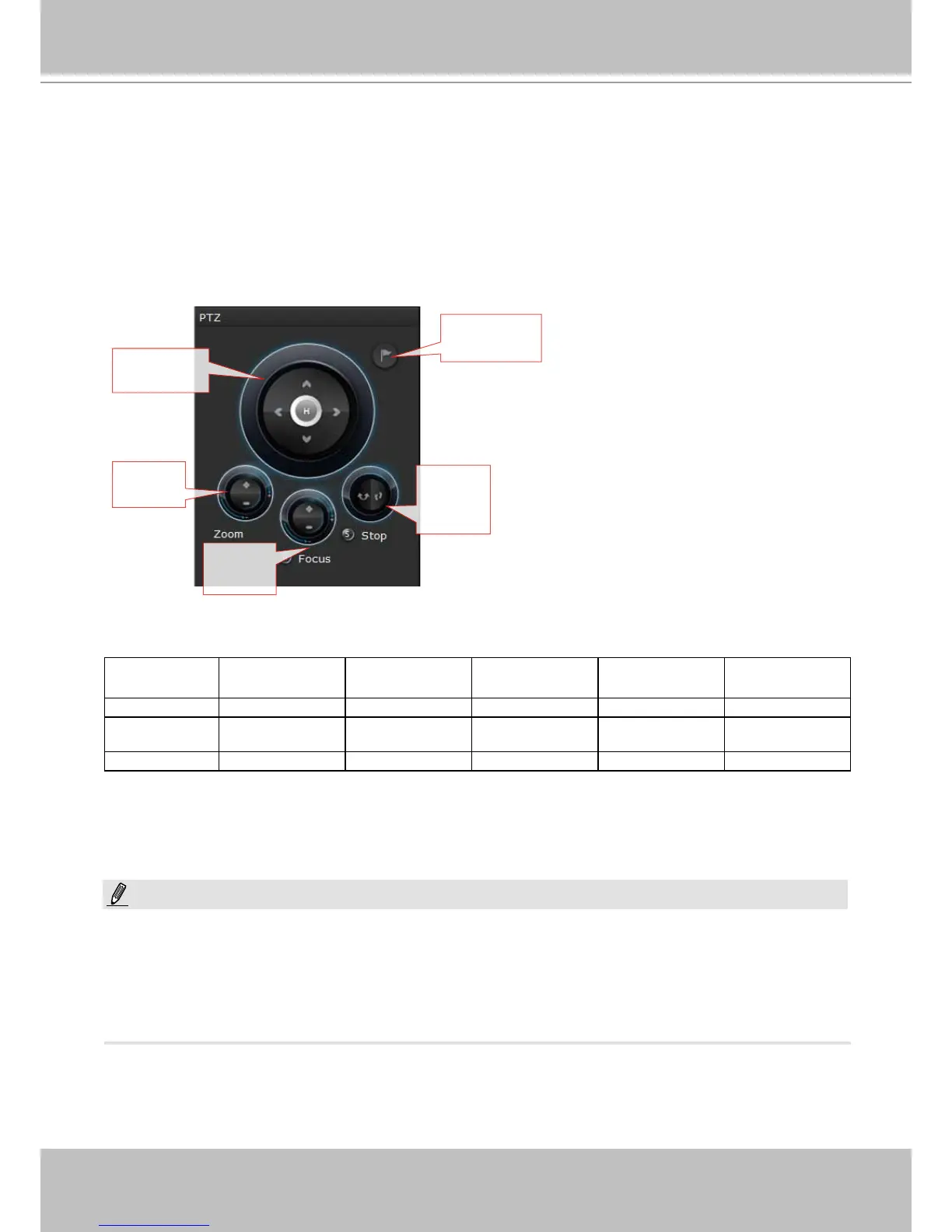

4-2-6. PTZ panel
The PTZ panel takes effect for cameras that come with mechanical PTZ functions. It does not
support digital PTZ functions. To utilize its functions, select a view cell populated by a PTZ
camera, such as a speed dome.
Depending on the individual functions that come with PTZ cameras, some functions will not be
available for every cameras. For example, the zoom controller will not apply for a PTZ camera
that comes without a mechanized zoom module, such as PD8136 and PT8133.
Pan/Tilt
controller
Preset locaon
selector
Zoom
controller
Auto
pan/patrol
controller
Focus
controller
Model (series) Pan/tilt
controller
Preset location Zoom controller Focus controller Auto Pan/Patrol
controller
PD Yes Yes No No Yes
VS (VS8100
and 8102)
* Depends Depends Depends Depends No
VS84xx/88xx Depends Depends Depends Depends Depends
Listed below are the camera models and the types of supported PTZ controls:
* If the analogue cameras connected through the video server support PTZ mechanism.
On the Liveview window, currently the Continuous Move and the Click-on-image functions for
PTZ cameras are not supported. Neither can you zoom in/out using the mouse wheel.
NOTE:

Vivotek ND8422P Specifications

General

HDD capacity	6144 GB
HDD interface	eSATA
Maximum storage capacity	12 TB
Number of HDDs supported	2
DVI-I ports quantity	0
USB 2.0 ports quantity	3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Power consumption (max)	120 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
LED indicators	HDD, Power, Status, eSATA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Video input channels	16 channels
Alarm output channels	4
Video formats supported	H.264
Resolution at capture speed	1920x1080@120fps
Minimum RAM	2 GB

Weight and Dimensions

Depth	311 mm
Width	360 mm
Height	44 mm
Weight	2700 g
