114 - User's Manual
1R (Regional view)
The 1R mode (or rectilinear) provides access to one image section within the hemisphere. You can zoom
in or out (using the mouse wheel or PTZ panel) or travel through to other areas within the hemisphere
using simple mouse clicks and drags. A single click on a particular object can bring the object to the
center of your view window. Click and hold down the left mouse button, and you can swipe the view both
horizontally and vertically.

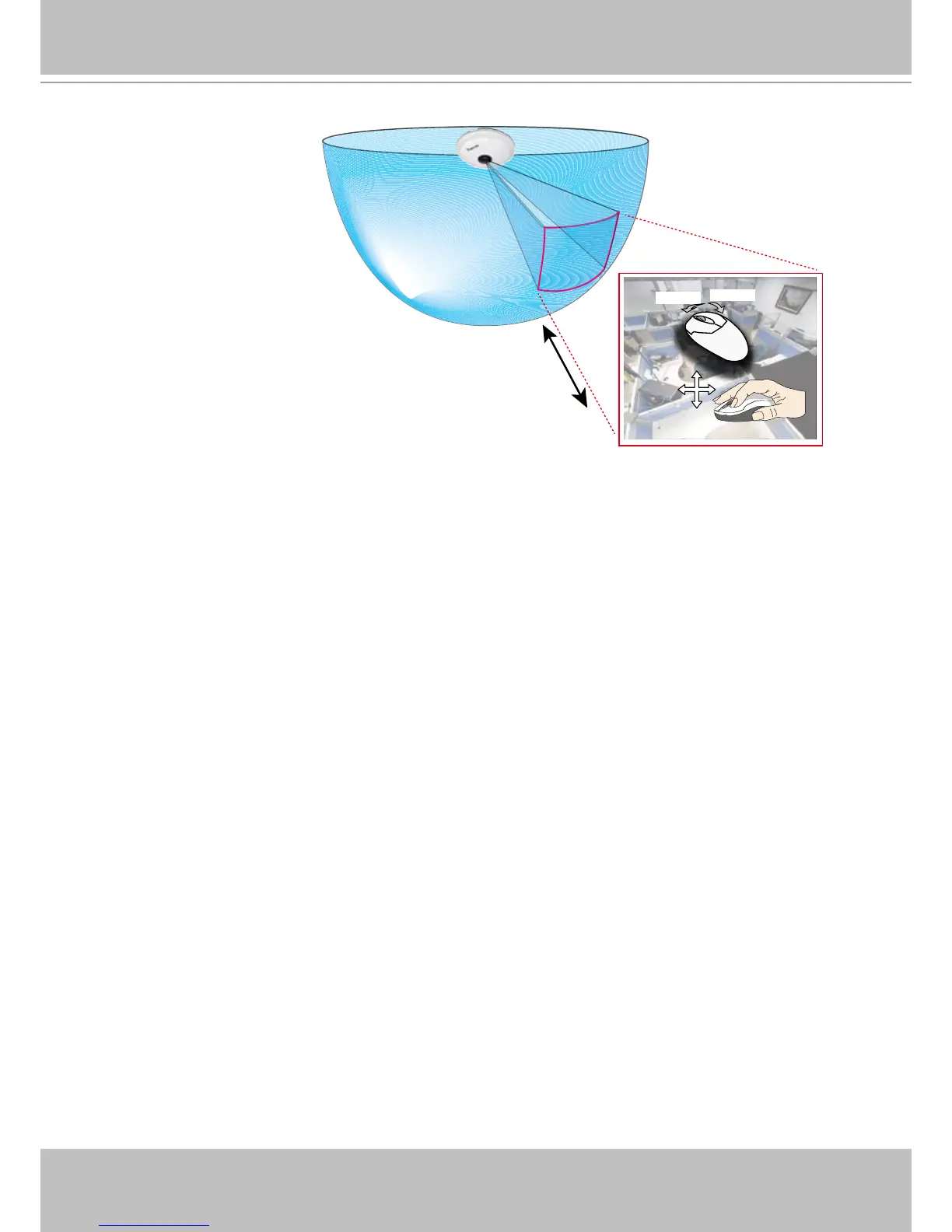

1R View (Single Regional View)
Zoom in/out
&
all-directional
navigation control
Zoom In
Zoom Out
Note that if your sheye mounting type is set to the Wall Mount type, your screen control in the view cell
will be limited to 90° pan and tilt. Make sure your mounting type and camera settings have been properly
congured.
Because sheye lens can cover a wide surveillance area, you can insert a sheye camera into multiple
view cells, and let different regional views display in these view cells. In this way, you can have a glimpse
of multiple areas of interest, and the conguration of these different view windows will be preserved when
you save your layout settings.

Vivotek ND8422P Specifications

General

HDD capacity	6144 GB
HDD interface	eSATA
Maximum storage capacity	12 TB
Number of HDDs supported	2
DVI-I ports quantity	0
USB 2.0 ports quantity	3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Power consumption (max)	120 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
LED indicators	HDD, Power, Status, eSATA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Video input channels	16 channels
Alarm output channels	4
Video formats supported	H.264
Resolution at capture speed	1920x1080@120fps
Minimum RAM	2 GB

Weight and Dimensions

Depth	311 mm
Width	360 mm
Height	44 mm
Weight	2700 g
