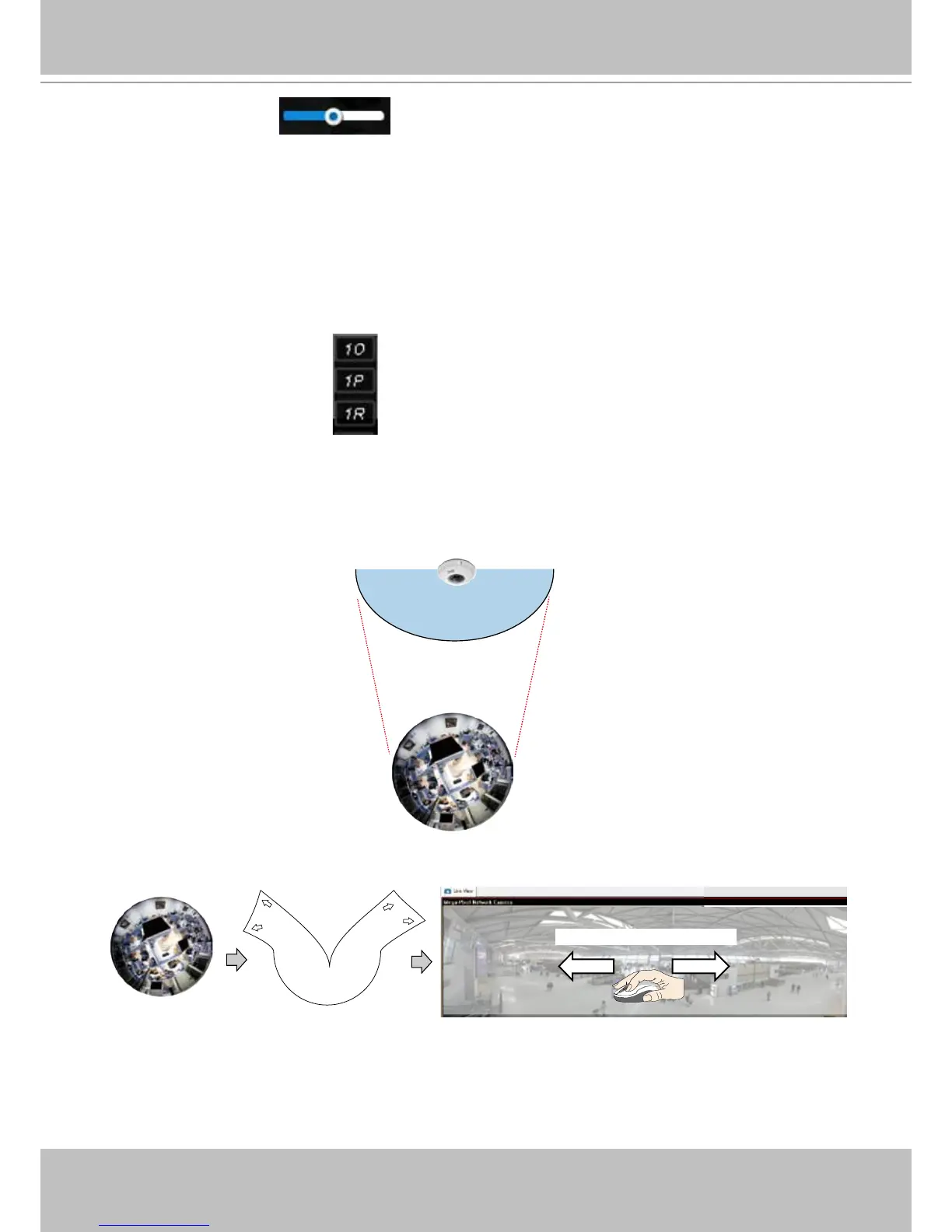

User's Manual - 113
9. Volume controller:
The volume control takes effect when audio input from the network camera is available. Audio
is heard only from a focused window, one that you selected by a mouse click from the Liveview
panel. Some network cameras do not come with an embedded microphone, and its audio is
disabled by system default. The actual sound level is also dependent on the system volume of
the PC having a web console with the NVR.
The sound volume conguration will not be preserved when a camera is removed from a view
cell, web console is restarted, or when the Liveview layout is re-congured.
10. Fisheye display modes:
A view mode selector icon appears in a view cell of a sheye camera. You can click to select a
viewing mode. The viewing modes are illustrated as follows:
1O View (Original View)
180° Hemispheric
Swipe to scroll horizontally
1O (Original view)
1P (Panoramic view)

Vivotek ND8422P Specifications

General

HDD capacity	6144 GB
HDD interface	eSATA
Maximum storage capacity	12 TB
Number of HDDs supported	2
DVI-I ports quantity	0
USB 2.0 ports quantity	3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Power consumption (max)	120 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
LED indicators	HDD, Power, Status, eSATA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Video input channels	16 channels
Alarm output channels	4
Video formats supported	H.264
Resolution at capture speed	1920x1080@120fps
Minimum RAM	2 GB

Weight and Dimensions

Depth	311 mm
Width	360 mm
Height	44 mm
Weight	2700 g
