4-3. Graphical Layout and Screen Elements - Search recording
clips
Camera list
Layout
contents
Logo & Menu
Playback panel
Alarm
panel
Calendar
1
2
3
4
5
6

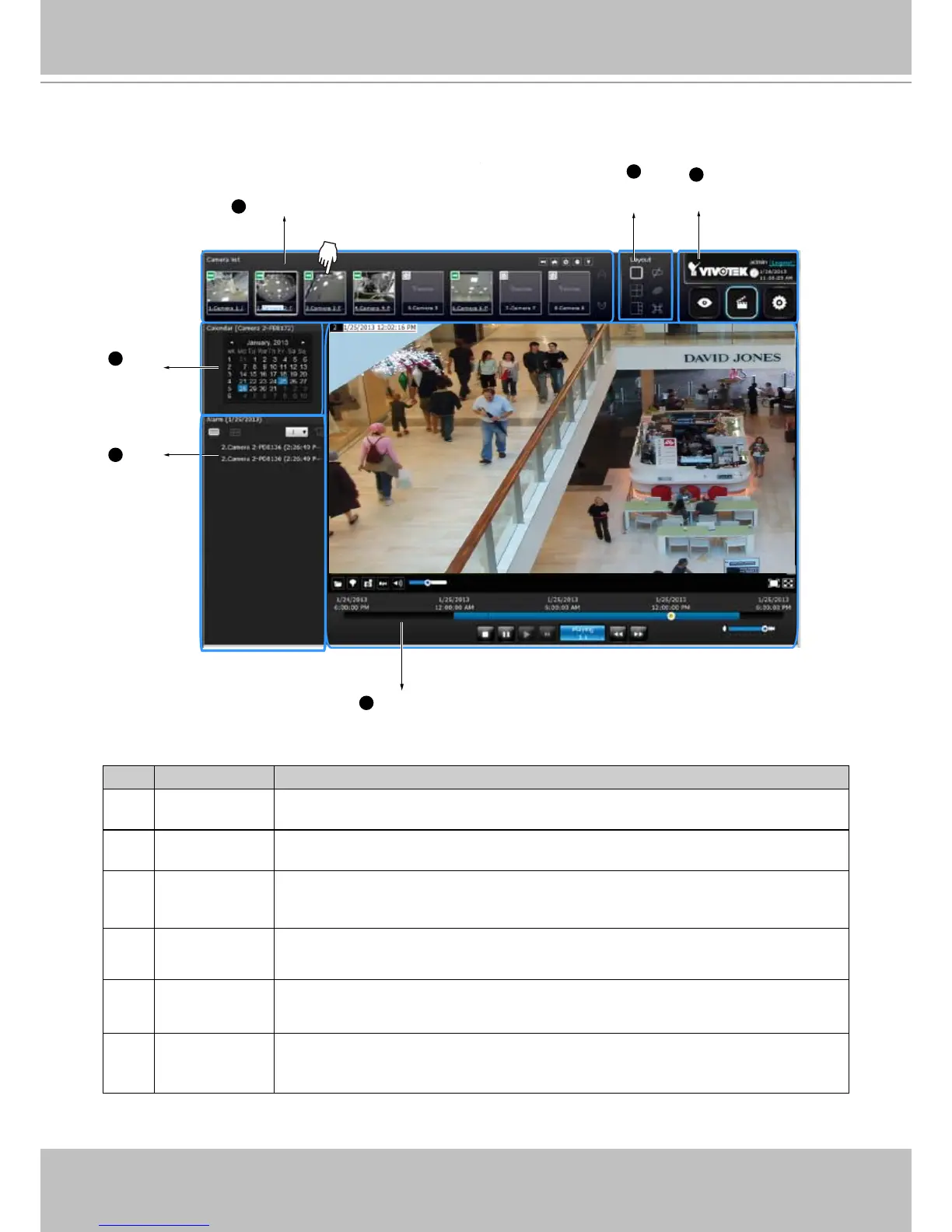

The screen elements of the Playback window are described as follows:
Item Name Description
1 Camera List Provides a glimpse of all cameras that have recorded data. Basic information is
also provided along with a screenshot.
2 Layout contents Provides functions to extend, rotate, redo the layout, and the synchronous
playback.
3 Logo & Menu Provides access to the Playback and System Settings utilities, as well as
system time and logout function.
4 Playback panel Displays the playback functions. Snapshot, bookmark, and export functions are
also available on individual view cells.
5 Alarm panel Reports alarms transmitted via cameras' DI connections or those by the Motion
Detection, etc.
6 Calendar Shows when the recording took place, and thus enables users to quickly locate
a specic part of recording in history.
